Prod Model: |
RMD series |
Name: |
Induction Bearing Heater |
Min. Diameter (mm): |
60-180 |
Power (Kw): |
15 |
Rated Voltage(V): |
380 |
Frequency(Hz): |
50 |
Extending Rod: |
Customized |
Warranty: |
1 Year |
OEM: |
Yes |
Product Description
Features:
Adopt electromagnetic induction heating mode, so that the work-piece is heated directly, heating more evenly, has constant temperature and timing two heating methods, with the characteristics of automatic heat preservation, manual/automatic demagnetization, over-heat protection and so on. Safe, convenient and quick operation.

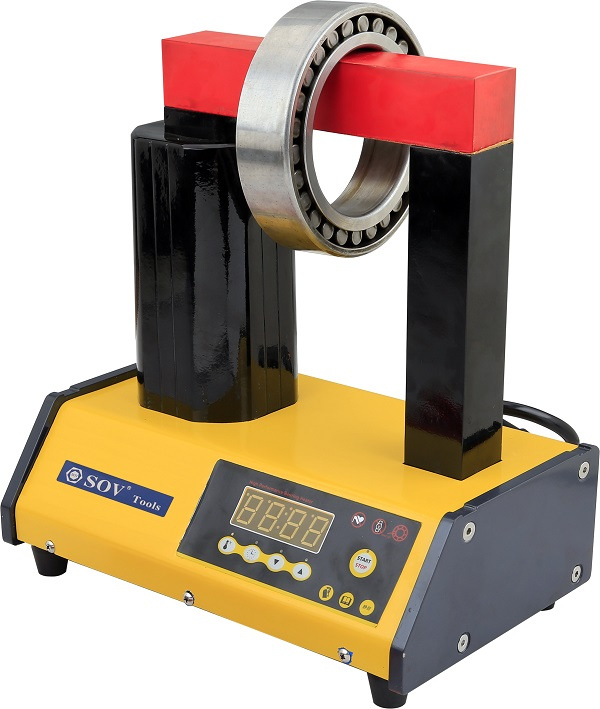

SOV-RMD-22 model:
*Compact design, strong power, microcomputer control;
*Mainly used for bearing or circle metal work-piece weighing less than 12kg, equipped with four heating rods, total weight within 16kgs.

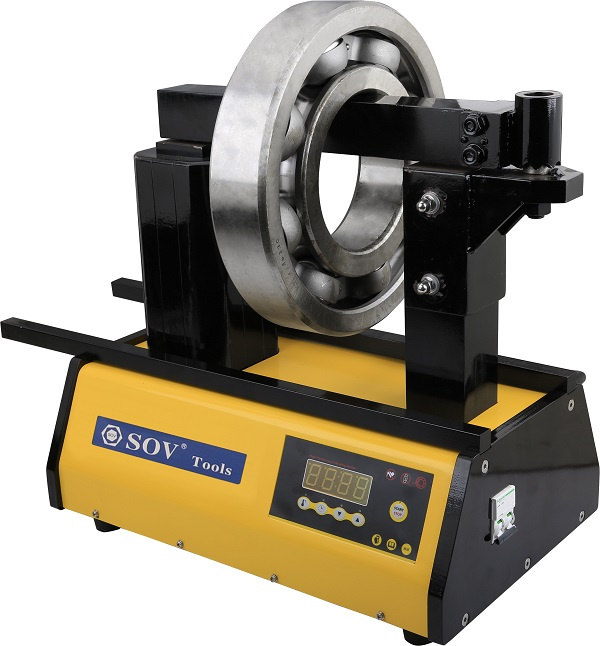

SOV-RMD-40 model:
*Small size, intelligent control, strong power,microcomputer control;
*Intelligent adjustment of output power;
*Easy to heat 25kg bearing or other circle metal parts, equipped with 4 heating rods, the total weight is within 26kg.

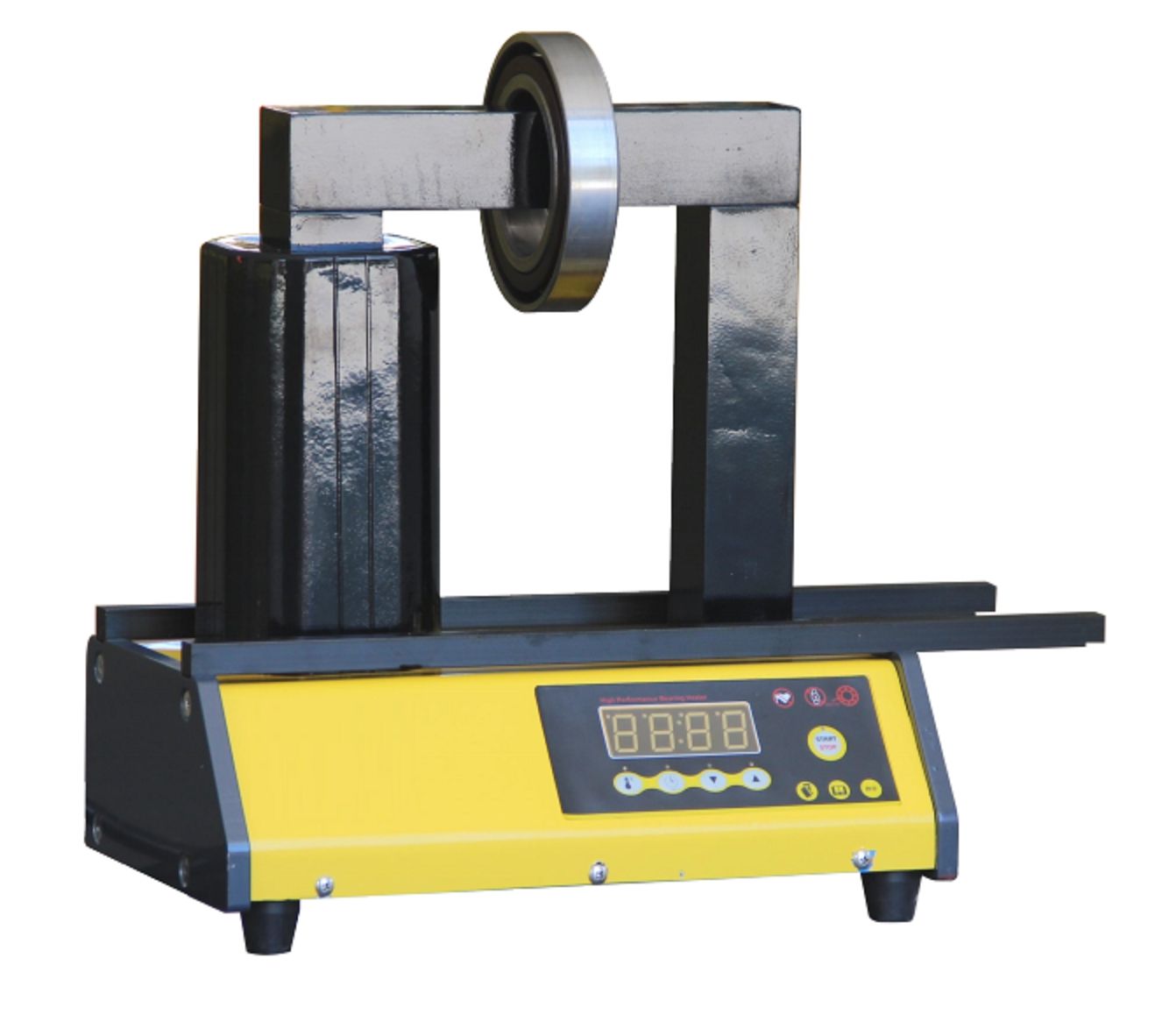

SOV-RMD-100 model:
*Rotary heating rod, intelligent control, strong power,microcomputer control;
*In the operation process, only need to operate work-piece, because the heating rods do not need to be promoted manually, therefore avoids unnecessary operation, reduces possibility of work-pieces being polluted by dust, iron chips and so on.
SOV-RMD-120 model:
*Rotary heating rod, intelligent control, movable, microcomputer control;
*Generally used in the maintenance workshop and production field. It is easily to move and can be used to heat bearing within 350kg or other circle metal.
SOV-RMD-150 model:
*Rotary heating rod, intelligent control, movable, microcomputer control;
*Generally used in the maintenance workshop and production field. It is easily to move and can be used to heat bearing within 500kg or other circle metal.
SOV-RMD-240 model:
*Rotary heating rod, movable, microcomputer control;
*Easy to move, mainly used for heating the non-standard work piece which is quite width and large inner diameter;
*The heating work piece width up to 600mm.
SOV-RMD-400 model:
*Electric moving heating rod, turbine propulsion type, microcomputer control;
*Mainly used for the heating of the outer wheel of EMU and high-speed rail, bearing cover, wind power bearing seat and so on;
*The heating work piece width up to 500mm.
SOV-RMD-600 model:
*Mainly used for the heating bearing cover, wind power bearing seat and so on;
*The width of heating work piece is up to 400mm.
SOV-RMD-800 model:
*Two points temperature control, internal and external circles to be heated at same time;
*Mainly used for heating the PMSG main bearing (combined), pipe welding preheating;
*The diameter range of heating bearing is 1000-3000mm, heat and detect inner and outer circle temperature, evenly heated and expanded.
Technical Parameters:Model | Voltage | Current | Current Frequency | Power | Dimensions | Weight | Working Range |
(V) | (A) | (HZ) | (KW) | (mm) | (kg) | Min. internal Diameter of Work-piece (mm) | Max. Diameter of Work-piece (mm) | Max. Width of Work-piece (mm) | Max. Weight of Work-piece (mm) | Max. Temperature (°) |
SOV-RMD-22 | 220 | 10 | 50/60 | 2.2 | 300×210×300 | 16.6 | Hang: 15 Level: 60 | 220 | Hang: 65 Level: 95 | Bearing: 15 Others: 9 | 240 |
SOV-RMD-40 | 220 | 18 | 50/60 | 4 | 480×270×340 | 27 | Hang: 20 Level: 120 | 480 | Hang: 130 Level: 175 | Bearing: 50 Others: 35 | 240 |
SOV-RMD-100 | Two phase 380 | 25 | 50/60 | 10 | 540×330×500 | 85 | Hang: 45 Level: 140 | 720 | Hang: 195 Level: 215 | Bearing: 150 Others: 100 | 240 |
SOV-RMD-120 | Two phase 380 | 30 | 50/60 | 12 | 920×450×930 | 180 | Hang: 45 Level: 110 | 860 | Hang: 295 Level: 305 | Bearing: 350 Others: 240 | 240 |
SOV-RMD-150 | Two phase 380 | 38 | 50/60 | 15 | 1460×700×1100 | 275 | Hang: 60 Level: 180 | 1020 | Hang: 375 Level: 315 | Bearing: 450 Others: 600 | 240 |
Model | Voltage (V) | Current Frequency (HZ) | Heating Power (KW) | Min. Internal Diameter (mm) | Max.Internal Diameter (mm) | Width of The Work-piece (mm) | Heating Rod Size (mm) |
SOV-RMD-240 | 380 | 50 | 24 | 145 | 1300 | 630 | 100×100×750 |
SOV-RMD-400 | Two phase 380 | 40 | 30 | 1500 | 500 | 150×150×800 |
SOV-RMD-600 | Two phase 380 | 60 | 200 | 1500 | 400 | 200×200×825 140×140×825 |
SOV-RMD-800 | Three phase 380 | 80 | 1000 | 3000 | 400 | / |
Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port
Our Services
One Year Warranty, repair and service for the whole life, question report response in 24 hours, and reply in 48 hours.
Company information

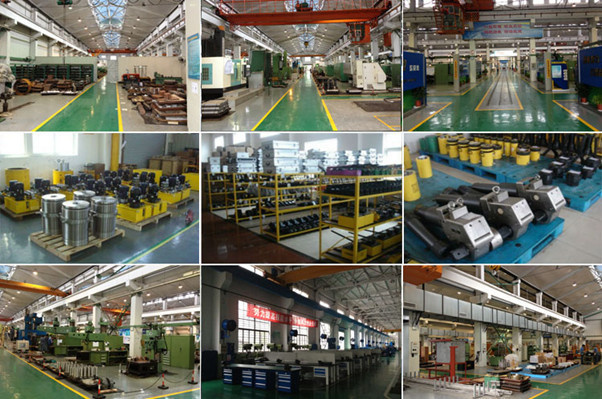

Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Main Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Main Products

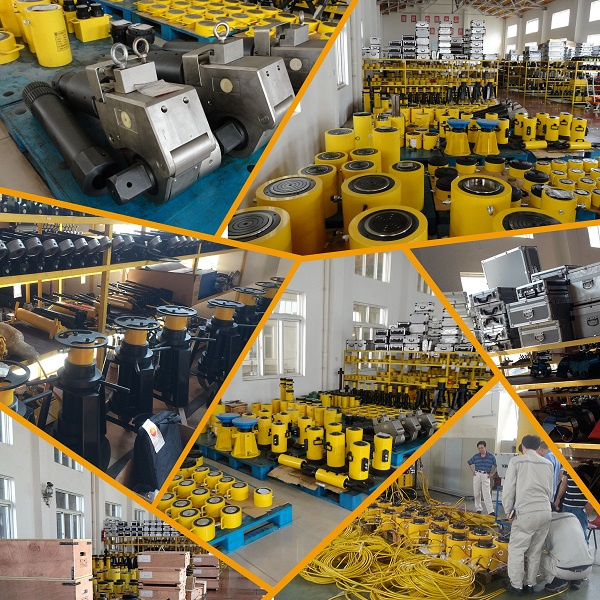

We are a manufacturer in tools, such as:
