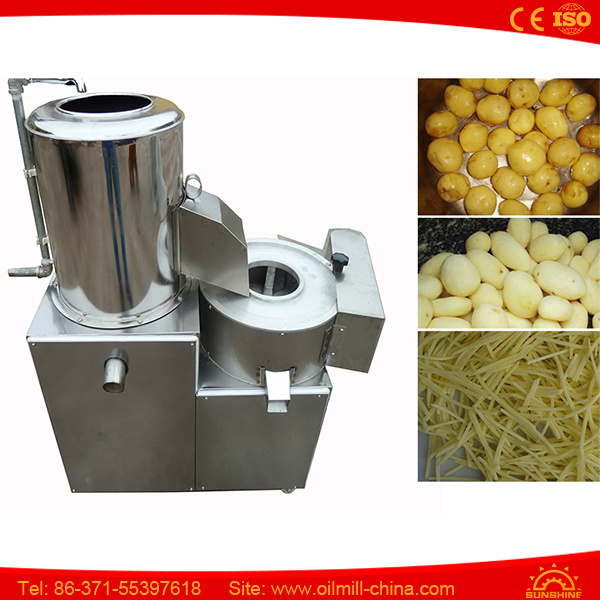

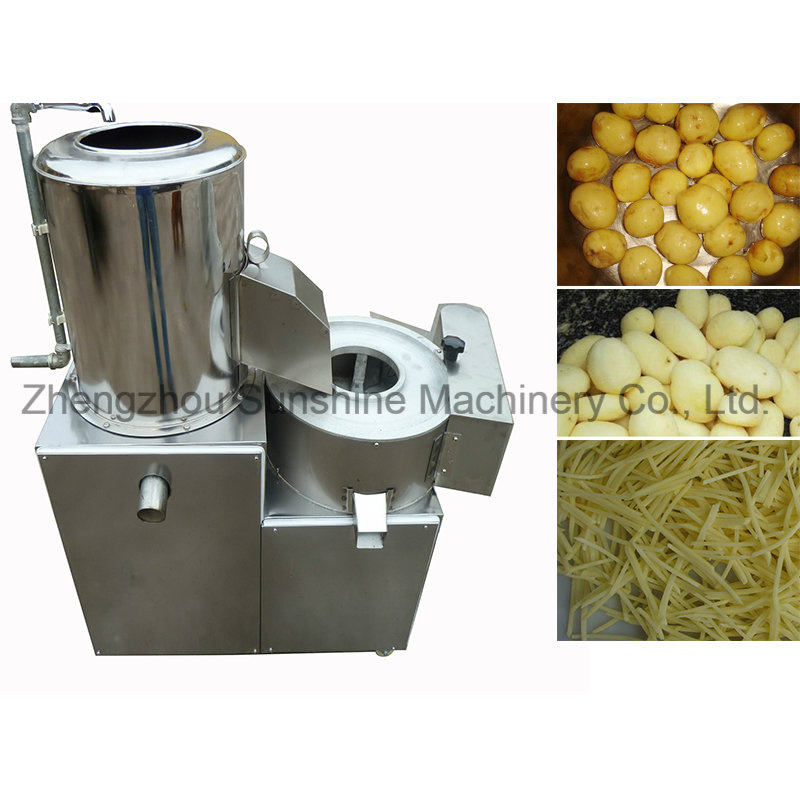

Industrial French Fries Chips Making Potato Washing Peeling Slicing Machine
| Price: |
US $ 950-1500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
TD-200 |
| Function: |
Washing, Peeling and Slicing 3 in 1 |
| Material: |
Stainless Steel |
| Working Life: |
>5 Years |
| Spare Parts Supply: |
Long Term with Good Price |
| After Sale Service: |
7*24 Hours |
| Voltage: |
220V |
| Power: |
0.75KW |
| Customized: |
Customized |
| Type: |
Washer Peeler and Slicer |
Product Description
Industrial french fries chips making potato washing peeling slicing machine
Potato washing peeling and slicing machine is a 3 in 1 machine which has the function of washing, peeling and slicing.
It is one of the most advanced potato processing machinery.
Features and Advantages
1. Easy to operate;
2. Large capacity;
3. Good product shape;
4. Made of stainless steel;
5. Can be individually washed peeling, can also be sliced separately;
6. Slice cut, strips cut; thickness can be freely adjusted;
7. The surface of final product is smooth.
Technical Data| Model | Capacity | Power | Weight | Dimensions |
| TD-200 | 200kg/h | 0.75kw/220v | 120kg | 750*500*1100mm |
| TD-400 | 400kg/h | 1.1kw/380v | 130kg | 1130x660x1130mm |
Installation and commissioning of the machine(1) Before use, please check the electrical power cord integrity, the wiring part is solid, reliable, ground is falt.
(2) Carefully check the machine before running, make sure the barrel is without any hard objects and impurities .
(3) Carefully check the barrel and washing/grinding tube turntable fixed bolts and nuts are loose and tightened with a wrench.
(4) Connected to the power supply, washing/grinding wheel inside the wheel should be in accordance with the direction of the direction, if the direction does not match, should cut off the power, the arbitrary transfer of power lines can be two.
(5) When the machine is running, should be smooth, no shock, vibration and unusual sound, found abnormal, should immediately stop checking.Maintenance and repair of the machineAll maintenance and maintenance work must be carried out after the power is turned off.
1. 1. Aeration tank should not be filled with water, and can not put the machine at high temperatures, to prevent abrasive due to failure of adhesive and fall off.
2. 2. Shredded, if there is poor material phenomenon, the Department of cutting knife blade gap is caused by impurities, should stop, remove the shredded knife knife with a brush to clean the knife gap, you can eliminate the above phenomenon.
3. 3. After each work is completed, the machine should be inside and outside the water and dirt with a cloth clean, to prevent the machine rust, affecting the service life and food hygiene.
4. 4. Machine after a period of time should be used to maintain the machine, to the bevel gear and bearing calcium-based grease, in order to extend the service life of the machine.
5. The machine uses the V-belt transmission power, the use of a period of time, because the V-belt longer and slippery, so that the speed is reduced, then open the pulley cover to observe, if the motor triangular belt longer, then adjust Motor board, adjust the bolt, if the slice V-belt longer, then remove the tight wheel bracket, adjust the wheel position, you can eliminate the above phenomenon.
