Industrial Hydraulic Hose for Construction Machinery
| Price: |
US $ 0.3-4/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
Suction Hose |
| Certification: |
ISO9001 |
| Temperature: |
-40 °c to +100 °c |
| Reinforcement: |
High Pressure Steel Wire |
| Surface: |
Smooth / Wrapped |
| Size: |
1/4"-4" |
| Layers: |
One, Two, Four, Six |
| Free Sample: |
Yes |
| OEM: |
Yes |
| Cover Color: |
Black/Red/Blue |
| Business Type: |
Manufacture |
| Material: |
Natural Rubber |
| Capability: |
Rubber Oil Hose |
| Color: |
Black |
Product Description
Industrial Hydraulic Hose for Construction MachineryTube: oil resistant synthetic rubber.
Reinforcement: high strength synthetic cord plus helix wire.
Cover: abrasion,ozone and weather resisitant synthetic rubber.
Tmperature range: -40°C to 88°C
Application: It is used for the suction & discharge of benzine,kerosene,diesel oil,heavy oil,engine oil and other mineral oil.
Technical Parameters of Industrial Hydraulic Hose for Construction Machinery
| Norminal Bore | Outer Diameter | Length
(m/roll) | Minimum bend
radius(mm) | Working Pressure | Burst Pressure |
| DN | Inch |
| Dimensions in millimeters | Bar | Bar |
| 25 | 1" | 37±0.8 | 20 | 75 | 10 | 30 |
| 32 | 11/4" | 44±1.2 | 20 | 95 | 10 | 30 |
| 38 | 11/2" | 51±1.2 | 20 | 120 | 10 | 30 |
| 51 | 2" | 65±1.2 | 20 | 150 | 10 | 30 |
| 64 | 21/2" | 79±1.5 | 20 | 250 | 10 | 30 |
| 76 | 3" | 91±1.5 | 20 | 300 | 10 | 30 |
| 102 | 4" | 121±2.0 | 20 | 500 | 10 | 30 |
| 125 | 5" | 146±2.0 | 10 | 750 | 10 | 30 |
| 152 | 6" | 175±2.0 | 10 | 960 | 10 | 30 |
| 200 | 8" | 232±2.0 | 10 | 1200 | 10 | 30 |
| 254 | 10" | 287±2.0 | 10 | 1500 | 10 | 30 |
Our Hoses List:| Wire Braid Rubber hose | 1.SAE 100R1AT/ DIN EN853 1SN |

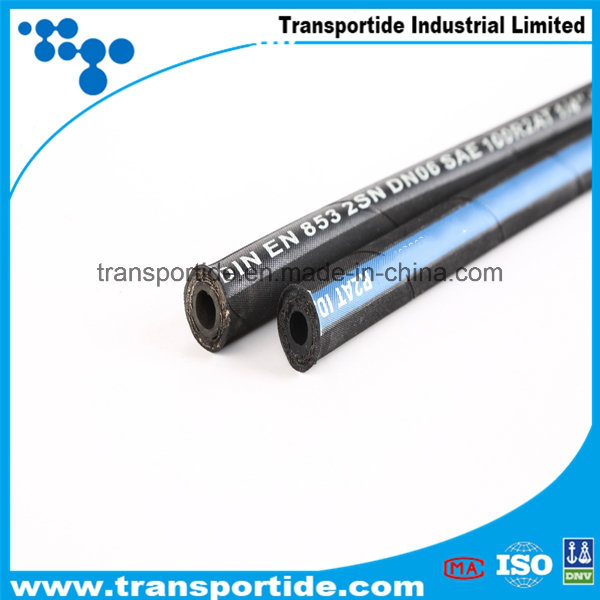

| 2.SAE 100R2AT/ DIN EN853 2SN |
| 3.SAE R5 |
| 4.SAE R16/R17 |
| WireSpiral Rubber hose | 1.DIN 20023 EN856 4SP |
| 2.DIN 20023 EN856 4SH |
| 3.SAE 100 R9 |
| 4.SAE 100 R12 |
| 5.SAE 100 R13 |
| Fibre Braid Rubber hose | 1.SAE 100R7/EN855 R7 |
| 2.SAE 100R8/EN855 R8 |
| 3.SAE 100 R3 |
| 4.SAE 100 R6 |

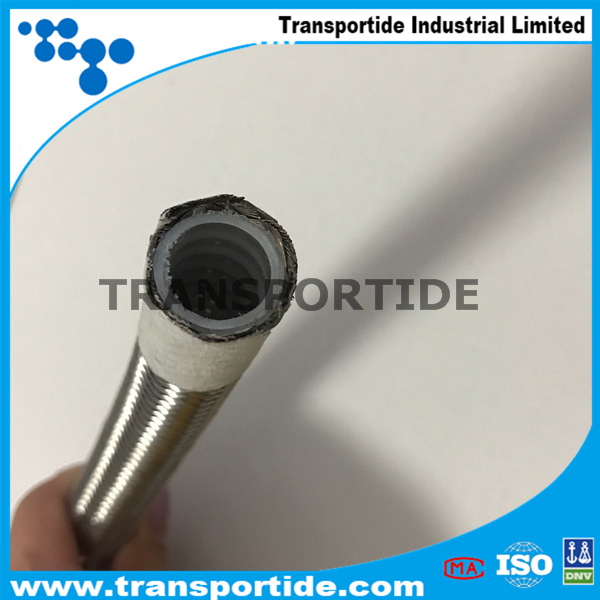

| Other Hoses | 1.SAE 100R14 (Teflon hose) |
| 2.Metal Flexible Hose |
| 3.PVC Hoses |

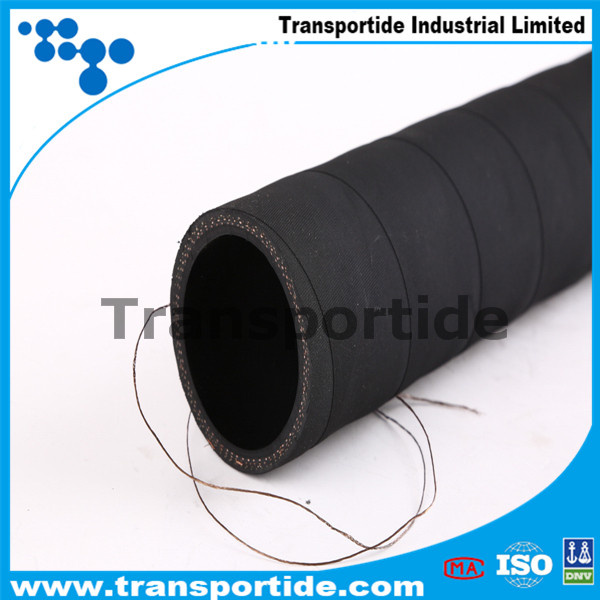

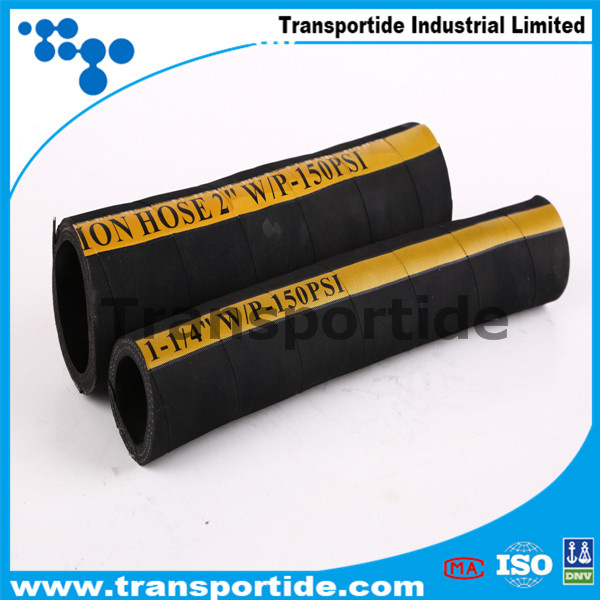

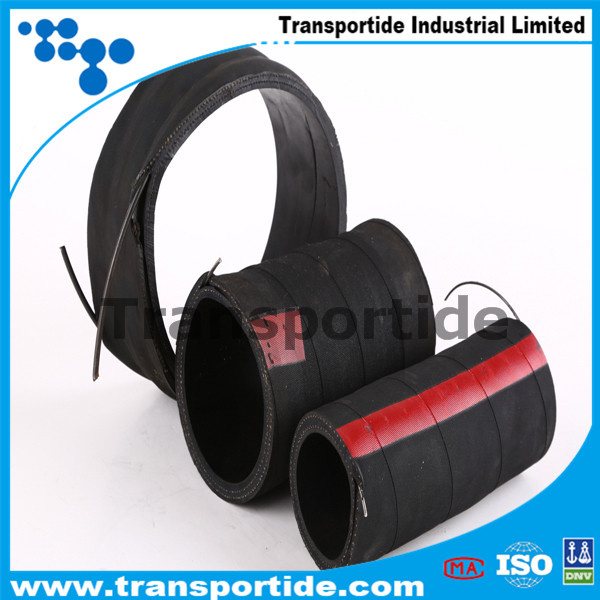

Industrial Hydraulic Hose for Construction Machinery
Industrial Hydraulic Hose for Construction Machinery
Industrial Hydraulic Hose for Construction Machinery
Industrial Hydraulic Hose for Construction Machinery
Industrial Hydraulic Hose for Construction Machinery
Industrial Hydraulic Hose for Construction Machinery
Transportide's FAQ:1. Factory Self-introduction.Transportide Industrial Limited is one of the largest manufacturers of hydraulic hoses, conveyor belts and related rubber products in the world. In 2010, Transportide has established two new production facilities for greater production capacity and further reduce the manufacturing cost. We will never stop our efforts to offer our customers with best products and best prices.2. Exporting Experience of our company.We have 27 years experience on hydraulic hose since 1989.3. Annual Capacity.Our annual production capacity is 6 million meters for hydraulic hoses.4. Special Discount and Service for distributors.Yes, Since we are focus on supply our rubber hose to Wholesalers and distributors to develop our B2B business.We will provide the most competitive price and best service to support our wholesale customers. 5. Quality Guarantee.We have strict QC process from raw material to production,then QC before shipment.6. Samples Checking.The samples are free. Express cost is bear by customers .7. Delivery Time.For a 20feet container is about 20 days. For a 40feet container is about 35 days. 8. About MOQ (minimum order quantity).At least 1000m for each size.9. Branding on the hoses.According to customers' requestments.For any inquiries,please contact us directly !
Transportide Industrial Limited is the leading manufacturer of hydraulic rubber hose, conveyor belt, PVC hose, suction rubber hose and rubber sealing and fittings in China. Our factory was founded in 1989 and is located in Zaozhuang city of Shandong province. Now we have five production facilities, four distribution warehouses, Our products include seventy-five categories and more than one thousand types and over 450 employees.
Innovation has been the tradition of company. Our R&D department has rich experience in QC and PC system and our rigorous Quality Control System has been approved to ISO9001. Continuous improvement have been made to achieve World Class Quality systems and procedures. We passed through British DGMS and Australia DMR for conveyor belts. Rubber hose and sealing are manufactured according to GB, SAE and DIN standard, The commitment to quality ensures full traceability of all our products and total customer satisfaction in the products and services provided by Transportide.
Quality Assurance has allowed us to further grow the business during past 20 years, we devote ourselves to serving the key projects of the main industies such as metallurgy, coal, electric power, building materials, transportation, etc., and our customers spread in USA, South America, Southeast Asia, Japan and Europe, and twenty-eight provinces in China.
Advantages:
1. Total quality control, with Burst Pressure Tester, Impulse Pressure Tester, Tessiler Tester, Vulcanizer for testing etc.
2. High quality materials, Reasonable prices, and Prompt delivery.
3. Golden service.
We are honest, we are professional.
Hope to be your partner based on Win-Win!
