| Price: | US $ 60-90/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T,Western Union |
| Firmware Version: | Openwrt |
|---|---|
| GPS: | GPS Optional |
| CPU: | Mtk7628 |
| Type: | Wireless |
| Network Site: | Intermediate Node Routers |
| Transfer Rate: | 300Mbps |
| Firewall: | Firewall |
| Ports: | 24 |
| Port Structure: | Modular |
| Application: | SOHO |
| Performance: | Line-Rate Router |
| Architecture: | Multi Bus Mmulti CPU |
| Network: | All |

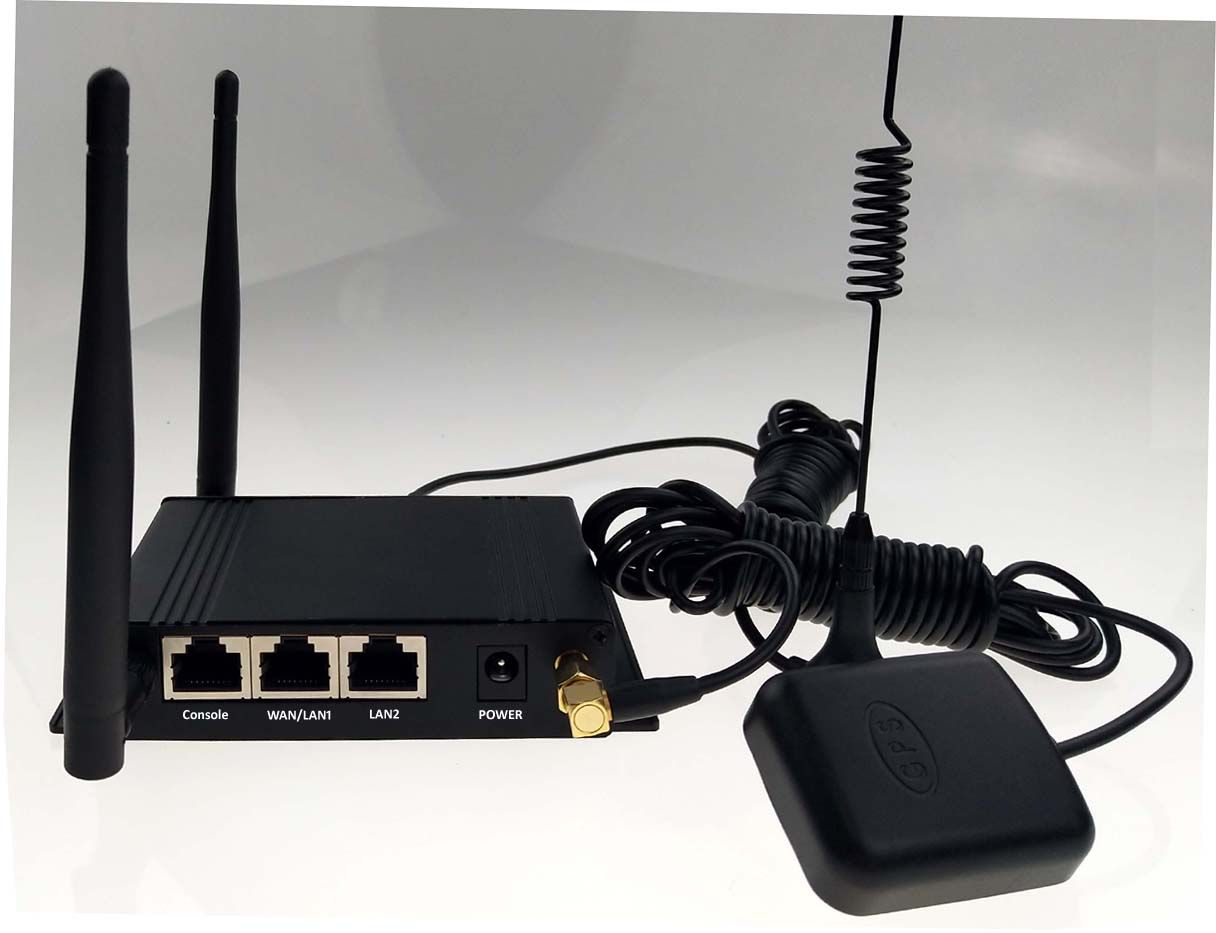

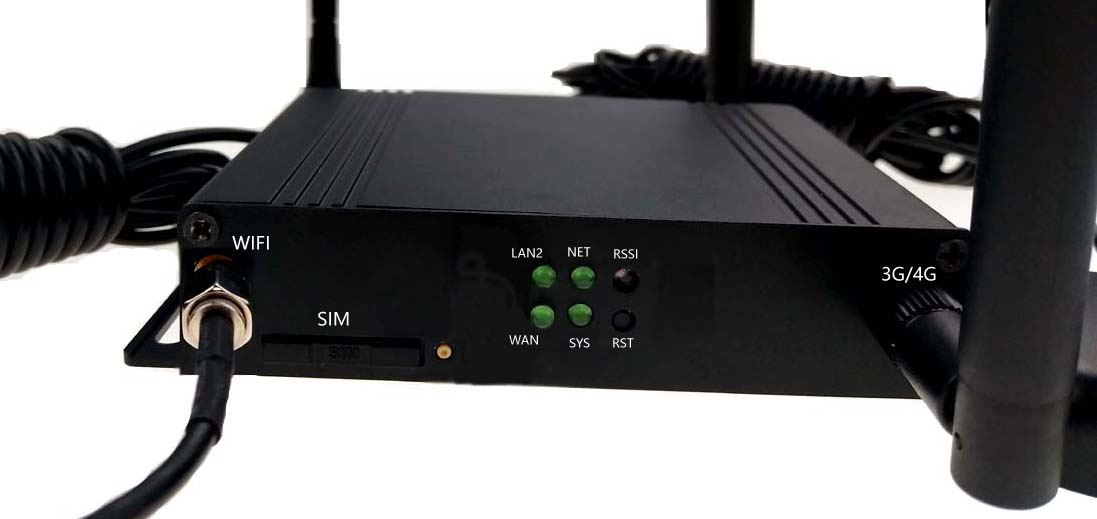

HDRM100 4G LTE Router
• 3G/4G LTE data transmission;
• Active auto connect;
• Embedded watchdog , Auto recovery;
• 2*2 4G/WIFI MIMO antenna;
• Integrate 3G/4G LTE,WIFI,GPS feature;
• WIFI High quality performance without congestion;
• 1 WAN/1 LAN or 2 LAN ports, One console port;
• With SIM card slot;
• Wide power supply: +5V~+48V/1A
• Remote management platform;
• Firmware version: Linux or Openwrt;
• Small size dimension:115mm*73mm*20mm
Product specification | |
Hardware interface | 2*LAN 10/100Mbps, Console port(Be used as DTU, is available to connect serial devices) |
|
|
RF connectors | SMA connector , 4G(female),WIFI(male),the characteristic impedance 50Ω |
Security Encryption | Support WEP,WPA,WPA2 encryption ways |
Protocol | PPTP,L2TP,IPSEC VPN,TCP,UDP, DHCP,HTTP,DDNS,TR-069,GRE, HTTPS, SSH,Open VPN,SNMP |
LED Indicator | "SYS", "Net", "WAN", "LAN",RSSI |
SIM/UIM | Standard draw card interface, support 1.8V/3V SIM/UIM card, built-in ESD protection |
Key button | Reset |
Standard Power | DC 12V/1A |
Power Supply | DC 5~48V |
Working current | 2A (Max Current) |
Temperature | Operating Temperature -40~+75ºC |
Storage Temperature -45~+85ºC | |
Environment humidty | 95% |
Case | Aluminum Alloy Shell |
Size | 115mm*73mm*20mm |
Weight | 160g |
2G/3G/4G Frequency bands | Version C LTE TDD. B41 |
Item | Product specification |
CPU | MTK7628 |
MEMORY | FLASH 16MByte, DDR2 64MByte |
Embedded system | Linux or Openwrt |
Network | FDD LTE,TDD LTE,WCDMA,EVDO,GPRS,GSM,CDMA 1X |
WIFI | WIFI 802.11 b/g/n, 300Mbps |
Data rate | 4g: CAT 3, DL 100bps , UL 50Mbps ( Or CAT 4 DL 150Mbps , UL 50Mbps) |
WCDMA HSPA+: DL 42Mbps, UL 5.76Mbps | |
GPRS DL/UL 85.6Kbps | |
WIFI Tx Power | 14 dBm(11g),17 dBm(11b),14dBm(11n) |
WIFI Rx Sensitivity | <-70 dBm@54Mpbs |
2G/3G/4G Transmitting Power | GSM/GPRS: |
GPS | GPS/GLONASS,Protocol: NMEA |
WIFI Frequency | 2.4G |

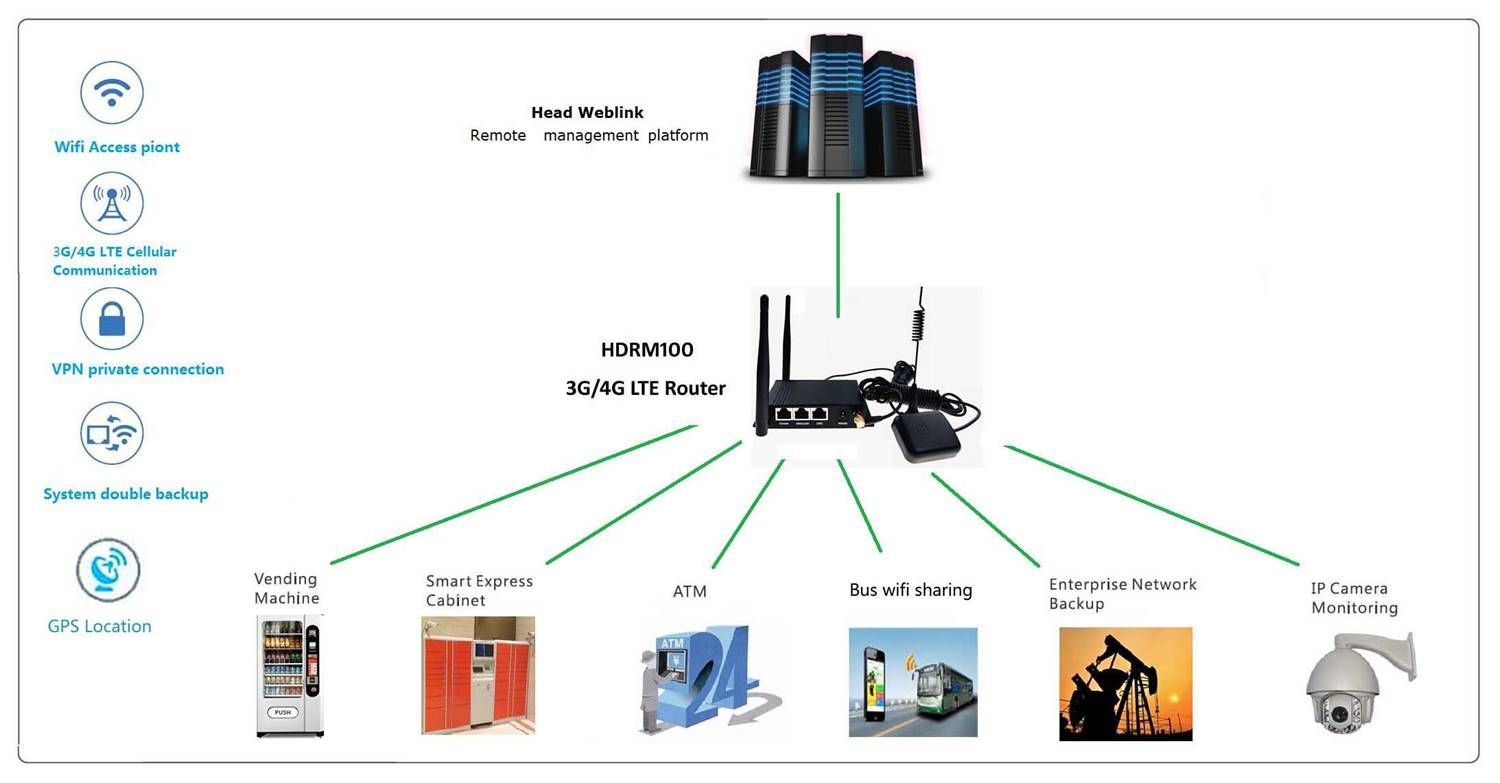

Application"
