| Price: | US $ 0.2-5/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Piece |
| Pay Type: | T/T,Western Union,Paypal |

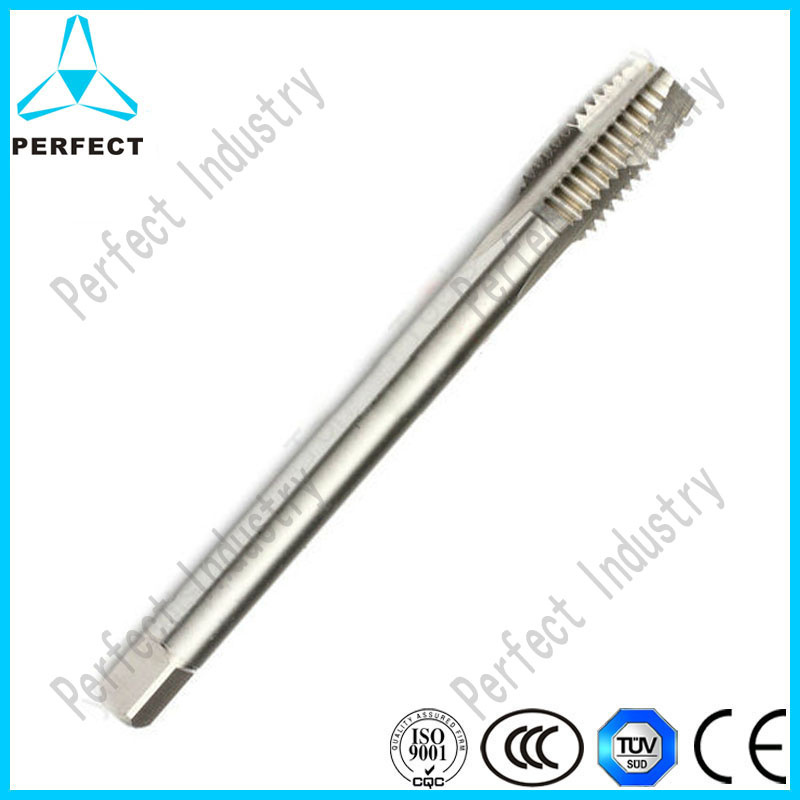

| Prod Model: | DIN374 HSS Spiral Pointed Machine Tap |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Perfect |
| Type: | Machine Taps |
| Raw Material: | Hsse,Hssv,Cpm |
| Surface Treatment: | Tin,Ticn,Dlc |
| Unit Packing: | Plastic Box |
| Type Of Tap: | Spiral Point Taps |
| Material: | High-speed Steel |
| Standard: | American |
| Application: | Motorize |
Specification:
| 1. Standard: | DIN374(Metric Size/UNF), Fine Teeth Spiral Pointed |
| 2. Material: | HSS 4241(W4Mo2Cr4V), HSS 4341(W4Mo3Cr4V), |
| HSS 6542(W6Mo5Cr4V2), M35 (W6Mo5Cr4V2Co5) | |
| 3. Hardness: | HSS4241: HRC59-61, HSS4341:HRC63-64, HSS 6542:64-65, HSS M35:HRC 66-67 |

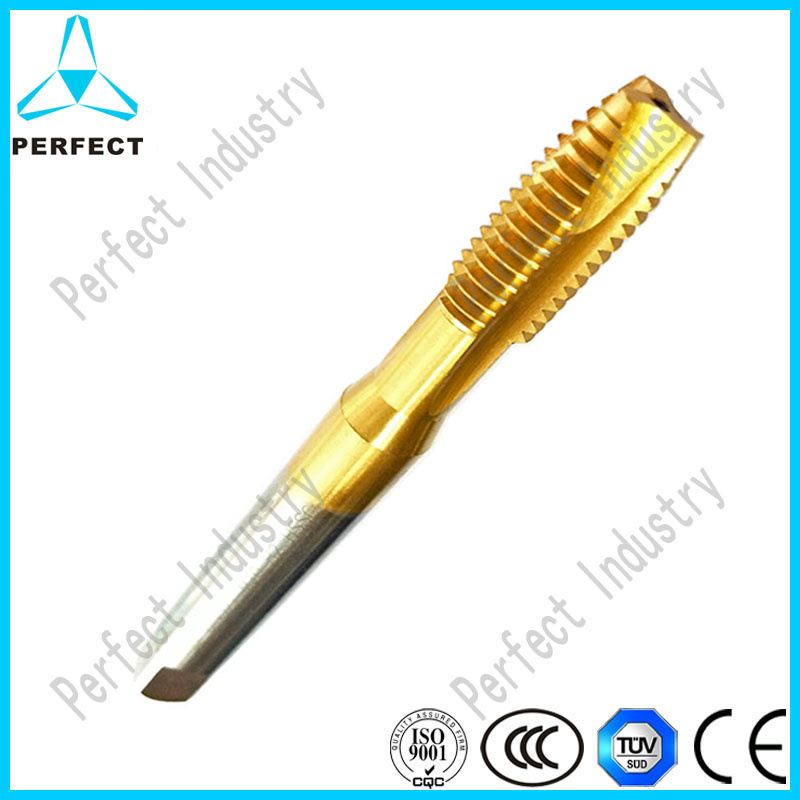

4. Surface finishing: | Bright finishing;Tin-coated; or customization |
| 5.Application: | For drilling internal threads. Spiral Pointed taps features: Apply to thread through hole.(Hole depth can reach to 3d to 4d) |
6. Size:M3*0.35 To M36*1.5
1/4-28"UNF To 1-1/2"-12UNF
7.Thread standard type:
M: Metric thread
UNC:Unity coarse tooth thread
UNF:Unity fine tooth thread
Taps and dies are cutting tools used to create screw threads,which is called threading.a tap is used to cut the female portion of the mating pair(e.g.a nut)a die is used to cut the male portion of the mating pair(e.g. a bolt).the process of the cutting threads using a tap is called tapping,whereas the process using a die is called threading.both tools can be used to clean up a thread,.which is called chasing.
The quality of HSS tools are basically decided by HSS raw material and heat treatment. We can
keep a strict control of these procedure.
