| Price: | US $ 1000-10000/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | INI |
|---|---|
| Model Number: | Isyj Series Recovery Winch |
| Capacity: | 30 Ton |
| Third Party Inspection: | Available |
| Clutch: | Manual or Hydraulic |
| Power Source: | Hydraulic |
| Brand Name: | Ini |
| Place Of Origin: | Zhejiang, China (Mainland) |
| Packaging Details: | Standard Seaworthy Packing |
| HS Code: | 84253990 |
| Pull Direction: | Backward |
| Type: | Electric Winch |
| Driven Type: | Hydraulic |
| Carrying Capacity: | Special Weight Level |
| Tonnage: | 30T |
| Running Mode: | Haulage |
| Feature: | Explosion-Proof |
| Standard: | Nonstandard |
The hydraulic motor, planetary gearbox and brake are installed and hide in the drum of the winch, so the overall length is kept to the minimum. The compact design is very suitable for applications where the installing room is limited.
1. Compact and elegant design
2. High starting& working efficiency
3. Reliable operation with little noise
4. Low maintenance relieves your anxiety
5. Cost saving
6. A range of accessories such as rope guides and pressure rollers are available on request.

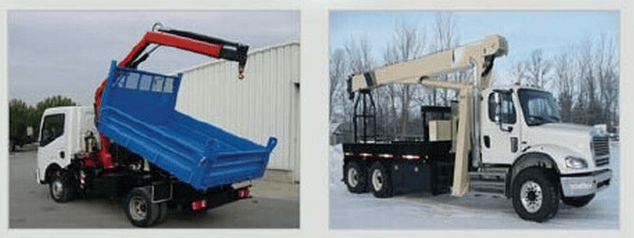

They're widely used in construction equipments, mining industry, deck machinery and truck cranes.
They're widely used in construction equipments, mining industry, deck machinery, truck crane and other light, medium and heavy duty applications.

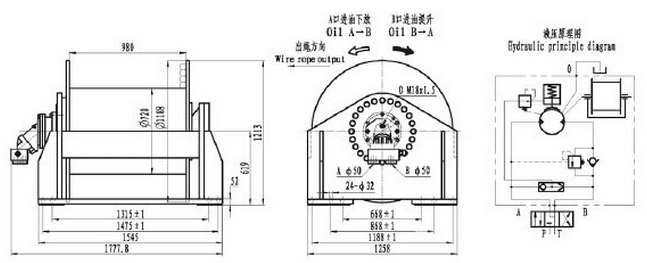

Outline dimension
240,000 m3, 700 employees, ISO9001:2008 & ISO14001:2004 certified.
Established in 1996, we're one of leading manufacturers in China who are specialized in designing and manufacturing hydraulic winches, hydraulic motors, hydraulic slewing drives, planetary gearboxes, travel motors and wheel motors, hydraulic capstans, hydraulic power units, and hydraulic pumps.
With strong research and development capability, we have achieved 14 invention patents and 30 practical innovation patents.
Meanwhile, we have more than 250 sets of advanced production and inspection equipment to ensure the quality of
our products.
Our products have been widely used in Offshore Application, Agriculture Industry, Fishing Equipment, Construction Machinery,
Petroleum Industry, Coal Mining, Geological Prospection, Marine Application, Metallurgical Engineering, Light Industry,
as well as Environmental Protection and other industries.
As a trustworthy manufacturer and supplier, we have a dominating market share in China, and we also enjoy an increasing
market share worldwide. Our products have been exported to:
-Europe: UK, Austria, Netherlands, Germany, Sweden
-North America: USA, Canada
-South America: Brazil, Argentina
-Russia, Australia,Turkey, Southeast Asia, Middle East, India, Korea and other countries in the world.
| Rated line pull (1st layer) | KN / kgs / lbs | 39/ 4000 / 9000 |
| Motor displacement | ml/rev | 80 |
| Oil flow | L/min | 15-60 |
| Oil pressure | MPa | 14 |
| Gear ratio | 23:1 | |
| Wire rope (diameter x length) | Φ11mm x 25metre | |
| Drum dimensions (diameter x length) | mm | Φ88 xΦ192 x 200 |
| Mounting dimension and bolts | 300mm x 280mm 8-M12 | |
| Overall dimension | mm | 516(524) x 316(376) x 237 |
| Net weight (with wire rope and hook) | kg | 48 |
| Line pull (KN) | Oil pressure (Mpa) | Oil flow (L/min) | Speed (m/min) |
| 0 | 3.5 | 15 | 2.5 |
| 27 | 8.5 | 25 | 4.0 |
| 36 | 11.0 | 40 | 6.5 |
| 39 | 14.0 | 50 | 8.0 |
| 49 | 15.0 | 60 | 9.5 |
| Layer of cable | Line pull (KN) | Speed (m/min) | Wire rope capacity |
| 1 | 39 | 9.5 | 5 |
| 2 | 34 | 11.8 | 12 |
| 3 | 28 | 13.9 | 19 |
| 4 | 25 | 16.0 | 25 |
