| Price: | US $ 1000-1200cavity |
|---|---|
| Min Order: | 1cavity |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | DEG-32P |
|---|---|

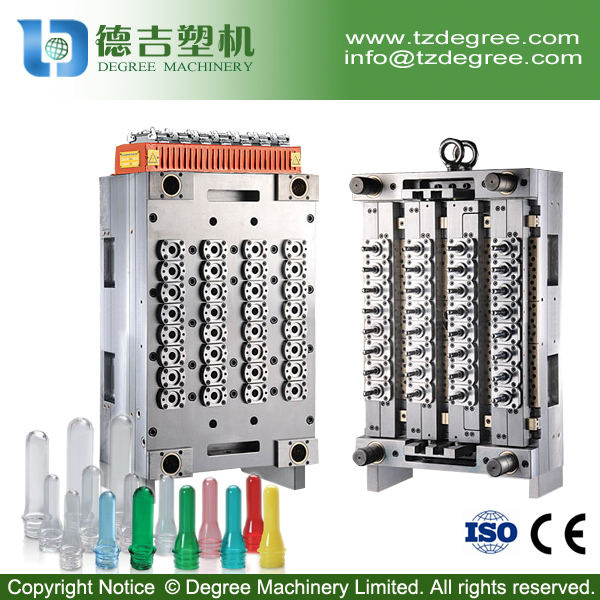

| Mould Type: | Preform Mold for Plastic Bottle Machine |

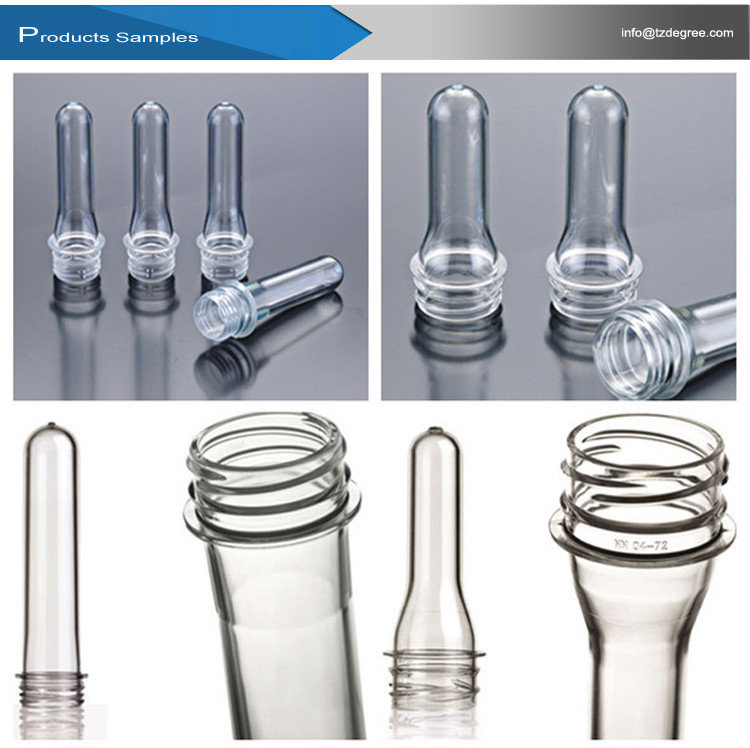

| Preform Weight: | 9-50gr |
| Neck Size: | 20-38mm |
| Mould Material: | P20/718/2316/S136 Steel |
| Cycle Time: | 20-30s |
| Runner System: | Hot Runner, Pin-Valve Gate |
| Tooling Machine: | CNC/EDM/Engraving/Wire-Cutting |
| Mould Life: | 3,000,000 Shots |
| Shaping Mode: | Injection Mould |
| Process Combination Type: | Compound Die |
| Installation: | Fixed |
| Application: | Plastic Bottles for Water, Juice, Cola etc |
| Standard: | Eroupe |
Mould Specification:
No. of cavity | 12cavity | 16cavity | 24cavity | 32cavity | 48cavity |
18g(cm) | 62*38*43 | 79*38*43 | 88*46*45 | 86*68*48 | 105*68*55 |
weight(kg) | 630 | 810 | 1150 | 1750 | 2450 |
28g(cm | 62*38*45 | 79*38*45 | 88*46*48 | 86*68*52 | 105*68*58 |
weight(kg) | 660 | 850 | 1250 | 1900 | 2600 |
40g(cm) | 62*38*48 | 79*38*48 | 88*46*50 | 86*68*55 | 105*68*62 |
weight(kg) | 690 | 890 | 1350 | 2000 | 2750 |
Note: The thickness and weight of the pet bottle preform mould making are in accordance with the preforms, these measurements will change in case the products are improved. | |||||
Mould Features:

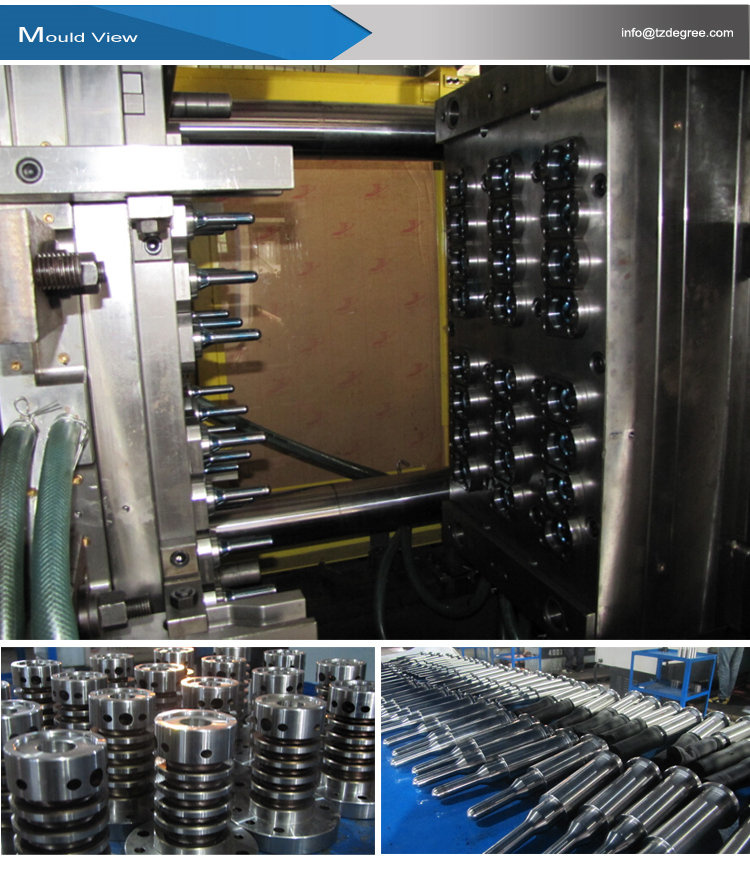

Mould Structure:
a). Two-step double taper locating technology;
b).Self-locking system for each single cavity;
c).off-center adjustment system for perform thickness error<0.05mm;
d).International Screw thread standard to adopt for no cutting gate;
e).Cooling system : independent cooling system for each single core ,cavity and valve gate.
Mould Material:
a).Cavity and core: stainless steel 2316 with fine polishing, high hardness to get mold's high precision and good quality
b).Mechanical treatment cavity and core to prolong service life;
c).Nitriding treatment with neck screw, with fitly operation to guarantee mould life over 2 million shots.
Injection Gate System:
a). Pin-valve gate, pneumatic-driving the nozzle pin simultaneous high speed open and close action;
b).Able to control the injection hole open and close actions on each cavity;
c).reliable seal function, smooth moving, low thermal expansion rate ,long using life and also saves electric energy.

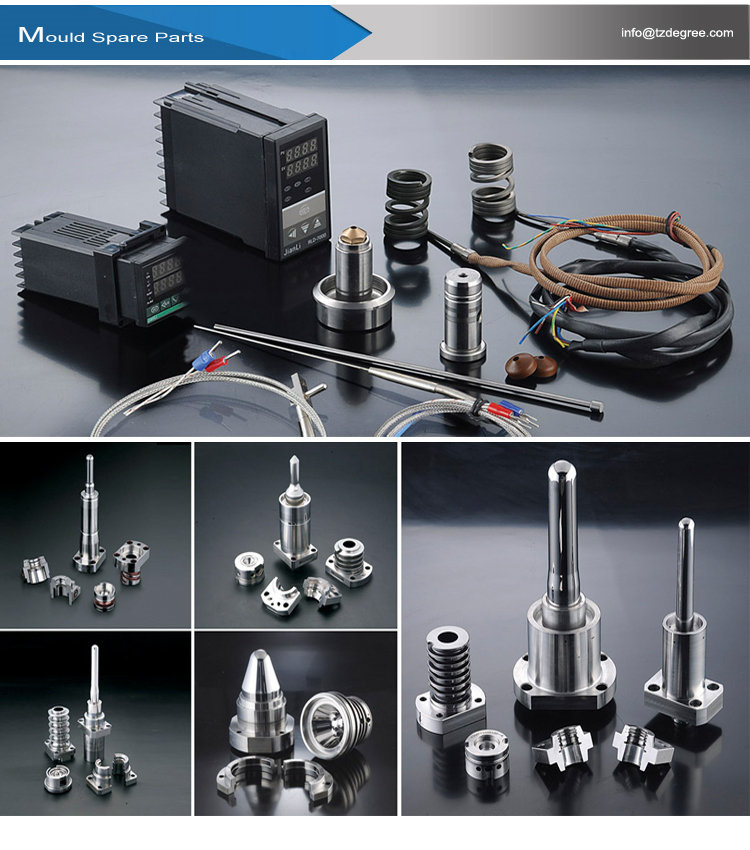

Hot Runner System:
a).ideal and prompt heating effect for preform production;
b).cavity with lower injection pressure to reduce wear and tear of mould parts;
c).double heating system separate temperature control mode;
d).the heat bar are used to heat the needle valve pet bottle preform mould mainfold plate;
e).small heaters supply the heating temperature for cavity nozzle continuously.
Why choose us?
1.We enforce the CE, ISO, SGS quality management system strictly. We have the falutless quality control program, From product design, raw material selection, spare parts inspection, To machanical product inspection, skilled workers, ex-factory inspection , packaging ways, etc.
2. We provide the whole preform mold for plastic bottle machine production line machines and experienced to make the mineral water production line turnkey project.
3. Our chief engineer and the main technical personnel have above 10 years experience, a number of
technologies are national patents;
4. We promise 1 year warranty for all products, long-term technical support;
5. We always put customers' view in the first place , create value for the customer's business.
