| Price: | US $ 20/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: | A-2546B |
|---|---|
| Name: | Crimping Tools a-2546b Mc4 |
| Usage: | Use with Solar System |
| Capacity: | 2.5/4.0/6.0mm2 |
| AWG: | 14-10AWG |
| Length: | 270mm |
| Packing Type: | Standard Export Packing |
| Color: | Blue |
| Weight: | 1.3kg |
| Warranty: | 2 Years |
| Types: | Crimping Pliers |
| Function: | Wire Stripping |
| Shaft Style: | Straight |
| Structure: | Half-Box Joint |
| Brand: | Feeo |
| Performance: | Crimping |

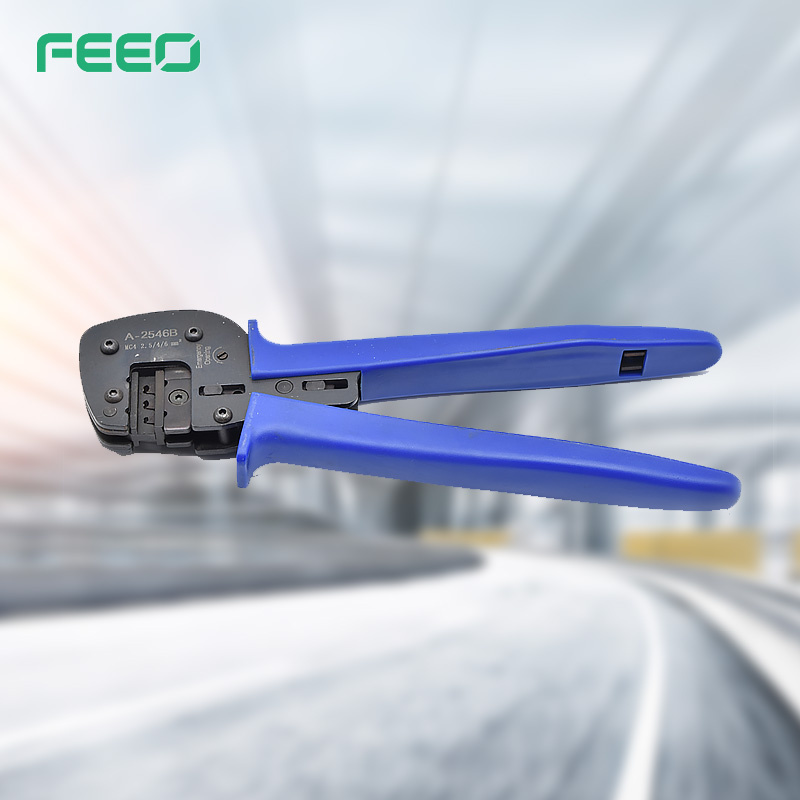

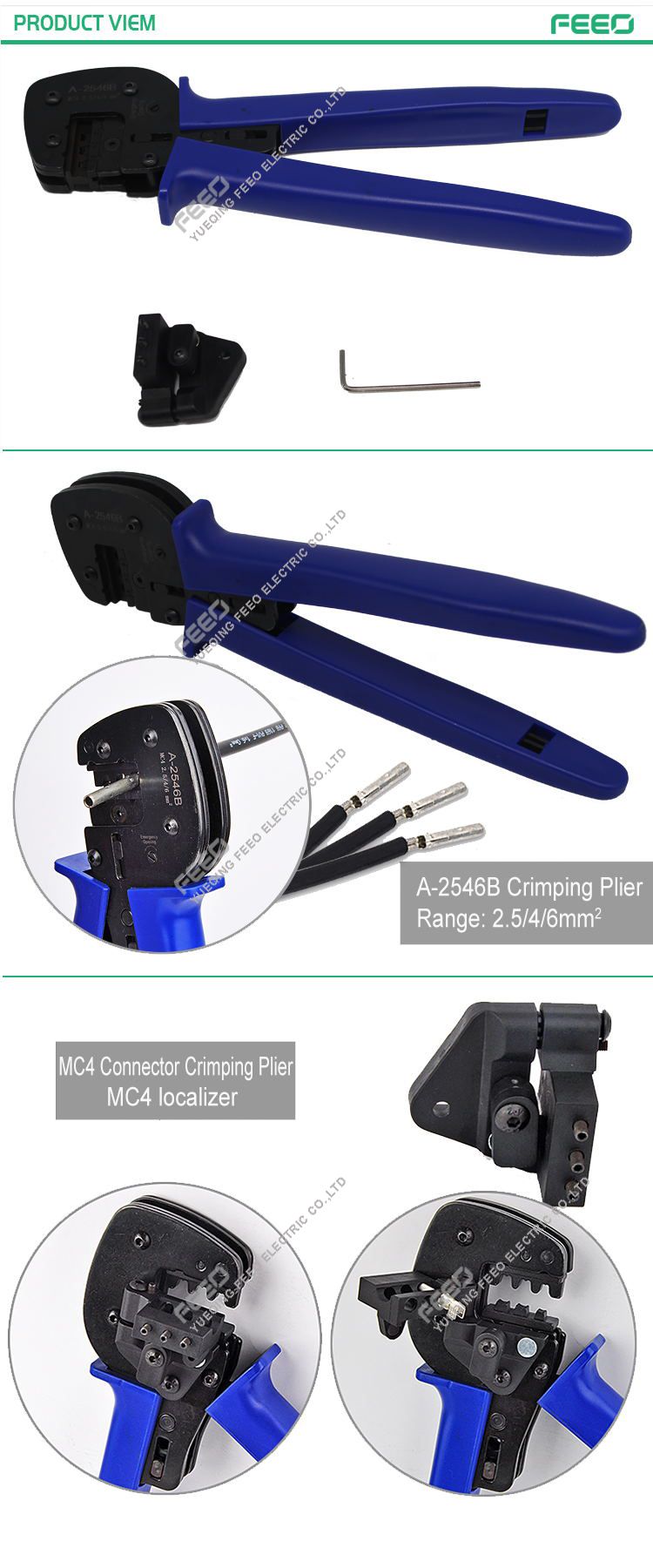

insulated terminals copper Crimping tools A-2546B MC4
Product Description:

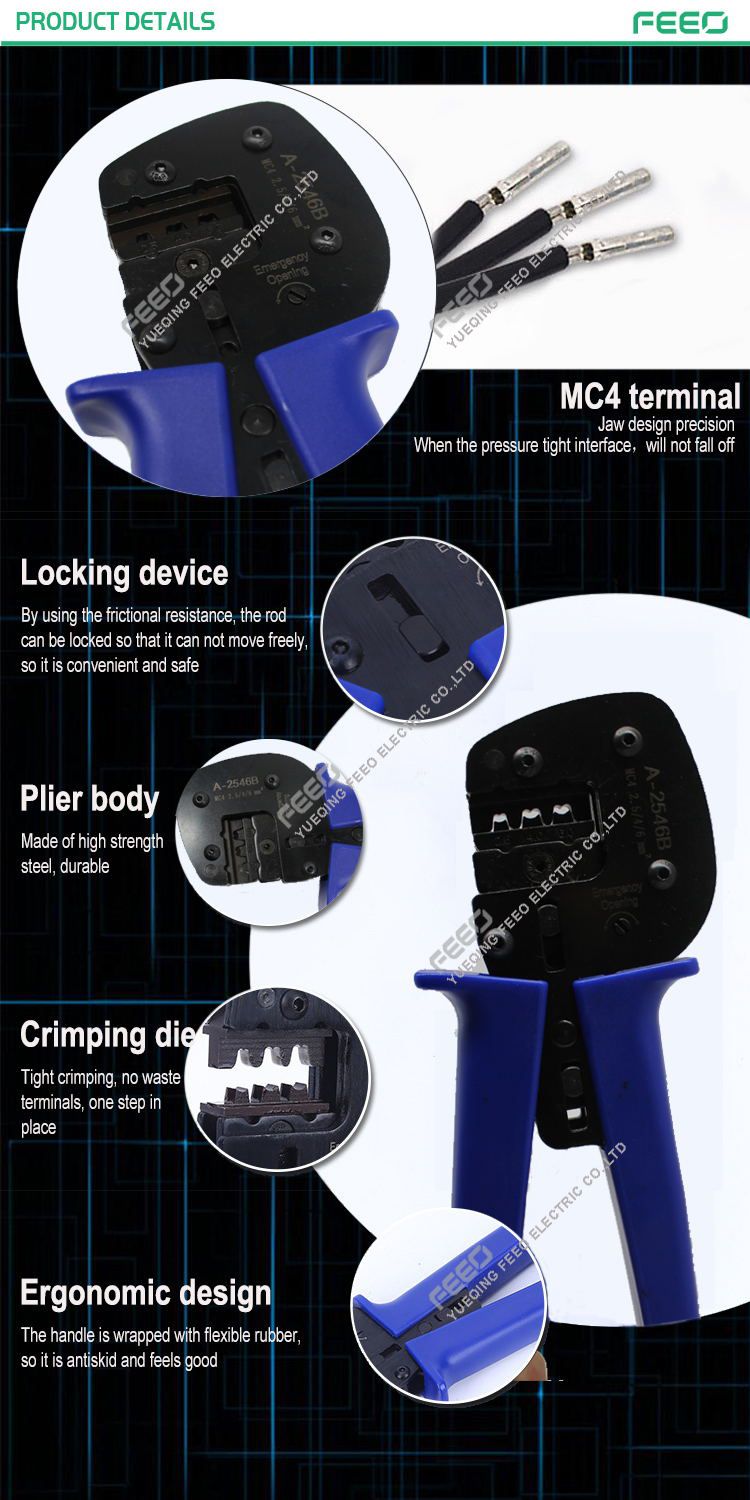

Crimping tools Features:
1.The new PV Crimping Pliers precision pressure line module locking (self locking and releasing mechanism ) and the overall design;
2.In the the repeated pressure line to maintain a higher standard of quality pressure line;
3.The excellent lever transmission design, isobar larger cross-section of the wire, the more labor-saving;
4.Ergonomic design;
5.The positioning device can be fixed in the jaw , to ensure precise positioning of the terminal of the pressure line;
6.Pressure line film and locator under the pressure line terminal selected

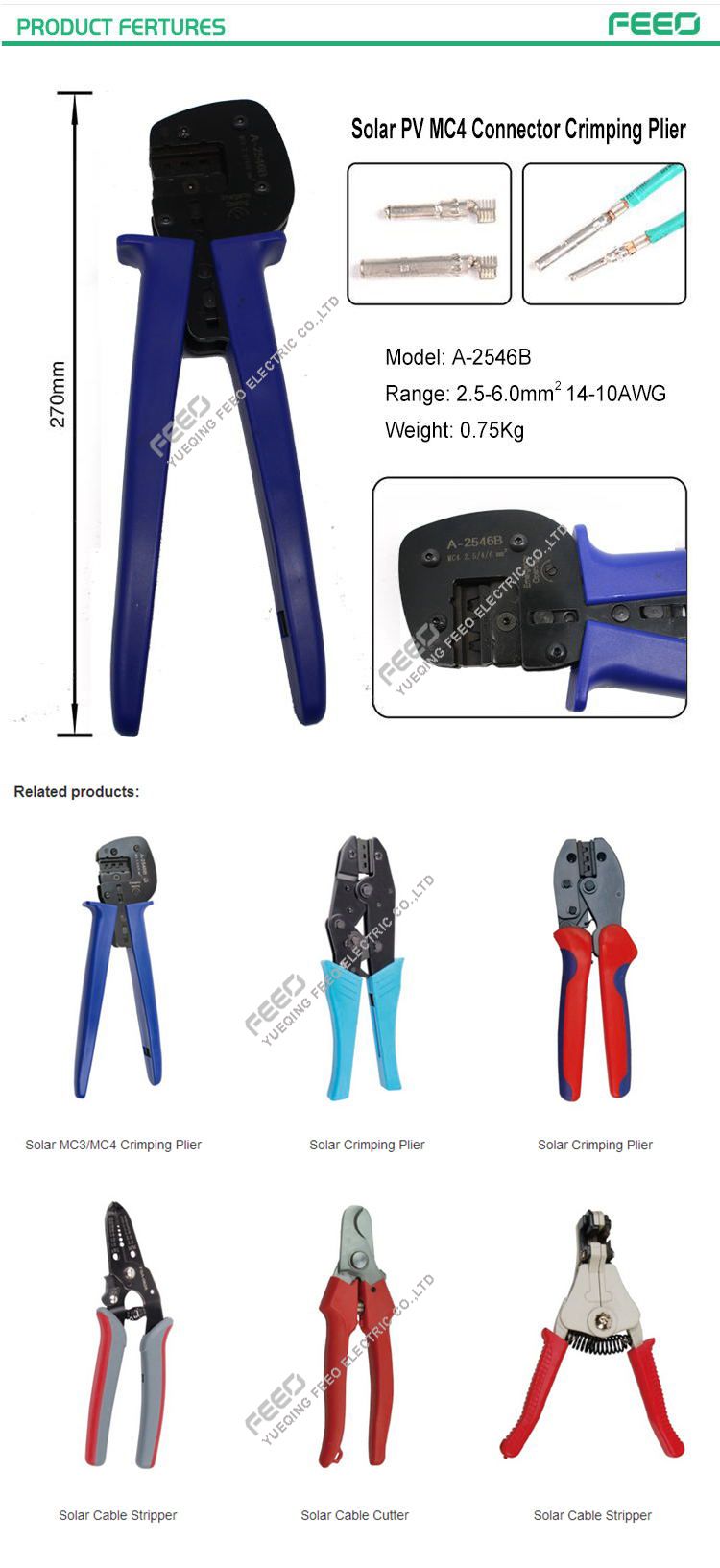

Crimping tools Parameters:
| Type | Capacity | AWG | Length | Weight |
| A-2546B(MC4) | 2.5/4.0/6.0mm 2 | 14-10AWG | 270mm | 0.75kg |
| A-2546B-4(MC3) | 2.5/4.0/6.0mm 2 | 14-10AWG | 270mm | 0.75kg |
| A-2546B-3 | 4.0/6.0mm 2 | 12-10AWG | 270mm | 0.75kg |
1.Standard export box package
2.Delivery Time: 10-15 days for batch goods.
1.Shipment port:SHANGHAI/NINGBO
2.By Air or by Sea for batch goods,Airport/ Port receiving;
3.Customers specifying freight forwarders or negotiable shipping methods!
Our Services:
1.One to one service,Feedback within 24 hours
2.Design for special packing, Products printing and logo OEM
3.Find the solution for any problems actively
Company Information:
is one of the leading manufactures and exporters in the field of solar PV products withmanufacturing facilities in Mainland China. We are specialized of DC MCB, DC SPD, DC FUSE, DC ISOLATOR, MC4.
Q: If I'm interested in your crimping plier when I can receive your quotation and detail information after send the enquiry?
A: All your enquiry will be replied in 24hours.
Q: Can I get a sample before the order because I really don't how is your crimping plier quality?
A: Of course!We also think sample order is the best way to build the trust.
Q: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A: Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q: I need your price list of all your products, do you have a price list?
A: We do not have a price list of all of our products. Because we have so many items, and it is impossible to mark all of their price on a list. And the price are always changing because of the producing cost. If you want to check any price of our products, please feel free to contact us. We will send offer to you soon!
