| Prod Model: |
AH-1000 |
| Material: |
304 Stainless Steel |
| Packing Range: |
50 to 1000 Ml |
| Voltage: |
AC220V/50Hz AC380 |
| Packing Film Size: |
320mm/240mm |
| Size Of Bag(mm)L: |
30-185mm(L) |
| Size Of Bag(mm)W: |
110-150mm(W) |
| Dimension: |
890*850*2000mm |
| Weight: |
340kg |
| Power Supply: |
220V/50Hz |
| Model: |
Ah-1000 |
| Application: |
Food |
| Driven Type: |
Electric |
| Material Type: |
Liquid |
| Packaging Material: |
Plastic |
| Packaging Type: |
Bag Pouch Sachet Film |
Product Description

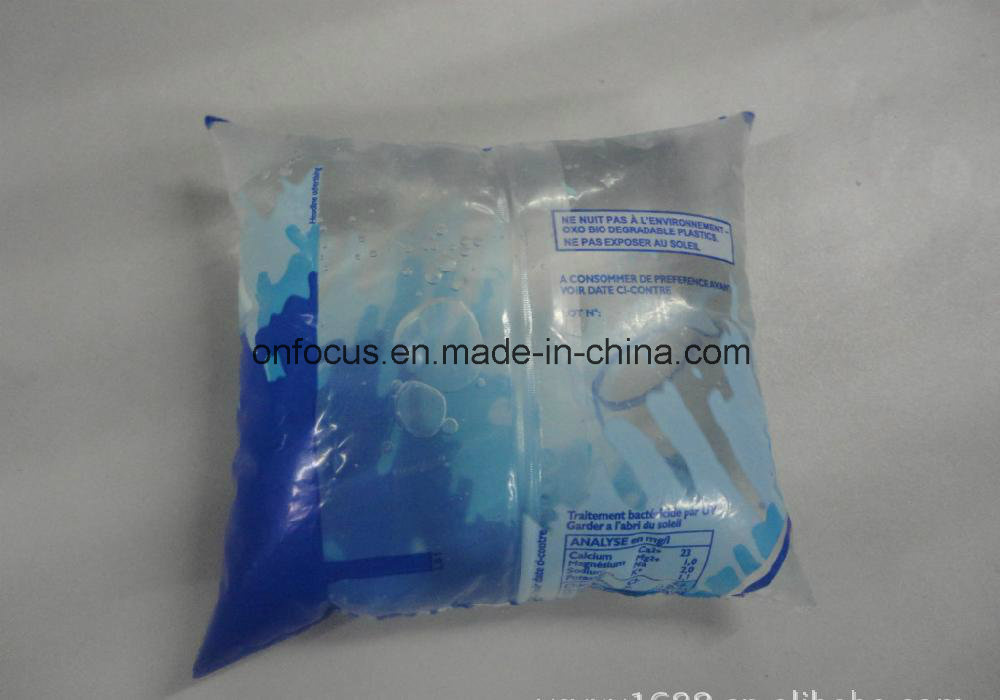

Automatic Packing Machine Pure Water Sachet Packing Machine Ah-1000
Main performance
This machine is a vertical type machine, it seal back sealing, intermittent high-accuracy liquid packing machine. It can automatic complete the full process of bag-making, fill, seal, print number, cut and counting and so on, be controlled by microprocessor, allocated accurately and reliablely, it is the most advanced liquid object in domestic market at present, especially suitable to pack the single or compound films.
Usage
It is suitable for packing sauce, ice-lolly, popsicle,liquor, vinegar, soft drink, beanmilk, milk, peanut oil, vegetable oil, and various plant oil, mineral water and liquid chemical products.
. Automatic liquid packing machine functions
(1) Film Pouch or Bag-shaping
(2) Ultraviolet sterilization
(3) Thermal vertical sealing
(4) Production date and marks printing automatically
(5) Linear bag traction
(6) Quantitative filling
(7) Thermal transverse sealing
(8) Bag-cutting automatically
(9) Automatic counting
Characteristics of this machine:
· Controlled by the computer,uncomplicated operation, easy maintenance, stable function and reliable quality.
· The packing speed has no rank to adjust.
· Adopts exclusive control technology for the length of sacks, the length of sacks has no rank to adjust. The length of the manufacturing sacks is accurate and easy to adjust.
· Intelligible temperature-control instrument, it can constantly control the hot-seal temperature, certify the quality of the seal.
· Unique photoelectricity orientation technology, to assure complete picture of the manufacturing sacks with color marks.
· In the rated scope, the packing amount has no rank to adjust.
· Print the batch number of the products automatically, made the tearing opening easy for use.
| Performance parameter : | |
| Model | AH-1000 | AH-2000 |
| Speed | 1800Bags/H | 1500Bags/H |
| capacity | 50 ~ 500ml | 200~1000ml |
| power | AC220V/50Hz , AC380 | AC220V/50Hz.,AC380 |
| Confession paper electric motor | 250W/220V | 250W/220V |
| heat-seal power | 300W | 500W |
| Hotor power | 370W/380V/220V | 370W/380V/220V |
| Outline dimension | 950×800×2000mm | 1000×900×2200mm |
| Machine weight | 320Kg | 360Kg |
