Intelligent 35kv Underground Power Cable Fault Locator

Name: Intelligent 35kv Underground Power Cable Fault Locator
Brand: tool-buy.com
SKU: 734287492
Availability: InStock
Rating: 4.5 (149 reviews)

Price:	US $ 1/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.

Showroom Product Company Profile

Prod Model:	GD-TC
Item Name:	Intelligent 35kv Underground Power Cable Fault Loc
Application:	Test Hv Arcing Fault of Cable
Cable Type:	Electric Power Cable
Cable Voltage Level:	Below 35kv
Cable Length:	16km Max.
Detection Blind Area:	1m
Reading Resolution:	1m
Power Consumption:	5va
Dimension:	225165125mm
Warranty:	1 Year
Type:	Universal Testing Machine
Weight:	0-100Kg
Power Source:	AC220V
Maxcapacity:	Cable Fault Locator
Oil Cylinder Position:	Cable Fault Locator

Product Description

GD-TC Intelligent 35kV Underground Power Cable Fault Locator

Introduction:

GD-TC Intelligent 35kV Underground Power Cable Fault Locator is used to test the HV arcing fault of cable, earthing high &low resistance, short circuit and breakage of the cable, poor contact, etc.
GD-TC Intelligent 35kV Underground Power Cable Fault Locator can test all types power cable (voltage class 1KV~35KV) , local cable, FM communication cable, coaxial cable, short circuit, earth, high resistance leakage, high resistance flashover fault of the metal overhead lines, and the broken & poor contact of the cable. It also can test the length of the cable and the speed of the electric wave on the cable.
If equipped with fault locator, it can decide the exact broken position of the cable ,applies to power cable in various type, voltage and communication cable.

Features:

1. Multi functional, safe, fast speed and accurate. It uses LV impulse method and HV flashover method to test, can test kinds of fault of the cable, if equipped with sound locator, can accurately the position of the fault point.
2. High precision, adopts high-speed sampling technique, A/D sampling speed is 100MHz, resolution is 1m, detection blind area is 1m.
3. High degree of intelligence, test results auto displayed by LCD.
4. Can store and review the waveform and parameters, these information will not loss after power off.
5. Dual display, compare the measured waveform and normal waveform of the fault cable, benefit to further detection of the fault.
6. With function of wave form expansion ratio, change the proportion of the waveform, expand the waveform to test.
7. Directly display the direct distance or relative distance between fault point and measured point.
8. Can modify the speed according different measured cable.
9. Portable design , small in volume , with rechargeable battery, easy to carry and operate.

Parameters:

No.	Item Name	GD-TC Intelligent 35kV Underground Power Cable Fault Locator
1	Longest measured distance	32km (100km for open wire )
2	Detection blind area	1m
3	Reading resolution	1m
4	Power consumption	5VA
5	Service conditions	temperature: 0ºC~+40ºC(extreme temperature: -10ºC ~ +50ºC)
6	Relative humidity	40ºC(20~90)%RH
7	Atmospheric pressure	(86~106) Kpa
8	Dimension	225mm×165mm×125mm
9	Weight	2kg

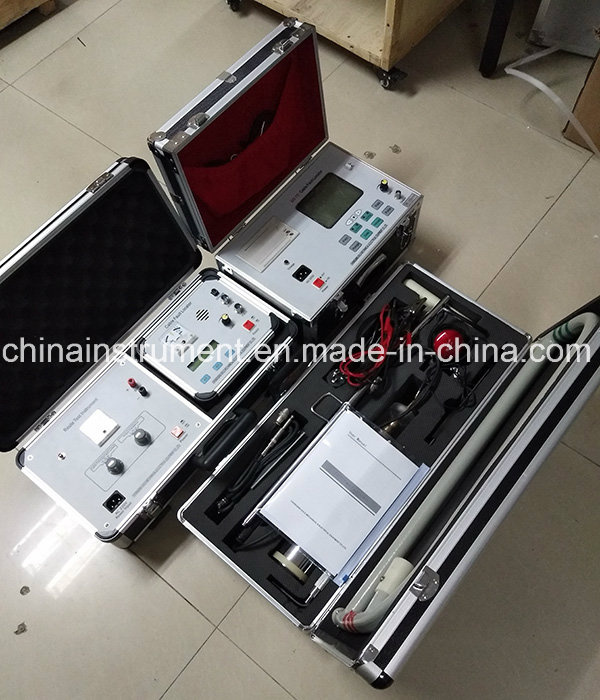

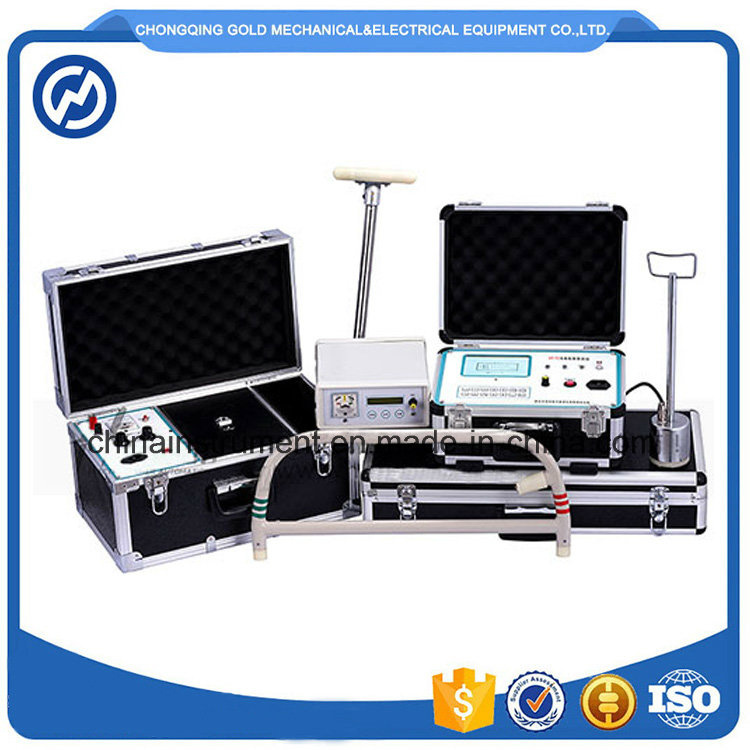

Product Show:
