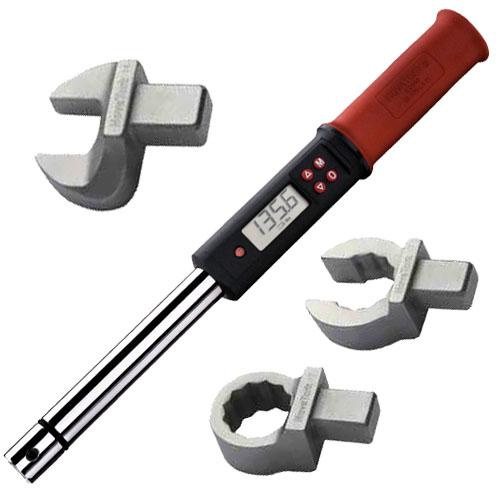

Interchangeable Head Electronic Torque Wrench
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal |
| Prod Model: |
ETW20I |
| Type: |
Rechargeable Electric Wrench |
| Power: |
Battery |
| Power Supply Type: |
Rechargeable - Lithium |
| Torque: |
300n.M |
| Brand: |
Pride |
| Power Source: |
Manual |
Product Description
*Target torque and torque being applied are shown on a LCD display. Single-function keys are easy and fast to use. This wrench has all the functionality of a dial wrench, but is 3 times as accurate.
*Depending on models 9x12 and 14x18 head holders are available.
*Torque Units: Nm; Lb.in; Lb.ft
*Large LCD display
*Desired torque is easily set using two keys.
*When applied torque is near target torque, yellow LED lights up. When torque is within 2% of target, red LCD blinks and the buzzer beeps. At the target torque the red LED lights up and the buzzer sounds continuously.
*Display retains maximum torque reached until reset
* % Deviation from set torque is automatically calculated and displayed together with appropriate color LCD.
*Accuracy: +/-2% CW of Readings from 20% to 100% of Full Scale,+/-3% CCW of Readings from 20% to 100% of Full Scale.
*Runs for up to 40 hours on 2 standard AA batteries.
Standards: DIN / ISO 6789,ASME B107.14M
Metric Unit | Model No. | Shank Size | Torque Range | Length | Width | Weight |
| N.m | Lb.ft | mm | mm | kg |
| ETW20I | 9*12 | 2.0-20 | 17.7-177 * | 365 | 41 | 0.50 |
| ETW30I | 9*12 | 3.0-30 | 26.5-265 * | 365 | 41 | 0.50 |
| ETW50I | 9*12 | 5-50 | 44.2-442 * | 390 | 41 | 0.58 |
| ETW100I | 9*12 | 10-100 | 7.4-74 | 420 | 41 | 0.63 |
| ETW200I | 14*18 | 20-200 | 14.7-147 | 460 | 41 | 0.75 |
| ETW300I | 14*18 | 30-300 | 22.1-221 | 590 | 41 | 1.11 |
*Unit is Lb.in
English Unit | Model No. | Shank Size | Torque Range | Length | Width | Weight |
| Lb.ft | N.m | mm | mm | kg |
| ITW015I | 9*12 | 15-150 * | 1.7-17 | 365 | 41 | 0.50 |
| ITW030I | 9*12 | 30-300 * | 3.4-34 | 365 | 41 | 0.50 |
| ITW100I | 9*12 | 10-100 | 13.5-135 | 420 | 41 | 0.63 |
| ITW250I | 14*18 | 25-250 | 34-340 | 590 | 41 | 1.11 |
*Unit is Lb.in
