| Prod Model: |
A4 |
| Material: |
Cold-Roll Steel Sheets |
| Protocol: |
SIP 2.0 Rfc 3261 Compatible |
| Ethernet I/F: |
10/100 Mbps |
| Power Input: |
Poe 802.3af |
| Operating Temperature: |
-10 Degrees C to 50 Degrees C |
| Output Level: |
up to 10 Watts |
| Dimension: |
114*114*77 (H X W X D)mm |
| Warranty: |
12 Months |
| Product Name: |
IP Speaker Amplifier Wall Mounting Module SIP Publ |
| Application: |
Airprot, Transtation, Bank,Koisk, Elevator, etc |
| Usage: |
Telephone |
| Type: |
Wireless |
| Information Content: |
Voice |
| Certification: |
RoHS |
| Condition: |
New |
| Support Network: |
Analogue(PSTN), VoIP, GSM, Paga, WiFi. |
Product Description

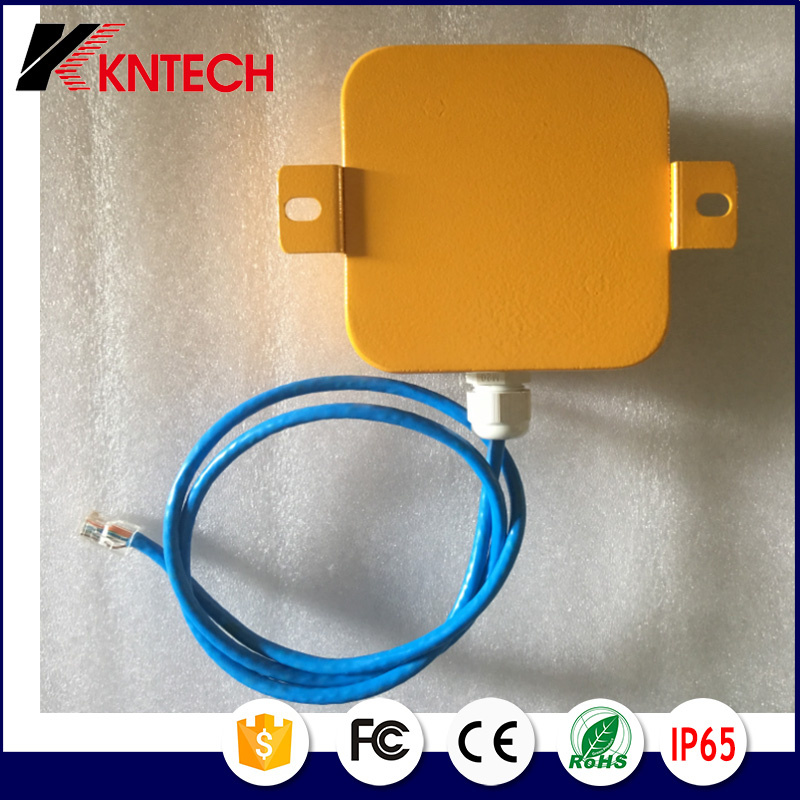

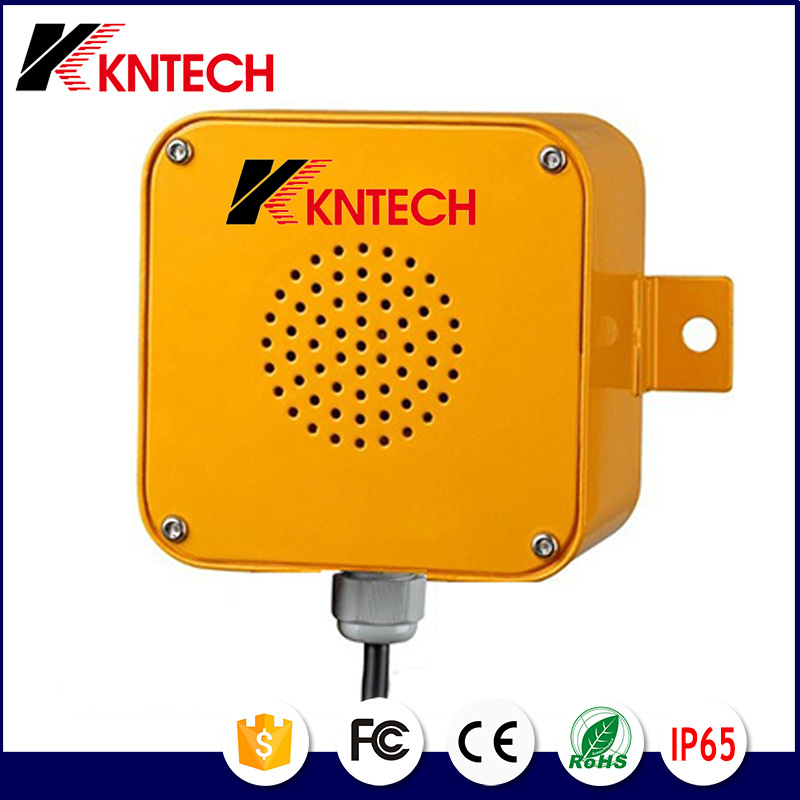

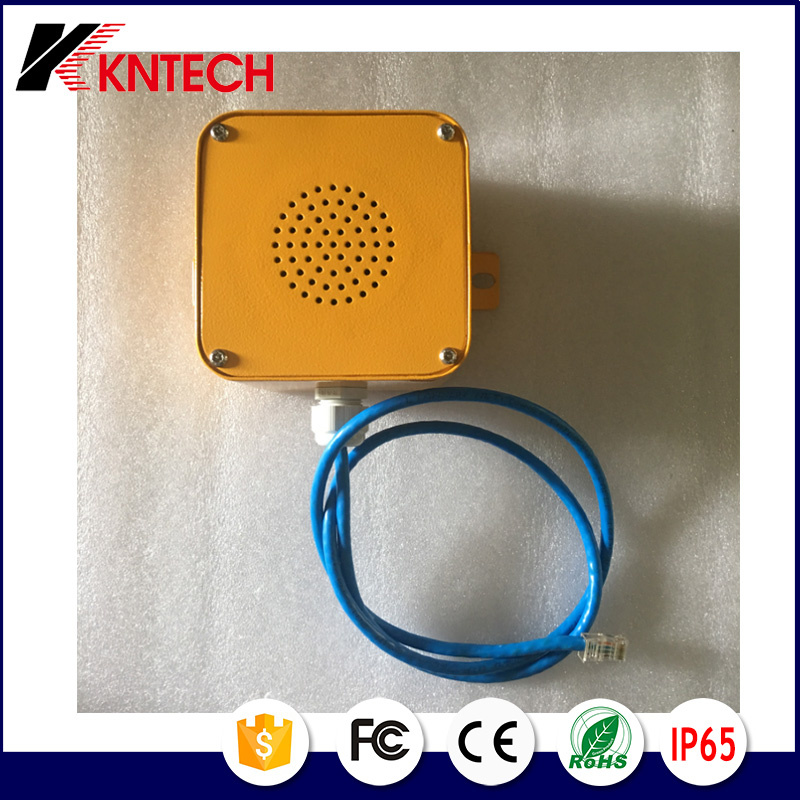

KOONTECH security industry high quality audio SIP Speaker A4 Yellow main features:
Make your own 10W IP speaker or intercom station. Being highly customizable this intercom module can cover your need for VoIP anywhere.
| Housing | Industrial standard coated steel body |
| Colour | Red |
| Protection degree | IP 66 (IEC 529) |
| Operating position | Wall or ceiling mounting |
| Temperature range | Operation-20 to +70°„C Storage-40 to +85°„C |
| Weight | 0.5 kg |
| Signalling device | The signalling device is actuated with a mains voltage
of 110 to 230 VAC |
| Power supply: | Par cable / Telephone line powered |
| Volume | Approx. 80 dB(A), 1 m |
| Call voltage | 24 VAC to 75 VAC |
| Exchange voltage | 0 VDC to 63 VDC |
| Mounting: | Wall mounting |
The top complaint about voice audio in the security industry is how poor audio quality affects everything, from providing a more secure environment, to critical mistakes and inefficiencies due to inadequate communications. However, our SIP speaker A4 offers HD audio quality for indoor and outdoor environments, and it can, for example, be used as a communication solution for Taxi or bus stands or station, highway call box, railway, metro, ATM machines side, tunnel, port, dock, mines, generation facilities...Plus, to improve audio quality, it features active noise cancellation and a 10W Class D amplifier.
KOONTECH security industry high quality audio SIP Speaker A4 Yellow:
| Protocol | SIP RFC 3261 Compatible |
| Ethernet I/F | 10/100 Mbps |
| Power Input | PoE 802.3af |
| Operating Temperature | -10 degrees C to 50 degrees C
(14 degrees F to 122 degrees F) |
| Output Level | Up to 10 watts |
| Dimension | 114*114*77 (H x W x D)mm |
| Warranty | 1 Year Limited |
| Model | A4 |
Packing :
| Size | 15*15*9cm |
| G.W | 1kg |
| CTN box size | 35 x 35 x 20cm |
| Packing | 8pcs in outer CTN box |
