| Prod Model: |
5J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material Of Hubs: |
Cast Iron,Powder Metallurgy of Sureflex |
| Material Of Spider: |
EPDM,Hytrel(Basf) |
| Bore Size Of Hubs: |
Pilot Bore or Customized |
| Type Of Inserts: |
Je,H |
| Color Of Elements: |
Black,Orange |
| Surface Treatment: |
Black Oxide or Paint Made to Order |
| Weight: |
1.25kg/Set |
| Size Standard: |
Tbwood's,Lovejoy |
| Material: |
Gg25 |
| Hardness: |
Flexible |
| Manipulate Way: |
None |
| Manufacturing Method: |
Cast Iron |
| Toothed Portion Shape: |
None |
| Changes Way: |
None |
| Type: |
Flanges and Inserts |
Product Description

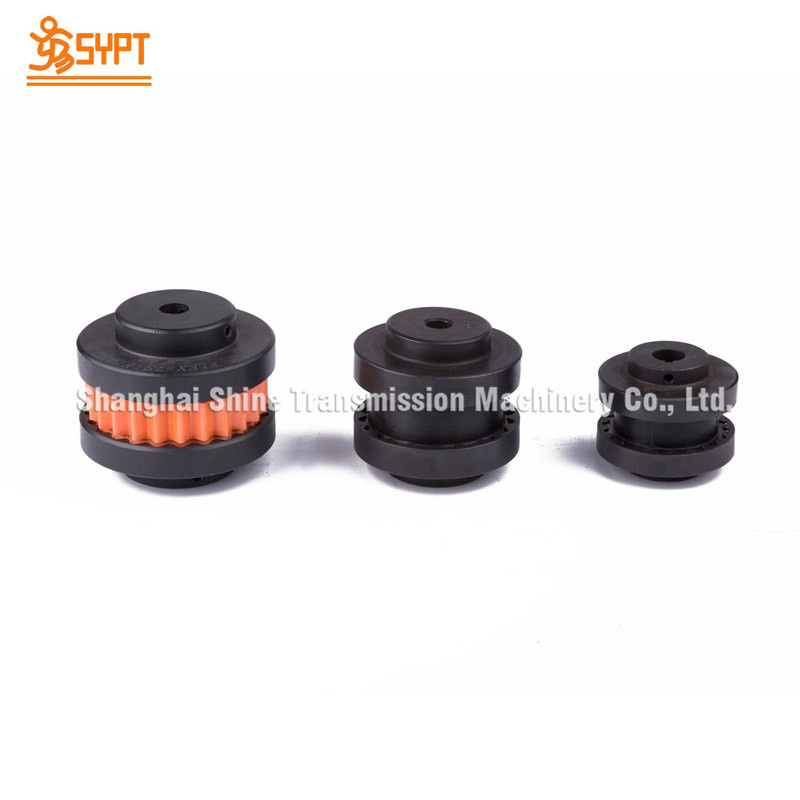

CE ISO approved high quality Flex Coupling
S-flex coupling, ,

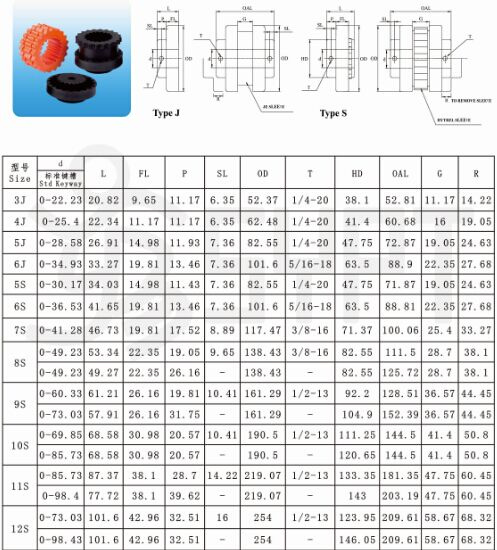

1. The couplings have two types of flanges J and S, their flanges are bored-to-size and manufactured for a slip fit on
Standard shafting. Available from stock in a wide range of shaft sizes.
2. Non lubricated, maintenance free, easy and quick installation.
3. EPDM,Hytrel elements.
4. Customzied requirement is available.
Shanghai Shine Transmission Machinery Co., Ltd is specialized in manufacturing and selling transmission products.
Our products are exported to the world famous machinery company in Europe, America, South Africa, Australia, Southeast Asia etc.
Our main products include: European pulley, American pulley, Couplings, taper bushing, QD bush, lock element, adjustable motor base, motor rail, sprockets, chain, bolt on hubs, weld on hubs, jaw crusher equipment & spare parts and all kinds of non-standardCasting products etc. | Element material | Rubber | Hytrel |
Shanghai shine transmission machinery Co., Ltd is specialized in manufacturing and selling transmission products. Our products are exported to the world famous machinery company in Europe, America, South Africa, Australia, southeast Asia etc.
Our main products include: European pulley, American pulley, couplings, taper bushing, qd bush, lock element, adjustable motor base, motor rail, sprockets, chain, bolt on hubs, weld on hubs, jaw crusher equipment & spare parts and all kinds of non-standard Casting products etc.
The good quality of our products is demonstrated in various machinery equipment. For example, mining equipment, grain equipment, fan, air compressor, vacuum pump, woodworking machinery, papermaking machinery, mixing equipment etc.
Our slogan is"qualified products win customers, good service benefits customers". By establishing a closer cooperation with old and new clients, We' Ll be able to guarantee a win-win situation develop and progress together.
