ISO Chrome Steel 32030 Taper Roller Bearings for Trucks Trials and Machine

Prod Model:	32030
Price:	Competitive Price
Quality:	Good /High Quality
Size:	Metric / Inch Size
Structure:	Bearings Cups and Cones
No. Of Rows:	Single Row
Rollers:	Super Finishing Rollers
Sample:	Free Sample Available
Seals Type:	Open
Service:	OEM
Application:	Auto Parts Motorcycle Parts, Engine Parts
Rolling Body:	Roller Bearings
The Number Of Rows:	Single
Outer Dimension:	Small (',28-55mm)
Material:	Bearing Steel
Separated:	Separated

Product Description

Product Description
Tapered roller bearings are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preloaded mounting can be made.
Specification of  taper roller bearings

Product	32030
Material	Chrome steel, GCr15, Bearing Steel
Decription	High precision and low noise
Dimension	150x225x48mm
Series	302 series ,303 series ,313 series,322series,323series,329series,320s
Precision Grade	P0, P6, P5 ABEC1,ABEC3,ABEC5
Service	OEM
Vibration Level code	V1,V2.V3
Number of Row	Single row
Regular export packing	Industrial tube packing / Single Box+ Carton +pallet
Delivery Time	3-35 days after receiving your payment
Payment Terms	T/T,Western Union,MoneyGram,Paypal
Port of shippment by sea	Qingdao, Ningbo, Tianjin , Yiwu available
Place of Origin	Shandong
Samples	Free sample Acceptable with freight to be collect or freight prepayid from your side.

Other Technical Parameters of Taper roller bearing  322Series

ISO	Dimensions  (mm)					Basic Load  Rating (N)		Limitting  speed  ( r/min )		Weight
								Lubrication
	d	D	B	T	C	Dyn. C	Stat. C0	Grease	Oil
32203	17	40	16	17	14	29000	29500	10000	13000	0.102
32204	20	47	18	19	15	33100	34700	8000	11000	0.161
32205	25	52	18	19	15	35800	44000	7000	9500	0.19
32206	30	62	20	21	17	50100	57000	6300	8500	0.28
32207	35	72	23	24	19	66000	78000	5300	7000	0.43
32208	40	80	23	24	19	74800	86500	4800	6300	0.53
32209	45	85	23	24	19	80900	98000	4500	6000	0.58
32210	50	90	23	24	19	82500	100000	4300	5600	0.61
32211	55	100	25	26	21	106000	129000	3800	5000	0.83
32212	60	110	28	29	24	125000	160000	3400	4500	1.15
32213	65	120	31	32	27	151000	193000	3000	4000	1.5
32214	70	125	31	33	27	157000	208000	2800	3800	1.6
32215	75	130	31	33	27	161000	212000	2600	3600	1.7
32216	80	140	33	35	28	187000	245000	2400	3400	2.05
32217	85	150	36	38	30	212000	285000	2200	3200	2.6
32218	90	160	40	42	34	251000	340000	2000	3000	3.35
32219	95	170	43	45	37	281000	390000	1900	2800	4.05
32220	100	180	46	49	39	319000	440000	1800	2600	4.9
32221	105	190	50	53	43	358000	510000	1800	2600	6
32222	110	200	53	56	46	402000	570000	1700	2400	7.1
32224	120	215	58	61	50	468000	695000	1600	2200	9.15
32226	130	230	64	67	54	550000	830000	1500	2000	11.5
32228	140	250	68	71	58	644000	1000000	1400	1900	14.5
32230	150	270	73	77	60	737000	1140000	1200	1700	17.5
32232	160	290	80	84	67	880000	1400000	1100	1600	25.5
32234	170	310	86	91	71	980000	1560000	1000	1500	28.5
32236	180	320	86	91	71	1010000	1640000	950	1400	29.8
32238	190	340	92	97	75	1110000	1920000	900	1300	36
32240	200	360	98	104	82	1210000	2000000	900	1300	42.7
32244	220	400	108	114	90	1530000	2560000	800	1100	58.3

Why Choose us:
1> World Class Bearings: All type of indigenous bearing with world class quaity are provided to our customers all over the world.
2> Non Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by CHIK due to its vast knowledge in the industry and strong production capacity of our factory.
3> Genuine Products with Excellent Quality: 100% quality products are proved and provided with genuine intent.
4> After Sales Service and Technical Assistance: We provides after sales service and professional technical assistance as per the customers requirement and needs.
5> Quick Delivery: We provides jus-in-time delivery with its streamlined supply chain.
6> Cost Saving: We provide long-life, shock-resistant and high reliability bearings with excellent quality and better preformance, resultng in increased cost saving
7> Less Cost of Purchase: CHIK is a direct factory and also cooperats with many manufacturers.
8> Attending Customers Queries Promptly: We belive customers' satisfication proves out worth well. Customers are always given quick support.

FAQ

Q: Can I customize the bearings?
A: Yes,sure .we provide customize- made service. You need to send us the drawings for our further handing.
Q:Are you a factory or trading company?
A:CHIK Bearing Co.,Ltd is specialized in manufacturing and exporting Bearing.
   We have our own factory located in Linqing city and warehouse in Jinan city.
Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, we are honored to offer you samples.If we have stock, we can send you free  sample and you just need to pay freight. Sample freight to be collect or prepaid by your side. If there;s no stock, you need to pay sample fee  and freight.
Q:What is the MOQ for bearing?
A: Our MOQ is 1 pc for sample order and $2000 for batch orders.

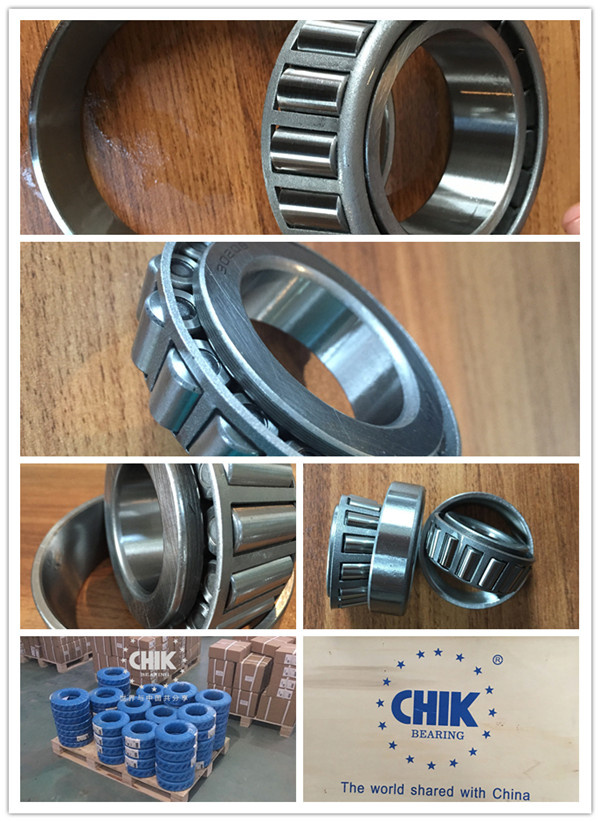

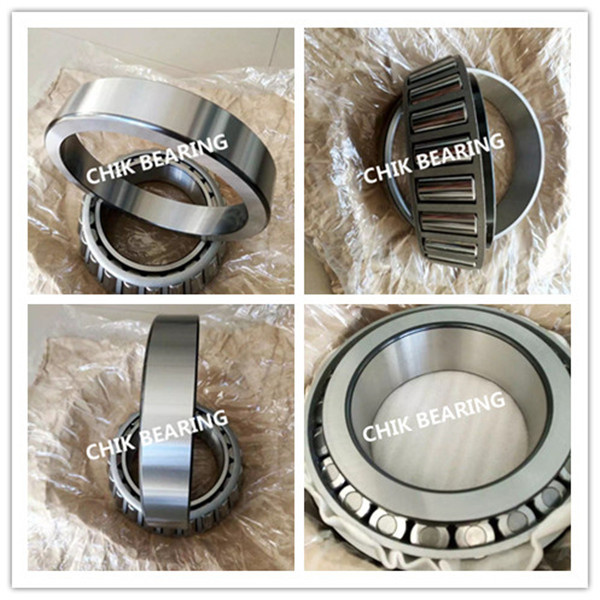

Product Show
