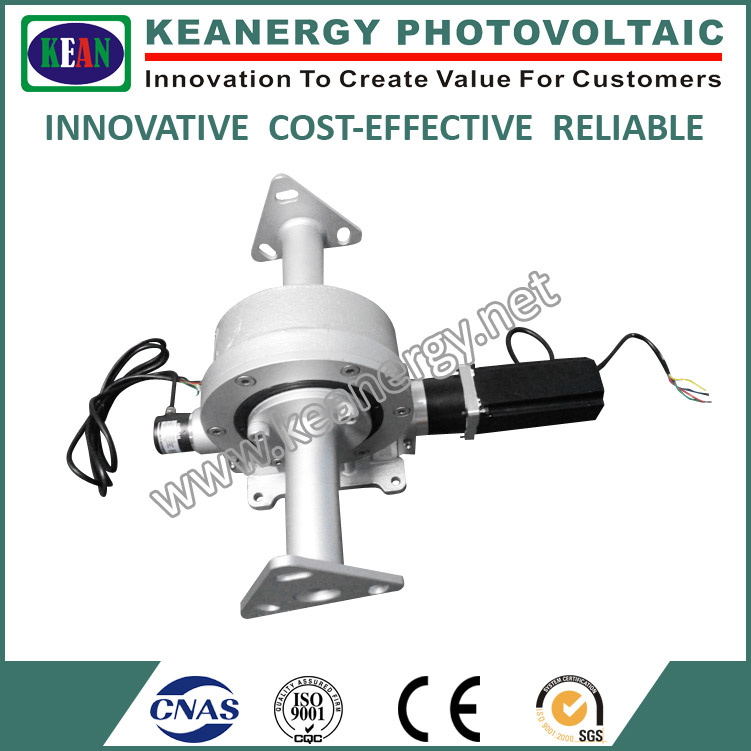

SVE model is popularly used in solar industry and they can be installed vertically compared with SKE model.
SVE model reduced customer's extra installation brackets, simplified customer's field installation.

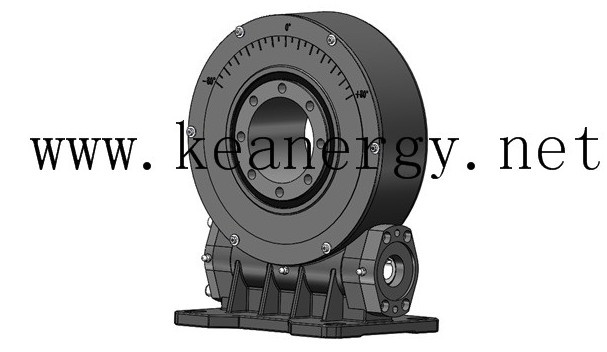

SVE Model Slewing Drive Dimensions
Model
Ratio
External Dimensions
Mounting Holes Dimensions
L1
L2
L3
L4
L5
H
D1
D2
D3
n1
M1
n2
M2
3"
31:1
209.1
80.1
174.9
127.1
130
89.5
80
110
130
6
M10
4
9
5"
37:1
236.2
93.7
200
142.7
160
105
100
120
160
6
M10
4
18
7"
57:1
328.7
133.2
255
186.2
210
119
170
150
210
10
M12
4
17
8"
51:1
315.6
121.6
302
190.6
234
136
134
178
254
8
M16
4
20.5
9"
61:1
439
174.4
349
264.5
244
122
145
177.5
254
8
M16
4
20.5
12"
78:1
522.5
220.0
455
295
260
173.5
300
230
350
16
M16
6
18
14"
85:1
609
237.6
519
371
363
177
335
263
378
16
M16
6
18
17"
102:1
651.4
280.4
582
335.4
360
181
415
300
480
20
M16
8
22
21"
125:1
772.7
342.7
700
422.7
400
200.8
505
300
480
24
M20
8
20.5
25"
150:1
934
401.0
844
533
590
210
640
428
614
24
M20
8
20.5
SVE Model Performance Parameters
Model
Rated Output Torque
Max Output Torque
TiltingTorque
Axial Load
Radial Load
Back Holding Torque
Efficiency
Precision
Self-locking
Weight
N.m
N.m
N.m
kN
kN
N.m
degree
Yes
kg
3"
600
1200
1500
3.6
15
7000
40%
≤0.050
Yes
13kg
5"
800
1600
5000
16
27
9200
40%
≤0.050
Yes
18kg
7"
1750
3500
7000
34
58
13200
40%
≤0.050
Yes
28kg
8"
2250
4500
11200
50
80
20400
40%
≤0.050
Yes
35kg
9"
4300
8600
16000
60
130
27200
40%
≤0.050
Yes
51kg
12"
7600
11400
25000
77
190
40560
40%
≤0.050
Yes
61kg
14"
12000
18000
48000
110
230
44200
40%
≤0.050
Yes
78 kg
17"
18000
27000
67000
142
390
53040
40%
≤0.050
Yes
105kg
21"
32000
48000
89000
337
640
65000
40%
≤0.050
Yes
185kg
25"
43000
64500
112000
476
950
89000
40%
≤0.050
Yes
244kg
1. We can install different types of electrical or hydraulic motor based on customer's requirements 2. We can provide all the standard products or specially design based on customer's requirements 3. We can paint all kinds of color based on RAL code 4. We can use reasonable IP grade based on your application 5. Please contact us if you need detailed sales drawing 6. Above dimensions and parameters may be updated or adjusted, please refer to our sales drawings for detailed dimensions and parameters
