| Price: | US $ 1-6600/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | T/T |

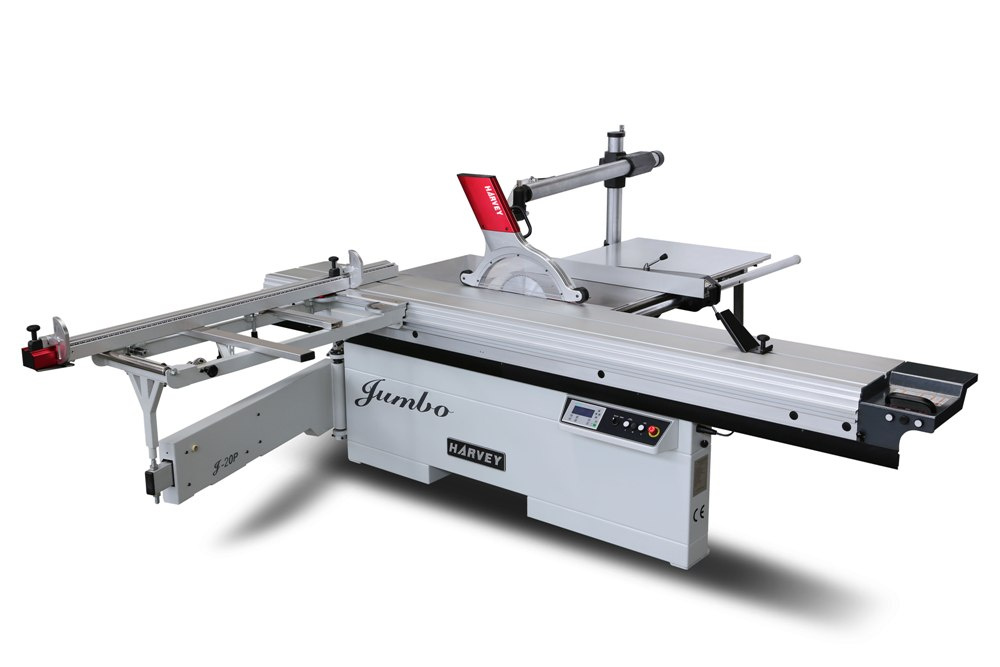

| Prod Model: | J-20P |
|---|---|
| Weight: | 948kgs |
| Type: | Table Panel Saw |
| Layout: | Horizontal |
| Controlling Mode: | Artificial |
| Automatic Grade: | Manual |
| Precision: | Precision |
| Certification: | CSA |
| Color: | RAL7035 |
Features:
• Extreme craftsmanship and operational experience
• "Honeycomb" style extra wide and heavy sliding table
• "Shark" 6-DOF overhead guarding system for best safety and dust collection
• Dado (grove cutting) application up to 15mm width
• Laser cut heavy steel frame with thorough powder coating
• Siemens centralized control and readout panel installed on the machine base
• Rip fence with digital readout
• Electronically blade up/down adjustment with 0.1mm accuracy with height digital readout
• Electronically controlled blade tilting adjustment with 0.1 degree accuracy with digital angle readout
• Dynamical balanced spindles perform at extremely low noise and hardly felt vibration
• High precision industrial ballscrew and linear guide for rip fence
• Dedicatedly engineered for heavy duty industrial production
• T-6 aircraft grade aluminum sliding table with 410mm width
• Harvey unique "Compass" crosscut fence system
• User-friendly dual control panels
• 50" rip fence with aluminum right hand extension board
• Aluminum rear extension board
• 380v/3ph/5.5kw main mechanical brake motor
• Trim shoe
• CE approved
Optional Equipment
• Hold down
• DRO for cross cut fence
Specifications:
Model | J-20P |
Sliding table L x W | 2500 x 410mm |
Maximum cutting length | 2300mm |
Maximum ripping width | 1270mm (50") |
Maximum cross cut fence length | 3300mm (11 ft) |
Main casting worktable size | 558 x 860mm (30" x 31-1/2") |
Main blade diameter | 315mm (12") |
Main blade arbor diameter | 30mm |
Main blade speed | 4500RPM |
Scoring blade diameter | 120mm |
Scoring arbor diameter | 20mm |
Scoring blade speed | 8000RPM |
Maximum cutting height at 90° | 102mm (4") |
Maximum cutting height at 45° | 76mm (3") |
Maximum Dado width | 20mm |
Main motor power | 5.5kW (3 phase) |
Scoring motor power | 0.5kW (3 phase) |
Machine foot print | 927.5 x 1980mm |
Machine work height | 905mm |
Machine net weight (approx.) | 1015kg |
