J23-120t C-Frame Inclinable Punch Press/Power Press Machine
| Price: |
US $ 5000-5500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
J23-120T |
| Type: |
Deep Throat Punching Machine |
| Controlling Mode: |
CNC |
| Automatic Grade: |
Automatic |
| Power Source: |
Hydraulic Pressure |
| Precision: |
Normal Precision |
Product Description
Packing & Delivery: | Packing detail:Export standard package |
| Delivery detail:Shipped in 15 days after the deposit. |
C-type power press, punching machines,mechanical press equipment
Specifications
1.High precision,Wide application
2.EU CE Certification
3.CQC,ISO9001:2008
4.High performance,
5.Easy to operation.
Introduction of product:
| 1. HREGER Brand JH21 Series High Precision Presses is one of the new generation of plate process and developed ,The press is for cutting, punching, blanking, bending and light stretching work. |
| 2.C-Type Steel-welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved ide life and machine. |
| 3. Rigid construction guarantees exact die mating,Six-side long rectangle guides of the slide with high moving precision and high accuracy, extending the service life of the die. |
| 4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection, increases gear life. |
| 5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service. |
Transmission control and brake systems: |
| 1. The Press adopts the low inertia combined dry pneumatic friction clutch and brake from Italy, Smoother press performance, easier maintenance, to ensure reliable safety and flexible action,Iow noise, long service life. |
| 2. Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor. which is stepless speed regulation within a certain range and enlarge the area of craf. |
| 3. The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision. |
| 4.PLC from Omron electrical control system allows various auto-equipment reprogrammed accord-lng to different requirements and perform various functions,to ensure high reliability and high adaptability, |
| 5. Use adopts dual valve from Japan, which can guarantee the safety and reliability of clutch. |
| 6. Machine is with both hands button and foot switch to achieve continuous, single and inching practices. |
| 7. Auto grease lubrication system,easy stroke adjustment mechanism increases press versatility tremendously. |
| 8. Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact; |
| 9. The press adopts cam controller which be combined with proximity switch (Schneider) which will realize the synchronous detection and monitoring reliably |

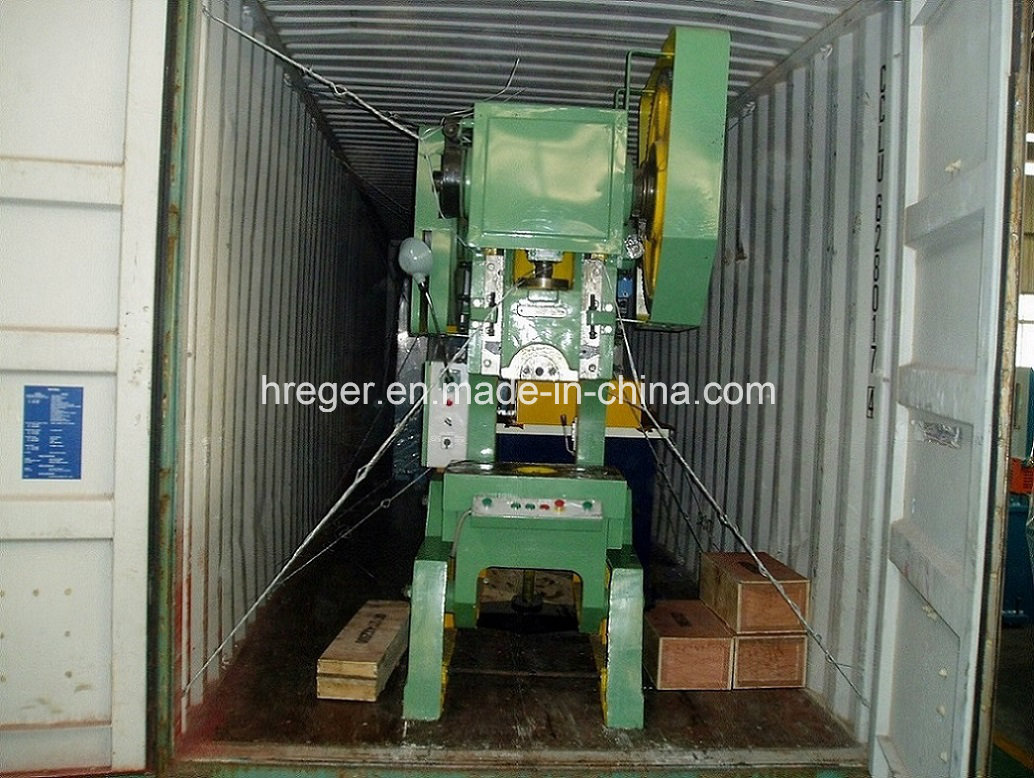

Shipped pictures:
After-sales service and warranty: 1.Your inquiry will be replied in 24 hours
2. Professional manufacturer,there is more industry technology experience more 10 years with our products
3.To offer free spare parts and service within 24 month of warranty
4.Technology Support Provide operation video for training
5.Professional after-sales service teamHow to contact us?
Our company is a leading manufacturer of machinery and steel products in China. Our main products contain the Hydraulic shearing machine, Hydraulic CNC press brake, Hydraulic ironworker, Open tilting type power press, 3-Roller / 4 Roller Bending machine and so on.
Our factory can supply ISO and CE quality certification. The product is widely used in electrical appliances, shipbuilding, machinery manufacturing, installation, repair, decoration, automobile, high speed train, mold manufacturing, aerospace., . etc. Our products are exported to Europe, North America, South America, the Middle East, Africa and South Asia. Our products are warmly welcomed by worldwide customers.
The company has a professional production of CNC cutting machine, CNC bending machine, CNC bending machine of large and medium-sized equipment, machine of Ji'nan production 6m, 10m One armed Longmen planer, planer Four Taiwan, large-scale production of ZOJE friendship Eighty, Fifty drilling machine Five Taiwan, large welding production platform in Hebei Botou Three Block, Shenyang CNC lathe machine, Yunnan machine tool factory Fourteen Taiwan, Nantong milling machine tool factory ThreeTaiwan, large driving Henan mining machinery production 50T, 20T, 16T The totalTwelve Taiwan.
The company in the production process, purchase sheet plate production large domestic steel mills, (such as Baosteel, Shagang, WISCO) ensures that the plate strength, quality, electrical parts purchase imported from France by Schneider, Siemens electric motor, CNC hydraulic part of the Swiss Sibok, part of the German Hoerbiger, pump by Japan and Vietnam, blade the current good 6CrW2Si The blade material, ensure the service life of the blade. The mold 40Cr Grinding and,
In short, in order to ensure the quality of the machine, we selected the best accessories market currently use unscrupulous divisive tactics to produce the optimal machine, allowing users to use at ease.
