J23-6.3t Ordinary Punch Press, Power Press, Mechanical Power Press
Price: |
US $ 1080-1400/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
J23-6.3T |
Machine Body: |
Steel Plate Welded Structure |
Work Table: |
Casting |
Crankshaft: |
45 Steel Forgings, Hardened Surface |
Flywheel: |
Casting Ht200 |
Main Power: |
Siemens From Germany |
PLC: |
Siemens |
Switches, Buttons, Lights: |
Schneider Electric SA |
AC Contactor: |
Schneider Electric SA |
Votage: |
220V/380V/415V(Optional) |
Safety: |
Ce and IP54 |
Type: |
Deep Throat Punching Machine |
Controlling Mode: |
Artificial |
Automatic Grade: |
Automatic |
Power Source: |
Mechanical Drive |
Precision: |
Normal Precision |
Product Description
Mechanical C-Frame Power Press J23 Series The structure of the Big hydraulic folding machine/press brake/bending: |

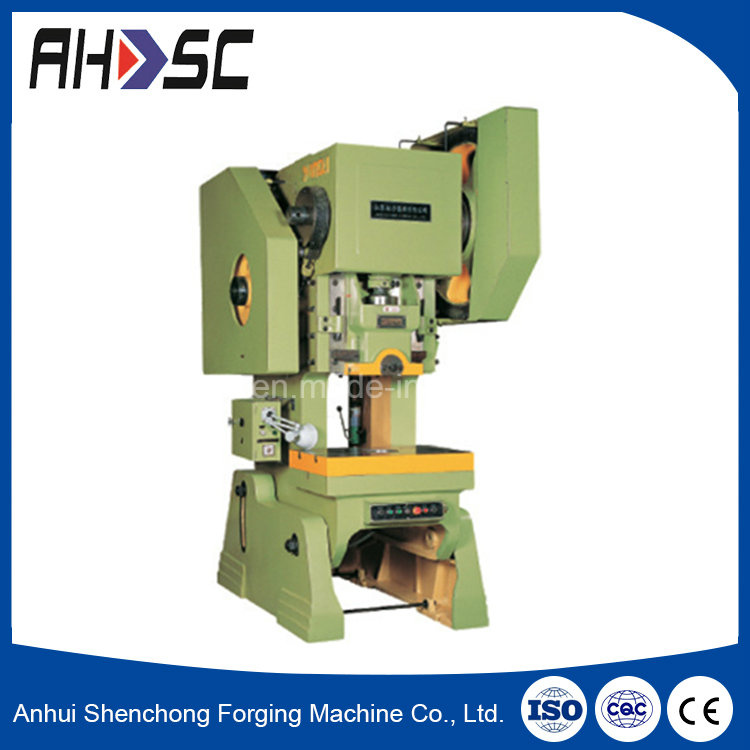

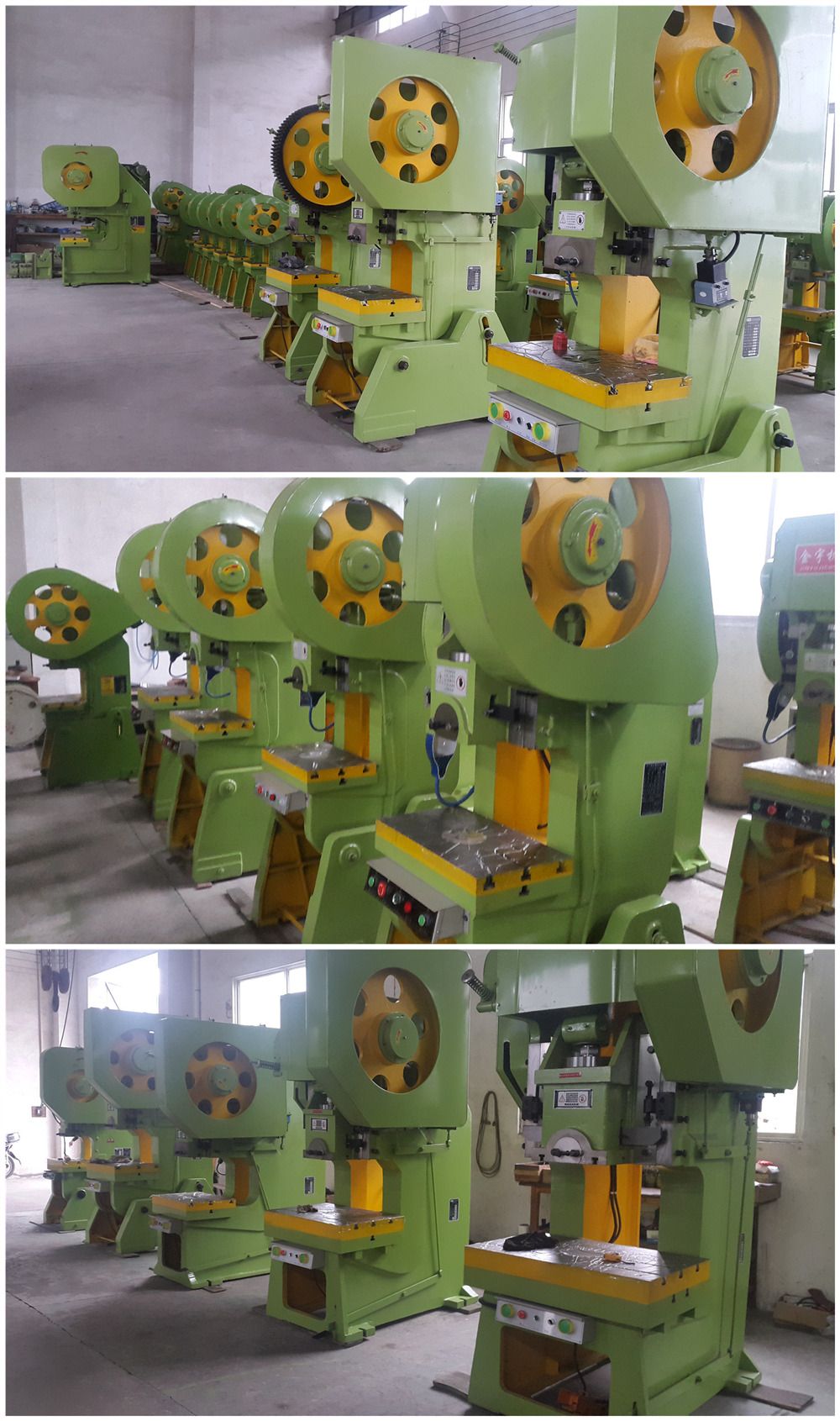

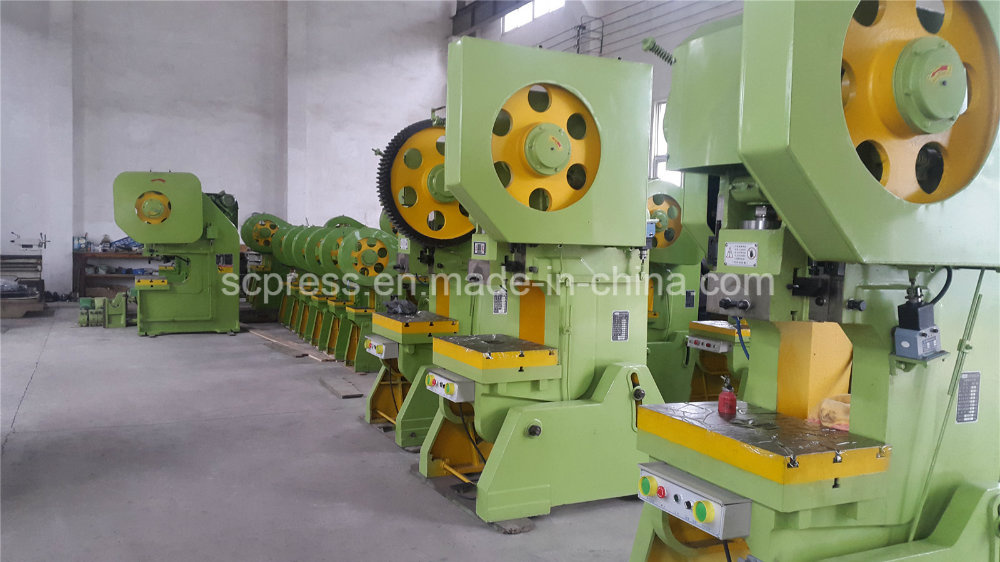

J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process. 1. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application. 2.Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful. 3.High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service. |
The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production. 1.Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy. 2.Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running. 3.Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine. 4.Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA. |
Ram adjustment and Structure: |
1.The Table and RAM body cast iron structure, the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance |
2.Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overload protection device, simple structure,if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage. |
3.Die height adjustment of slider with manual mode, using V shaped slider guide rail, easy adjustment |
Technical SpecificationItem | Unit | J23-6.3 | J23-10B | J23-20 | J23-30 | J23-40 | J23-60 | J23-80 | J23-100 | J23-125 |
Nominal Pressure | Tons | 6.3 Tons | 10 Tons | 20 Tons | 30 Tons | 40 Tons | 60 Tons | 80 Tons | 100 Ton | 125 Tons |
Nominal Pressure Stroke | mm | 2 | 2 | 3 | 4 | 5 | 6 | 6 | 10 | 12 |
Slide Stroke | mm | 35 | 50 | 60 | 70 | 100 | 120 | 120 | 130 | 130 |
Strokes per Minute | Spm | 170 | 130 | 120 | 70 | 60 | 50 | 50 | 45 | 45 |
Max. Die Height | mm | 120 | 130 | 160 | 200 | 240 | 280 | 280 | 300 | 330 |
Die Height Adjustment | mm | 30 | 35 | 40 | 55 | 65 | 80 | 80 | 100 | 120 |
Throat Depth | mm | 110 | 130 | 170 | 200 | 200 | 230 | 260 | 300 | 330 |
Bolster Surface Size | F.B. | mm | 200 | 240 | 300 | 320 | 430 | 450 | 480 | 550 | 650 |
L.R. | mm | 310 | 360 | 480 | 520 | 650 | 710 | 780 | 950 | 1050 |
Bed Opening Size | F.B. | mm | 110 | 100 | 110 | 190 | 150 | 200 | 220 | 250 | 340 |
L.R. | mm | 160 | 180 | 220 | 290 | 300 | 340 | 340 | 370 | 530 |
Dia. | mm | 140 | 130 | 150 | 260 | 200 | 250 | 260 | 300 | 450 |
Slide Surface Size | F.B. | mm | 120 | 150 | 150 | 170 | 220 | 230 | 250 | 280 | 380 |
L.R. | mm | 140 | 170 | 230 | 250 | 280 | 300 | 320 | 360 | 510 |
Size of the handle hole | mm | Φ30X55 | Φ30X55 | Φ35X60 | Φ40X60 | Φ50X70 | Φ50X70 | Φ60X70 | ¢60X80 | ¢80X80 |
Distance between Uprights | mm | 150 | 180 | 220 | 260 | 300 | 350 | 350 | 380 | 410 |
Thickness of Bolster | mm | 30 | 50 | 60 | 60 | 80 | 90 | 90 | 100 | 110 |
Inclinable Angle | degree | 45 | 30 | 35 | 30 | 30 | 30 | 30 | 25 | 25 |
Main Motor | Model | | Y90S-6 | Y90L-6 | Y100L-6 | Y112M-6 | Y132M1-6 | Y132M2-6 | Y132M2-6 | Y132M-6 | Y132M-4 |
Power | kW | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 5.5 | 7.5 | 11 |
Overall Dimension | F.B. | mm | 780 | 915 | 1140 | 1450 | 1500 | 1700 | 1810 | 1950 | 2150 |
L.R. | mm | 570 | 750 | 905 | 950 | 1180 | 1330 | 1450 | 1500 | 1350 |
Height | mm | 1500 | 1690 | 1890 | 2100 | 2300 | 2540 | 2850 | 2800 | 3350 |
Gross Weight | kg | 450 | 680 | 1100 | 1630 | 2850 | 4100 | 4550 | 7350 | 8750 |
Power Requirement | Voltage | 220V(380)/3-Phase |
