J23 Hydraulic Press, Deep Drawing Mechanical Press, Eccentric Press & Power Press

Name: J23 Hydraulic Press, Deep Drawing Mechanical Press, Eccentric Press & Power Press
Brand: tool-buy.com
SKU: 826186735
Availability: InStock
Rating: 4.6 (119 reviews)

Price:	US $ 1990-2100/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Anhui Province Shenchong Forging Machine Co., Ltd.

Showroom Product Company Profile

Prod Model:	J23-40T
Machine Body:	Steel Plate Welded Structure
Work Table:	Casting
Crankshaft:	45 Steel Forgings, Hardened Surface
Flywheel:	Casting Ht200
Main Power:	Siemens From Germany
PLC:	Siemens
Switches, Buttons, Lights:	Schneider Electric SA
AC Contactor:	Schneider Electric SA
Votage:	220V/380V/415V(Optional)
Safety:	Ce and IP54
Type:	Deep Throat Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Automatic
Power Source:	Mechanical Drive
Precision:	Normal Precision

Product Description

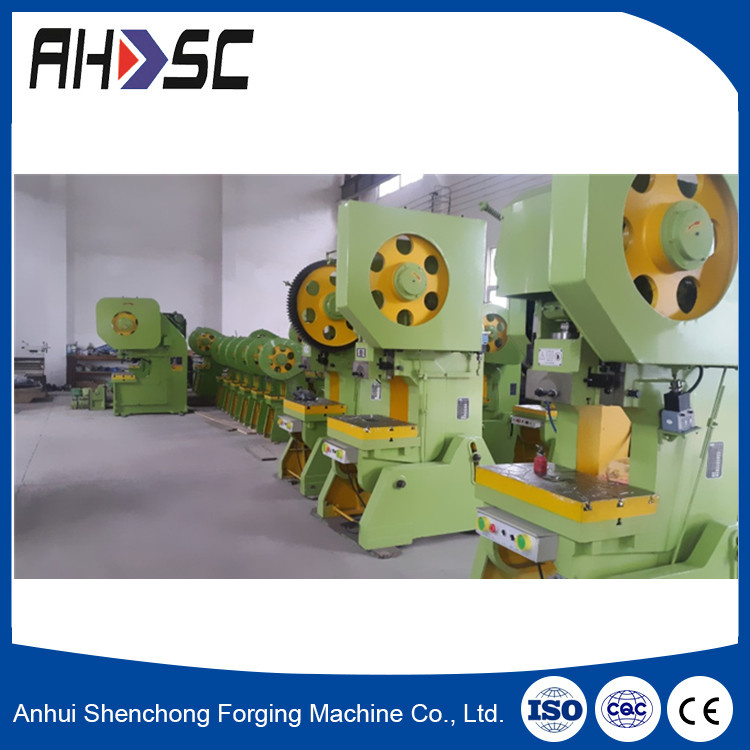

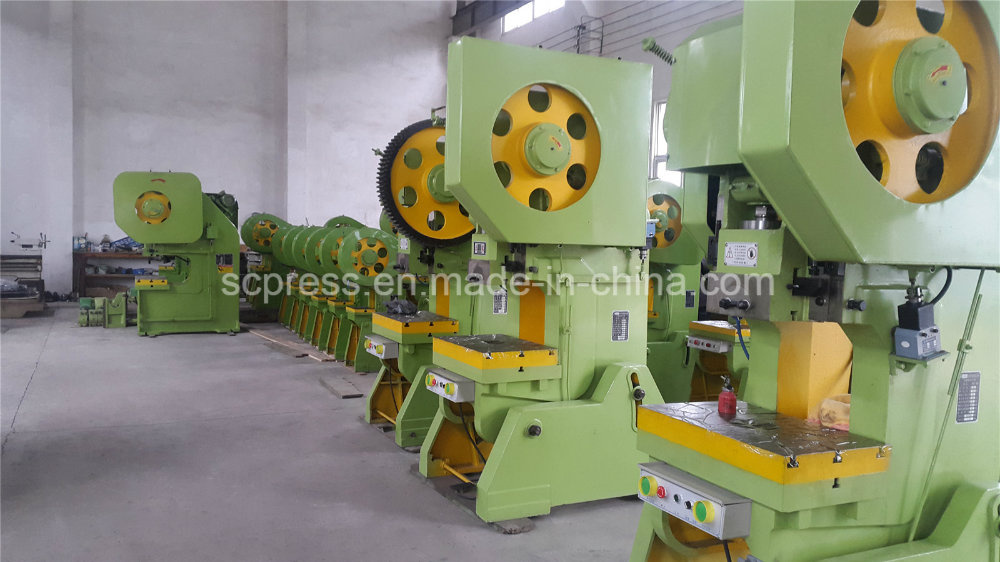

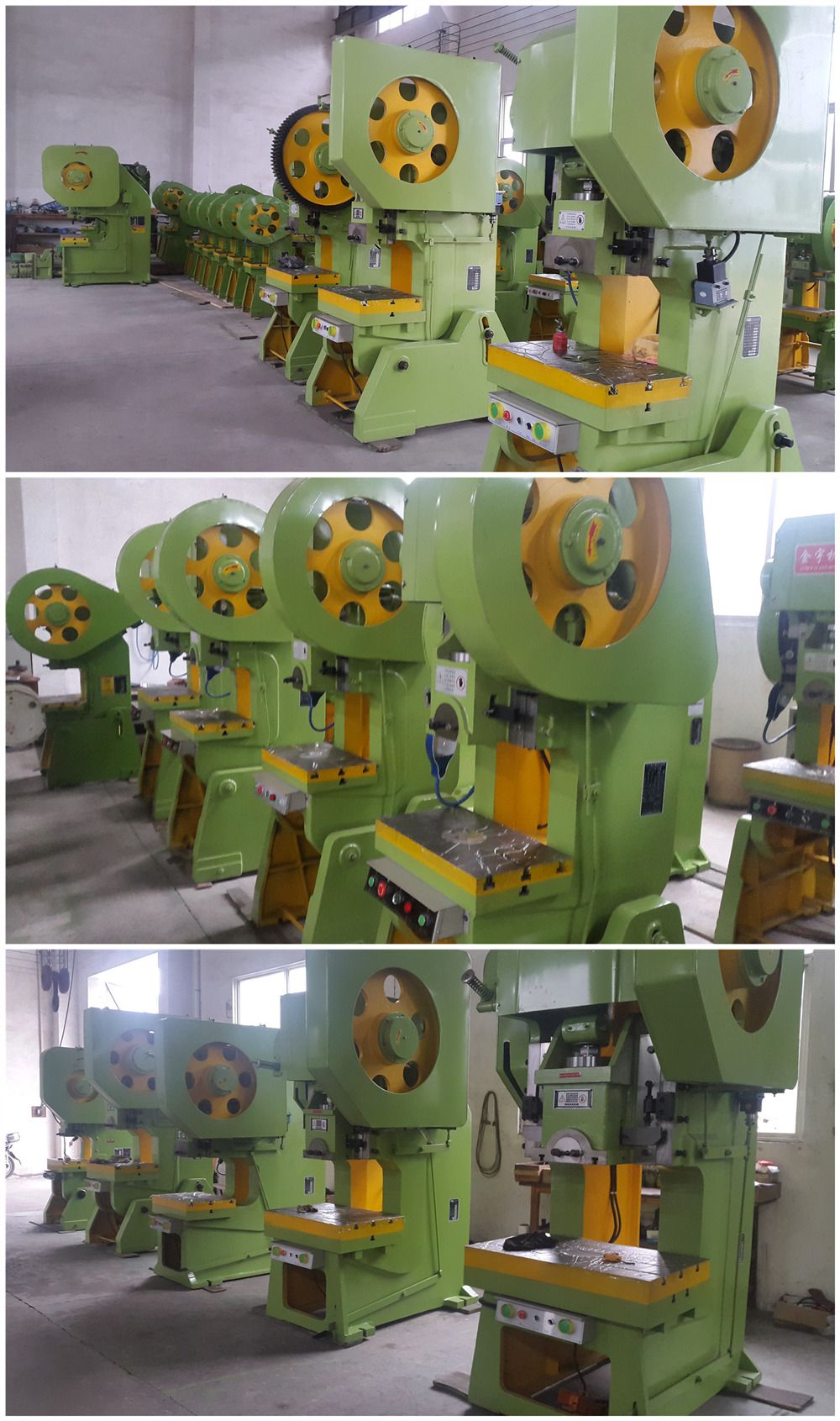

Mechanical C-Frame Power Press J23 Series
The structure of the Big hydraulic folding machine/press brake/bending:

J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
1. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted,
high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your
demanding application.
2.Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide,
and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.
3.High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.

The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
1.Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
2.Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
3.Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
4.Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.

Ram adjustment and Structure:

1.The Table and RAM body cast iron structure, the whole body is tempered, use the secondary transmission, the transmission part of the crankshaft horizontal Placement, flywheel and gear are the external open style, easy maintenance

2.Slider is a cast box structure and rigid. Collapse of the slider-style installation of pressure overload protection device, simple structure,if the slider overload, the fuse collapse is damaged, then protect the machine tool and die from damage.

3.Die height adjustment of slider with manual mode, using V shaped slider guide rail, easy adjustment

Technical Specification

Item			Unit	J23-6.3	J23-10B	J23-20	J23-30	J23-40	J23-60	J23-80	J23-100	J23-125
Nominal Pressure			Tons	6.3 Tons	10 Tons	20 Tons	30 Tons	40 Tons	60 Tons	80 Tons	100 Ton	125 Tons
Nominal Pressure Stroke			mm	2	2	3	4	5	6	6	10	12
Slide Stroke			mm	35	50	60	70	100	120	120	130	130
Strokes per Minute			Spm	170	130	120	70	60	50	50	45	45
Max. Die Height			mm	120	130	160	200	240	280	280	300	330
Die Height Adjustment			mm	30	35	40	55	65	80	80	100	120
Throat Depth			mm	110	130	170	200	200	230	260	300	330
Bolster Surface Size		F.B.	mm	200	240	300	320	430	450	480	550	650
Bolster Surface Size		L.R.	mm	310	360	480	520	650	710	780	950	1050
Bed Opening Size		F.B.	mm	110	100	110	190	150	200	220	250	340
		L.R.	mm	160	180	220	290	300	340	340	370	530
		Dia.	mm	140	130	150	260	200	250	260	300	450
Slide Surface Size		F.B.	mm	120	150	150	170	220	230	250	280	380
Slide Surface Size		L.R.	mm	140	170	230	250	280	300	320	360	510
Size of the handle hole			mm	Φ30X55	Φ30X55	Φ35X60	Φ40X60	Φ50X70	Φ50X70	Φ60X70	¢60X80	¢80X80
Distance between Uprights			mm	150	180	220	260	300	350	350	380	410
Thickness of Bolster			mm	30	50	60	60	80	90	90	100	110
Inclinable Angle			degree	45	30	35	30	30	30	30	25	25
Main Motor	Model			Y90S-6	Y90L-6	Y100L-6	Y112M-6	Y132M1-6	Y132M2-6	Y132M2-6	Y132M-6	Y132M-4
Main Motor	Power		kW	0.75	1.1	1.5	2.2	4	5.5	5.5	7.5	11
Overall Dimension	F.B.		mm	780	915	1140	1450	1500	1700	1810	1950	2150
	L.R.		mm	570	750	905	950	1180	1330	1450	1500	1350
	Height		mm	1500	1690	1890	2100	2300	2540	2850	2800	3350
Gross Weight			kg	450	680	1100	1630	2850	4100	4550	7350	8750
Power Requirement			Voltage	220V(380)/3-Phase
