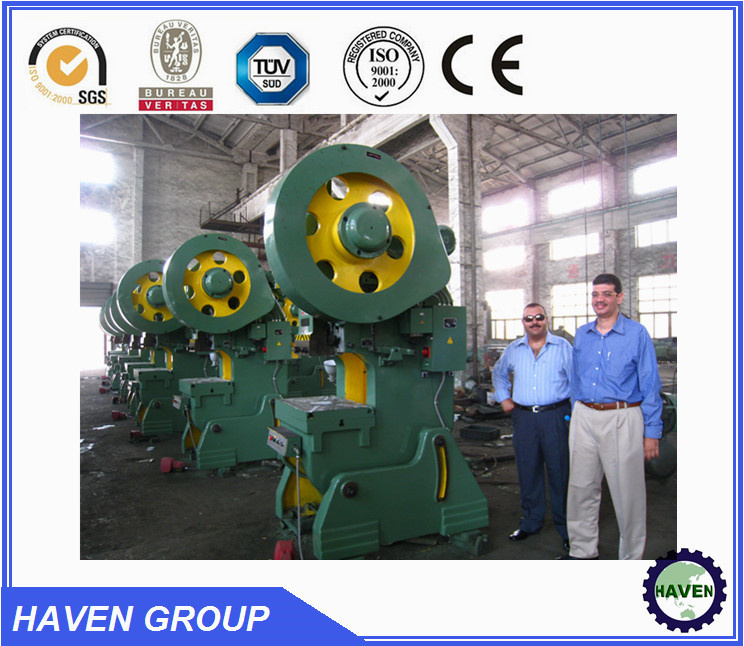

J23 Series Mechanical Inclinable Power Press with CE standrad

Name: J23 Series Mechanical Inclinable Power Press with CE standrad
Brand: tool-buy.com
SKU: 711790642
Availability: InStock
Rating: 4.9 (110 reviews)

Price:	US $ 2750/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Nantong Haven Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	J23-16B
Nominal Force:	160
Slide Block Stroke:	70
Number Of Stroke:	125
Max Die Set Height:	170
Worktable Size:	320*480
Main Motor:	1.5
Machine Size:	11590191
Net Weight:	1080/1405

Product Description

J23 Series Mechanical Inclinable Power Press with CE standrad

Characteristic:
J23 series is a common type press, with simple construction, reliable and easy to operate .
J23 series model D press with adjustable stroke, Stroke adjustable press
Adopts horizontally placed crankshaft.
Stroke adjustment device mounted on crankshaft.
Rigid rotated bond Clutch.
Manual shut height adjustment with scale display

Main specification:

			JC23-6.3D	J23-10D	J23-16D	J23-25D	J23-40D	J23-63D	J23-80D
Nominal forece		KN	63	100	160	250	400	630	800
Stroke under nominal force		Mm	2	2	2	2.5	4	4	5
Slide block stroke		Mm	0-40	0-60	0-70	0-80	20-120	20-120	10-130
Number of stroke		min	170	145	125	60	55	50	45
Max die set height		Mm	105	130	170	180	220	260	280
Die set height adjustment		Mm	20	35	30	45	70	80	80
Distance from slide block centre to the frame		Mm	110	130	170	210	260	260	270
Worktable dimensions(FB×LR)		Mm	200 310	240 360	320 480	400 600	480 710	480 710	520 860
Dimensions of worktable hole		Mm	φ60	φ120 20 φ100	φ100	φ120	φ220 25 φ180	φ200 45 φ180	φ200 45 φ180
Thickness of boiister		Mm	40	50	60	70	80	90	100
Hole dimensions in bed(diameter×FB×LR)		Mm	φ140 110 160	φ130 90 180	φ210 160 240	φ180 130 260	φ200 150 300	φ250 200 340	φ250 200 340
Dimensions of side block botton surface(FB×LR)		Mm	120 140	150 170	180 200	210 250	270 320	280 320	280 380
Size of the handle hole(diameter×depth)		Mm	φ30 55	φ30 55	φ40 60	φ40 70	φ50 70	φ50 80	φ60 75
Max.tilting angle of body		degree	30	25	25	25	25	25	20
Distance between columns od body		Mm	150	180	220	260	300	350	410
Motor	Type		Y2-90S-6	Y2-90L-6	Y2-100L-6	Y2-100L1-4	Y2-132M1-6	Y2-132M2-6	Y2-160M-6
Motor	Power	Kw	0.75	1.1	1.5	2.2	4	5.5	7.5
Outline dimension(FB×LR×H)		Mm	780 610 1505	915 700 1690	1150 900 1910	1325 990 2140	1600 1180 2310	1810 1350 2640	1810 1410 2790
Net/Gross weight		Kg	360 510	600 790	1080 1405	1900 2300	3180 3850	4200 4700	5280 5780

This machine is also can be customized

Nantong Haven Machinery Co., Ltd. is specialized in manufacture metal forming machinery

And equipment, such as Hydraulic Press, Hydraulic Press Brake, Hydraulic Shearing Machine, Hydraulic Rolling Machine and other metal forming machine. Our business scope also includes

Contracting overseas projects and engineer training services with over 20 years experience, our

Products have been exported to more than 40 countries and regions, that including German, USA,

Canada, UK, Poland, Spain, Netherlands, Denmark, Greece, Australia, New Zealand, Singapore,

Malaysia, Thailand, India, Indonesia, Middle East countries etc. To supply better service for Euro

Customer and South East Asia customer, we also have set branch company in Poland and Malaysia.

HAVEN has its own workshop in Haian county of Nantong city, we have professional quality control

Team who can inspect every machine carefully in our workshop before delivery. Our target is: High

Quality, excellent service, efficient co-operation, reliable honesty.

HAVEN releases products information through Made-in-China over 9 years ( has passed the SGS

Certificate for AUDITED SUPPLIER ) and Alibaba over 8 years ( has passed GOLDEN SUPPLIER

ASSESSMENT, Bureau Veritas Certificate), we will keep spirit of innovation to improve our machine

Both inner quality and appearance. You are welcome to visit our website and contact us, We will give

You quick response upon any of your requirement.
