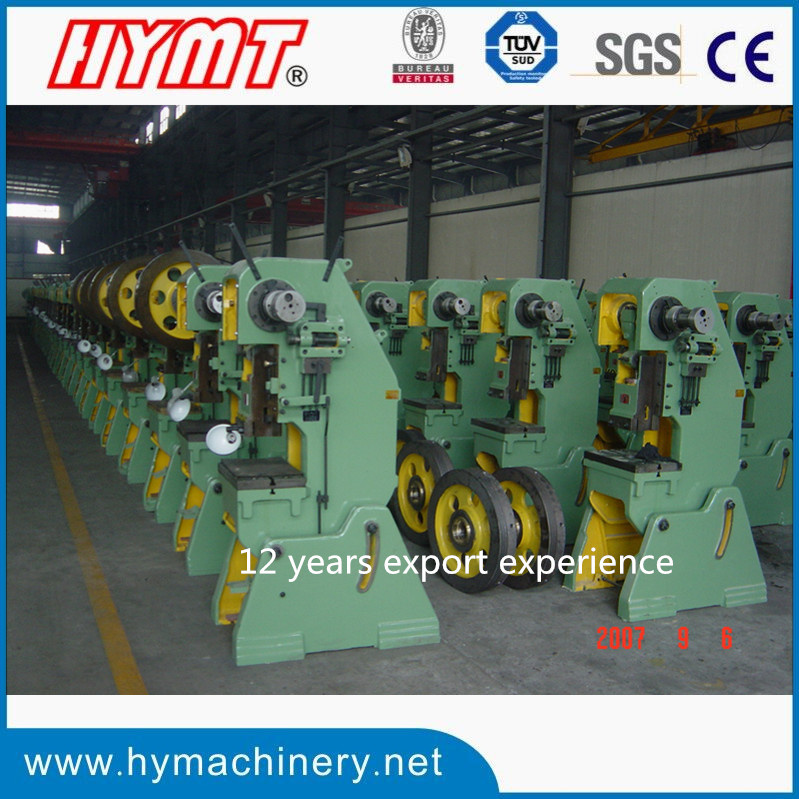

J23 series open back power press punching machine

Prod Model:	J23 series
Control Voltage:	24V
Type:	General Punching Machine
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Power Source:	Pneumatic
Precision:	High Precision

Product Description

C-Frame Inclinable worktable Mechanical Power Press(J23 series):
1. Cast and Inclinable Frame, To ensure the high rididity and less deformation
2. Turn-Key and rigid clutch, with flexible movement and reliable performance.
3. Crankshaft placed crosswise, V-Type guides to the slide in high accuracy.
4. Emergency brake device, to control the slight stop at any position.
5. Adop double cylinder balanced structure for above 80 Ton
6. Opton with Photoelectic protector, transmission output axle, Feeder, air cushion as per customer's demand.

Parameters		Unit	J23- 6.3	J23-10	J23-16	J23-25	J23-35	J23-40	J23-63	J23-63	J23-80	J23-100	J23-125
Nominal  pressure    on  sliding    block		KN	63	100	160	250	350	400	630	630	800	1000	1250
Nominal  pressure    stroke  Sp		mm	2	2	2	2.5	3.5	6	6	7	7	7	8
Slide stroke		mm	35	45	55	65	80	90	110	110	120	140	150
Stroke frequency	Fast speed	times/ min	170	145	120
	Low speed					55	50	45	50	40	38	38	35
Die height		mm	150	180	220	270	290	320	360	390	440	480	500
Die Height Adjustment		mm	30	35	45	55	60	65	80	80	90	100	100
Distance between slider center and machine		mm	110	130	160	200	220	250	260	310	350	380	390
Vertical columns distance		mm	150	180	220	270	280	340	350	420	450	560	550
Slider bottom size	L-R	mm	140	170	200	250	250	300	300	400	430	540	540
	F-B	mm	120	150	180	220	220	220	260	360	360	480	480
Size of handle hole	Diameter	mm	30	30	40	40	40	50	50	50	60	60	60
	Depth	mm	55	55	60	60	60	70	70	70	75	75	75
Size of worktable	L-R	mm	310	370	450	560	610	700	760	860	950	1080	1100
	F-B	mm	200	240	300	370	400	460	480	570	650	710	720
Thickness of worktable		mm	30	35	40	50	60	65	80	80	100	120	130
Max. inclination angle			45	35	35	30	30	30	30	20	20	15	13
Worktable height		mm	750	730	750	800	815	850	810	850	850	850	860
Size	F-B	mm	780	900	1150	1345	1460	1721	1810	1958	2060	2254	2200
	L-R	mm	620	665	847	950	1058	1335	1350	1500	1715	1790	1790
	High	mm	1503	1658	1910	2130	2225	2488	2740	2868	3290	3625	3590
Anchor bolts distance	F-B	mm	530	610	780	920	1020	1060	1180	1300	1360	1550	1710
	L-R	mm	314	394	450	600	650	750	850	920	1010	1130	1110
Power of electric motor		KW	0.75	1.1	1.5	2.2	4	5.5	5.5	7.5	7.5	11	11
Weight(Approximate)		KG	420	595	1095	1830	2650	3600	4200	5580	8020	10800	12035

 Our services:
1.Standardization of Service "212"
2: response in 2 hours
1: provide solution in 1 day
2: solve complaint in 2 days
2.Installation Service
Installation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.
3.Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you
 may send your technician to our company to learn how to operate machines.
4.Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
