Prod Model: |
J23-16 |
Nominal Force: |
160 |
Slide Block Stroke: |
55 |
Number Of Stroke: |
125 |
Max Die Set Height: |
160 |
Worktable Size: |
300X450 |
Main Motor: |
1.5 |
Machine Size: |
115*90*191 |
Net Weight: |
1080/1405 |
Product Description

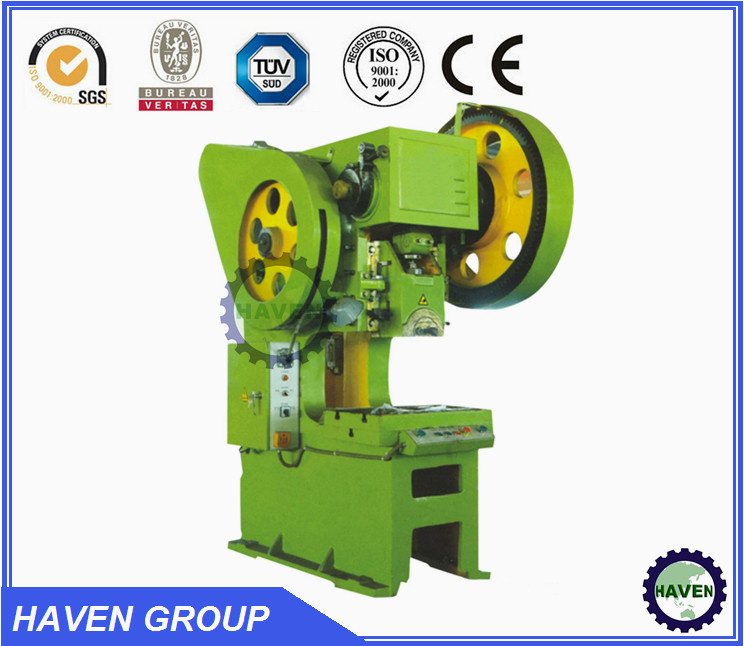

J23 type power press with punching machine
Characteristic:
J23 series is a common type press, with simple construction, reliable and easy to operate .
J23 series model D press with adjustable stroke, Stroke adjustable press
Adopts horizontally placed crankshaft.
Stroke adjustment device mounted on crankshaft.
Rigid rotated bond Clutch.
Manual shut height adjustment with scale display
Main specification:
| JC23-6.3D | J23-10D | J23-16D | J23-25D | J23-40D | J23-63D | J23-80D |
Nominal forece | KN | 63 | 100 | 160 | 250 | 400 | 630 | 800 |
Stroke under nominal force | Mm | 2 | 2 | 2 | 2.5 | 4 | 4 | 5 |
Slide block stroke | Mm | 0-40 | 0-60 | 0-70 | 0-80 | 20-120 | 20-120 | 10-130 |
Number of stroke | min | 170 | 145 | 125 | 60 | 55 | 50 | 45 |
Max die set height | Mm | 105 | 130 | 170 | 180 | 220 | 260 | 280 |
Die set height adjustment | Mm | 20 | 35 | 30 | 45 | 70 | 80 | 80 |
Distance from slide block centre to the frame | Mm | 110 | 130 | 170 | 210 | 260 | 260 | 270 |
Worktable dimensions(F*B×L*R) | Mm | 200 310 | 240 360 | 320 480 | 400 600 | 480 710 | 480 710 | 520 860 |
Dimensions of worktable hole | Mm | φ60 | φ120 20 φ100 | φ100 | φ120 | φ220 25 φ180 | φ200 45 φ180 | φ200 45 φ180 |
Thickness of boiister | Mm | 40 | 50 | 60 | 70 | 80 | 90 | 100 |
Hole dimensions in bed(diameter×F*B×L*R) | Mm | φ140 110 160 | φ130 90 180 | φ210 160 240 | φ180 130 260 | φ200 150 300 | φ250 200 340 | φ250 200 340 |
Dimensions of side block botton surface(F*B×L*R) | Mm | 120 140 | 150 170 | 180 200 | 210 250 | 270 320 | 280 320 | 280 380 |
Size of the handle hole(diameter×depth) | Mm | φ30 55 | φ30 55 | φ40 60 | φ40 70 | φ50 70 | φ50 80 | φ60 75 |
Max.tilting angle of body | degree | 30 | 25 | 25 | 25 | 25 | 25 | 20 |
Distance between columns od body | Mm | 150 | 180 | 220 | 260 | 300 | 350 | 410 |
Motor | Type | | Y2-90S-6 | Y2-90L-6 | Y2-100L-6 | Y2-100L1-4 | Y2-132M1-6 | Y2-132M2-6 | Y2-160M-6 |
Power | Kw | 0.75 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 |
Outline dimension(F*B×L*R×H) | Mm | 780 610 1505 | 915 700 1690 | 1150 900 1910 | 1325 990 2140 | 1600 1180 2310 | 1810 1350 2640 | 1810 1410 2790 |
Net/Gross weight | Kg | 360
510 | 600
790 | 1080
1405 | 1900
2300 | 3180
3850 | 4200
4700 | 5280
5780 |
This machine is also can be customized
