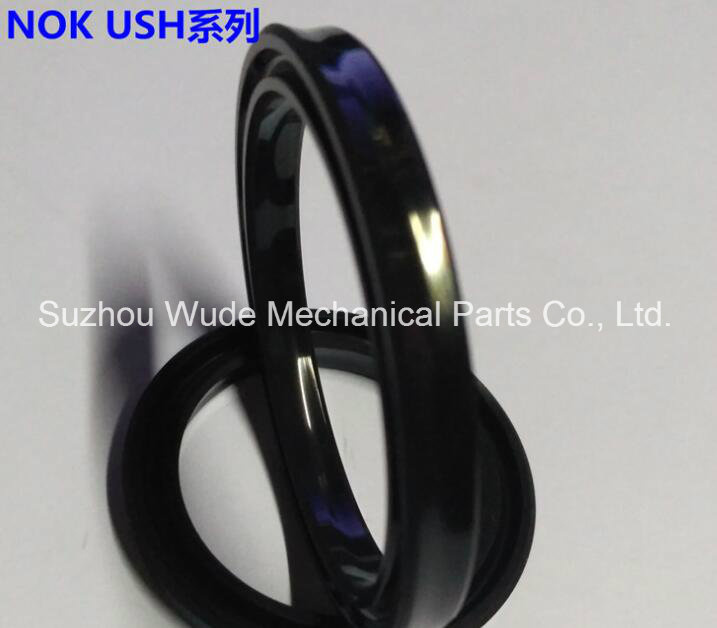

Japanese Nok Oil Seal Injection Molding Machine Oil Cylinder Seals High Pressure Wear Seal Ush.
| Price: |
US $ 0.01-5/Piece |
| Min Order: |
3000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
NOK-1 |
| Temperature: |
-25 Centigrade - 250centigrade |
| Hardness: |
75-90 Shore |
| Color: |
Black,Brown, or Color Required |
| Application: |
Automobile, Engineering Machinery,Agricuture |
| Certificates: |
SGS |
| Shipping: |
by Sea,by Air,by Railway |
| Usage: |
Industrial |
| Standard: |
Nonstandard |
| Material: |
Viton |
Product Description

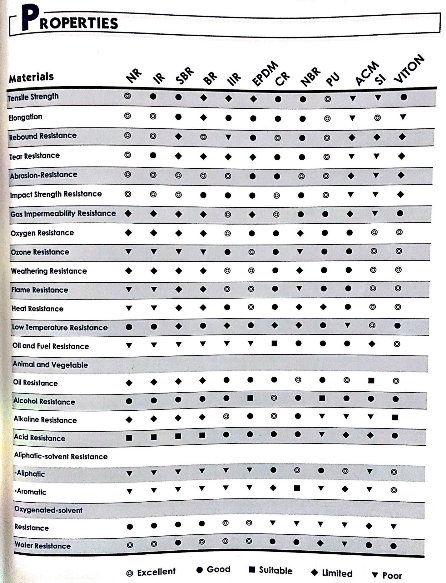

PROPERTIES
SHAFT SPEEDS AND LIP MATERIALSAn important consideration when selecting the lip material is the shaft speed (measured in rotations per minute),circumferential speed (measured in feet per second),and shaft diameter(measured in inches).These conditions determine whether or not a given elastomer will operate properly.

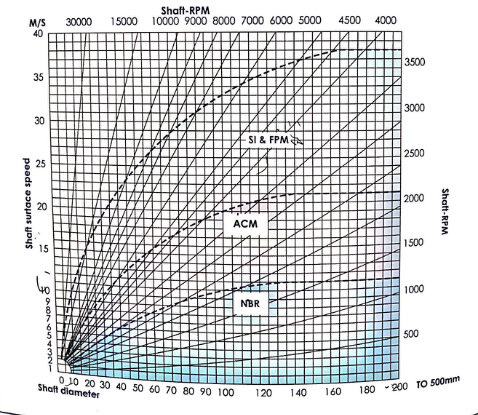

The graph below offers general guidelines for determining the compatibility of silicone.fluorocarb
-on,polyacrylate and nitrile with specific shaft and circumferential speed.For more information,ple
-ase contact with us.
METAL CASE AND SPRINGThe other major components of an oil seal are the metal case and garter spring.
Below lists the material specification MKS uses of its components.

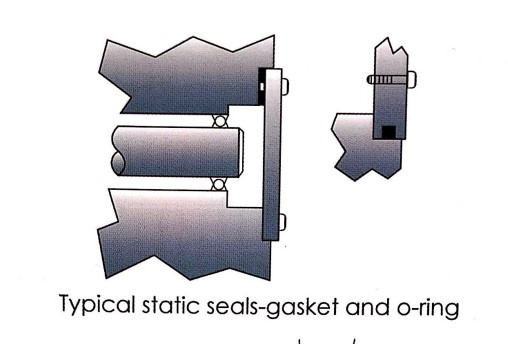

There are basic types of seals:1) Static Seals:
The function of a static seal is to creat a barrier between non-moving surfaces. Typical examples would be a valve cover gasket or O-ring.

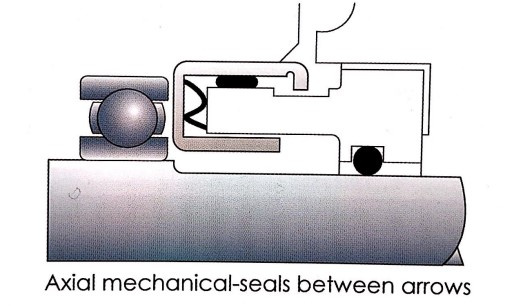

2) Axial Mechanical Seals:
These are face type seals in which the sealing contact is between radially mounted components. One is usually stationary and seal contact pressure is applied by a spring mechanism.

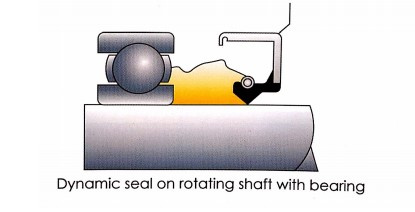

3) Dynamic "Radial"Seals:
A dynamic radial seal creates a barrier between surfaces in relative motion. One is usually stationary while the other rolates.The cross-section shown below identifies the most common parts of a shaft seal.
FITS&TOLERANCES:| Bore Diameter | Bore Tolerance | Nominal Press Fit | Seal O.D.Tolerance |
| Inch | Inch | Inch | Inch |
| Up to 3.000 | ±.001 | .004 | ±.002 |
| 3.001 to 4.000 | ±.0015 | .005 | ±.002 |
| 4.001 to 6.000 | ±.0015 | .006 | +.003 |
| 6.001 to 8.000 | ±.002 | .006 | -.002 |
| 8.001 to 9.000 | ±.002 | .007 | +.006 |
| 9.001 to 10.000 | ±.002 | .007 | -.002 |
| 10.001 to 12.000 | ±.002 | .007 | +.006 |
SHAFT RECOMMENDATIONSShaft Diameter ToleranceUp to 4.000 shaft ±.003
4.001 to 6.000 shaft ±.004
6.001 to 10.000 shaft ±.005 PRESSURE LIMITSShaft Speed-FPM Maximum Pressure-PSI0-1000 7
1001-2000 5
2001 and Higher 3 ECCENTRICITY LIMITSSpeed Range Max.Misalignment Max Shaft Run-Out0-800 RPM 0.015 in ECC 0.025 IN TIR 800-2200 RPM 0.010 in ECC 0.020 IN TIR 2200-4200 RPM 0.010 in ECC 0.015 IN TIR For Further require, please kindly connect with us,Thanks
Suzhou Wude Mech delicates to the research and produce the blue belt which has best quality and highly trasmission perfermance in the Wheat, Rice and Combine Harvester. We have the most advanced production equipment and technology, import the best and special raw material. "ZhongXiang Blue Belt" has been widely used in different domestic harvester producing factory and after sales market, such as Star Harvester, World Harvester, FengYuan Harvester, Zoomlion Harvester, AGCO Harvester, Sida Harvester, etc. We are keep working on improving the quality and research the best and durable belt. We have worked and copperate with our clients from the design to the production work, We have been clients best coworker and loyal parnter.
Suzhou Wude Mechanical Parts Co., Ltd also contributes to the accessories industries, such as Oil seal, Filter, DC Conductor. Wheel Rim, etc. We aim to be the professional and efficient parts company which provide and offer the whole package service for our clients.
Professional Produce, Passional Service, Precision meets permission! We are looking forward to our cooperation!
