| Prod Model: |
JBW-500B |
| Type: |
Impact Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC380V |
| Maxcapacity: |
250j/500j |
| Oil Cylinder Position: |
Without |
Product Description
Computer display impact test equipment price with software
1. Application

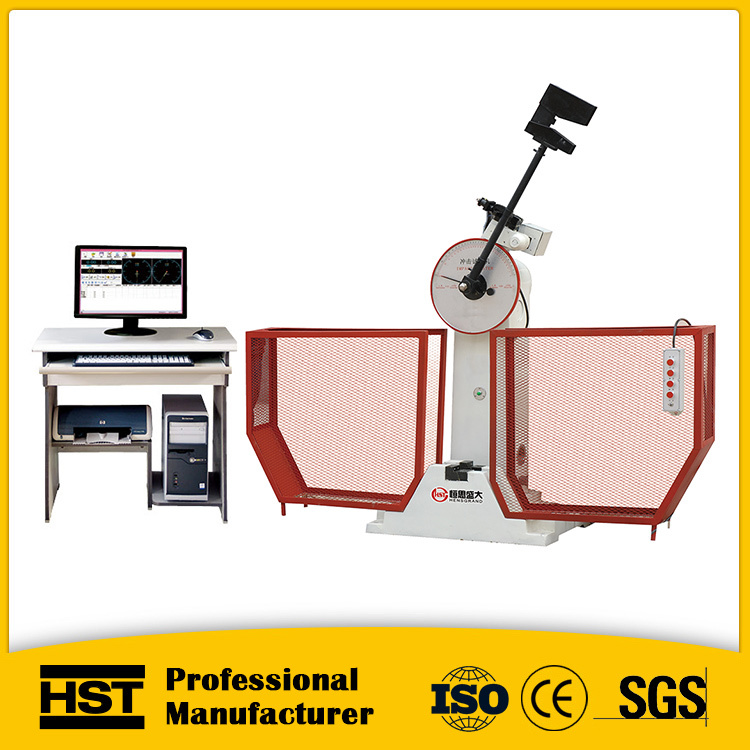

JBW-B series Computer Display Semi Automatic Pendulum Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load.
2. Standards:
ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-2007.
3. Features:
3.1 Can realize pendulum rising→impact→measurement→calculating→screen digital display→print
3.2 Safety pin guaranties the impact action, standard protection shell to avoid any accident.
3.3Pendulum will automatically rising and ready for next impact action after specimen breakout.
3.4With two pendulums (big and small), PC software to display the energy loss, impact tenacity, rising angle, test average value etc. test data and result, also the curve display available; .
3.5 Single supporting column structure, Cantilever hanging pendulum way, U-shaped pendulum hammer
4.Main Technical Specifications:
| Model | JBW-300B | JBW-500B | JBW-700B |
| Display | computer Display semi automatic |
| Min reading value | 1 J | 2J |
| Impact energy | 150/300J | 250/500J | 500/750J |
The distance between the
pendulum shaft and impact point | 750mm | 800mm | 850mm |
| Impact speed | 5.2m/s | 5.4 m/s | 5.9 m/s |
| Pre-rising angle of the pendulum | 150° |
| Specimen bearer span | 40+0.2mm |
| Round angle of bearing jaw | R1.0-1.5mm |
| Round angle of impact blade | R2.0-2.5mm,(R8mm) |
| Thickness of impact blade | 16mm |
| Angle accuracy | 0.1° |
| Standard specimen dimension | 10mm×10mm×55mm |
| Sample box capacity | 10 pcs |
| Power supply | 380V, 50Hz , 3 wire and 4phrases |
| Dimensions (mm) | 2124 x 600 x 1340 | 2200 ×650 ×1960 | 2450*1200* 2455 |
| Net Weight (kg) | 450 | 580 | 1300 |
5. Standard Accessories
5.1 Automatic impact Main unit----1 set
5.1.1Pendulum --2pcs
5.1.2 S=12 Internal hexagonal wrench--1pc
5.1.3 Bearing adjustment-- 1pc;
5.1.4 Sample centering--1pc;
5.1.5 Pendulum stripper-- 1pc
5.1.6Anchor bolts (M16x300mm)---4 pcs
5.1.7 Impact testing security guards----1 pc
5.2 Measuring and control system:
5.2.1 High precision optical encoder-- 1pc5.2. LENOVO computer--1 set;
5.2.3 HPA4 Colorful ink jet printer--1pc
5.2.4 Special measuring and control system--1SET
5.2.5 Under Windows operating environment special control system--1set
