| Prod Model: |
Jdk-Kl004 |
| Main Diameter Size: |
350-2000mm |
| Cutting Material: |
Sandstone/Lava Stone/Volcanic Rock |
| Core Thickness: |
2.2-8.0mm |
| Manufacturing Arts: |
Sinter |
| OEM&ODM: |
Yes |
| Customized: |
Customized |
| Export Area: |
Global |
| Brand: |
Jdk |
| Delivery Time: |
3-7days |
| Shipment: |
by Air/by Express/by Sea |
Product Description

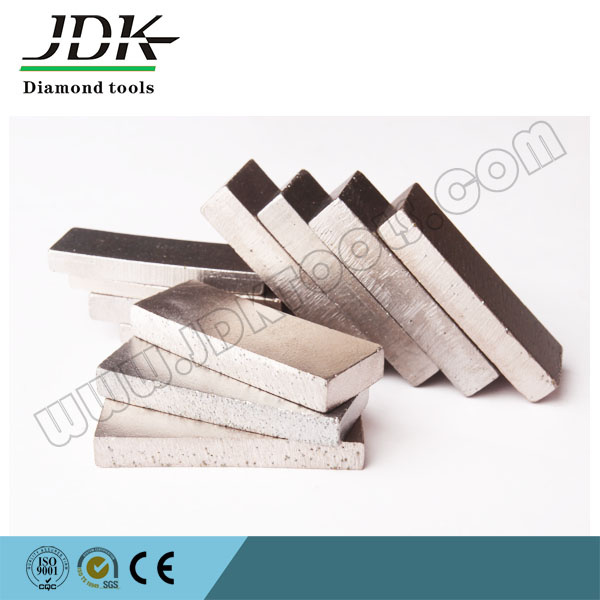

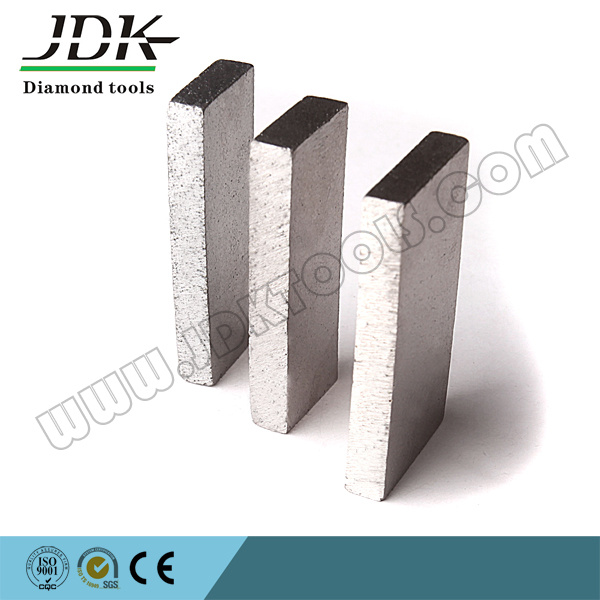

| Semgent For Sandstone (Product Code :JDK-SFS) |
| Features: | | | | | |
| 1.Good sharpness and high cutting efficiency with long life. |
| 2.Smooth cutting with surface and even size. |
| 3.Stable cutting with narrow cutting gap,stone waste reduction |
| Product Name | Specification | Core Thickness | Segment Dimension | Segment Number | Application |
| JDK Blocking Cutting Segment | Φ350 | 2.2 | 40x3.5x15 | 24 | Sandstone |
| Φ400 | 2.6 | 40x3,6x15 | 28 |
| Φ500 | 3.0 | 40x4.2x15 | 36 |
| Φ600 | 3.6 | 40x5.0x15 | 42 |
| Φ800 | 4.5 | 40x6.0x15/16 | 46 |
| Φ900 | 5.0 | 40x7.0x16 | 64 |
| Φ1000 | 5.0 | 40x7.5x16 | 70 |
| Φ1200 | 5.5 | 24x8.5x15 | 80 |
| Φ1600 | 7.2 | 24x9x15 | 108 |
| Φ1800 | 7.5 | 24x10x15 | 120 |
| Φ2000 | 8.0 | 24x11x15 | 128 |
| Other specification are available upon request. |
Our Feature:Factory == Own Exporting License == Quality Control == Competitive Price == Own Technology == OEM
Our Advantage:1. Manufacturer with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
Payment:T/T, Western Union, L/C, Cash
Delivery time:For samples, shipped within 3 days after receiving the deposit,
For regular order, around 3-7 days, depends on the quantity of your order.
Packing:The inner packaging is carton box .The outer packaging is carton box Or woodencase.(If by air ,carton box will reduce the weight, if by sea, we suggest woodenbox for waterproof.
Shipment:<45kg, express service is recommonded
>45kg, air or sea is a better choice 45kgs
