| Prod Model: |
DH9-7624 |
| Name: |
Vacuum Brazed Diamond Core Bits |
| Technology: |
Vacuum Brazed |
| Use: |
Dry/Wet |
| Application: |
Stone,Glass, Porcelain |
| Shank: |
Hexagon Shank/Round Shank |
| Thread: |
M14, 5/8"-11 |
| Quality: |
Premium |
| Grits: |
30# 40# 50# |
| Advantageous: |
High Efficiency |
| Contact: |
David Huang |
Product Description

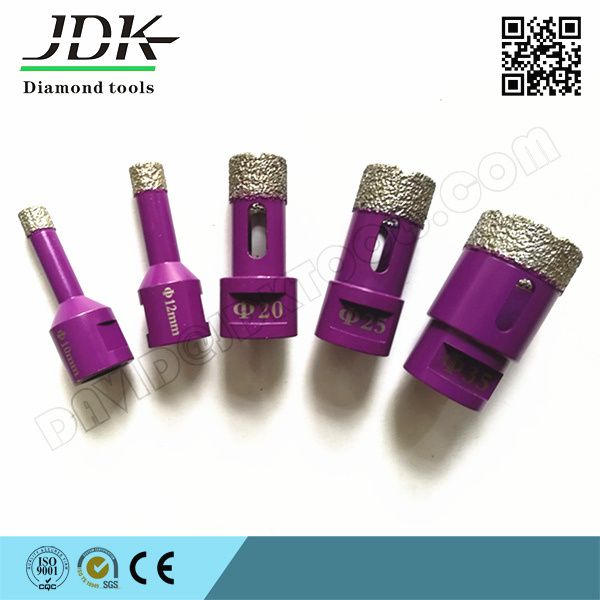

JDK Reinforced Vacuum Brazed Diamond Core Drilling Bits
Product Description
Brazed Core Drill, is mainly used for drilling granite, marble, ceramic, glass, etc., wet and dry can be used. Processing of high efficiency, long service life, good chip removal performance.
Features of Brazed Core Drill
1. Fast, smooth drilling and long life;
2.Competitive price
3. Superior performance and durability.
4. Grit:#30,#40,#50,as customer request
5. Thread:M14 & Hexagonal Shank & Round Shank
6.Diamond Tip Height: 10mm
7.Size: 8mm-120mm
8.Support OEM
Advantages of Brazed Core Drill
*For drilling granite, marble, ceramic, glass, etc.
*Perfect safety, excellent fast, high efficiency and complicated shape
*Rather longer life than the electroplated tools.
*Various diamond grain and grade to meet various application-cutting, drilling, grinding.
*Environment friendly
*Special application and design are available upon request
| Diameter | Grit | Diamond Width | Effective Total Length | Tested material
/ ralation rate |
| 6mm | #40 | 10mm | 40/60mm | The glazed tile (thickness:10mm)/n=11000r/min |
| 8mm | #40 | 10mm | 40/60mm | |
| 10mm | #40 | 10mm | 40/60mm | |
| 12mm | #40 | 10mm | 40/60mm | |
Quanzhou JDK Diamond Tools Co., Ltd. is one professional manufacturer of diamond tools in China, specially for the stone working industry. The main products are stone cutting Diamond Saw Blades, Kinds of Diamond Segments, Diamond Abrasives, etc...For over 12 years development with the support of JDK's Customers, suppliers and Staffs, now JDK is supplying big range stone cutting, Grinding & Polishing tools to the world.
JDK was established in 1995, initially JDK was producing and selling diamond tools products to China domestic market. Since 2000 year JDK is aiming at the world market and started to design and produce superior performance diamond tools to meet kinds of requirements of customers from all over the world. with these years export experiences now JDK is exporting his diamond tools products to over 30 countries which is in Europe, Middle East, Asia, America, etc...
JDK's experienced Engineer and R&D team are providing customers quality stone tools for cutting, grinding, polishing, milling, drilling, such as diamond saw blade, diamond segments, Diamond Wire Saw, Diamond abrasives, Flexible Polishing Pads, Grinding Cup Wheels, Core Drill Bits, ...
Always, JDK's target: Offer you most satisfied products and service, developing together.
