| Price: | Negotiable/Piece |
|---|---|
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | JDK- Saw blade |
|---|
JDK T Brazed Diamond saw blade for Granite cutting packing & delivery :
Packing details : box / carton / wooden case
Delivery : shipped in 3 days after payment
JDK T Brazed Diamond saw blade for Granite cutting Product Description
"T" Brazed Blade and Semgent (L20) (Product Code : JDK-TG )
1.Unique 'T" design of segment side face allows ideal debris removal and better cooling.
2.Comparing to the long segment (L-40),this short segment (L20) design makes better sharpness and cutting efficiency.
3.This special design will not allow easy edge collapse,break,tapered slab etc.
Specification Core Thickness Segment Dimension Segment Number Application
Φ300 2.2/2.0 20x3.6/3.3/3.0x15(20) 38 Granite
Φ350 2.4/2.2 20x3.6/3.3/3.0x15(20) 46
Φ400 2.8/2.4 20x4.0/3.7/3.4x15(20) 52
Φ450 2.8/2.6 20x4.3/4.0/3.7x15(20) 60
Φ500 3.2/2.8 20x4.3/4.0/3.7x15(20) 66
Φ550 3.2/3.0 20x5.0/4.7/4.4x15(20) 72
Φ600 3.6/3.2 20x5.0/4.7/4.4x15(20) 80
Φ650 4.0/3.6 20x5.0/4.7/4.4x15(20) 84
Φ700 4.0/3.8 20x5.4/5.1/4.8x15(20) 90
Φ800 4.5/4.2 20x6.0/5.7/5.4x15(20) 100

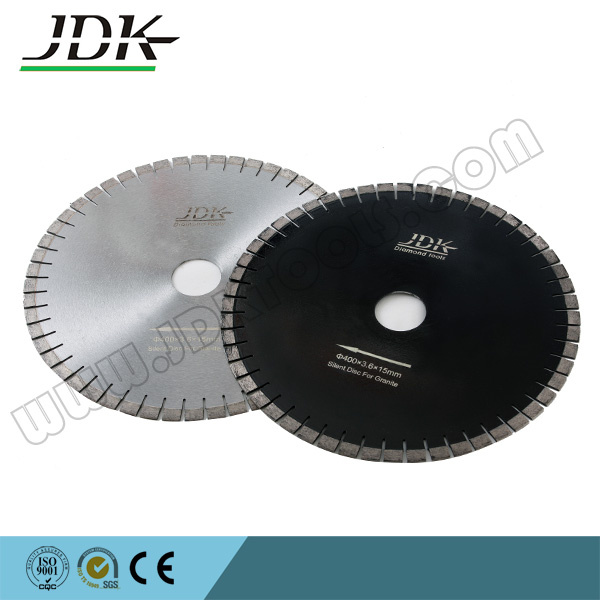

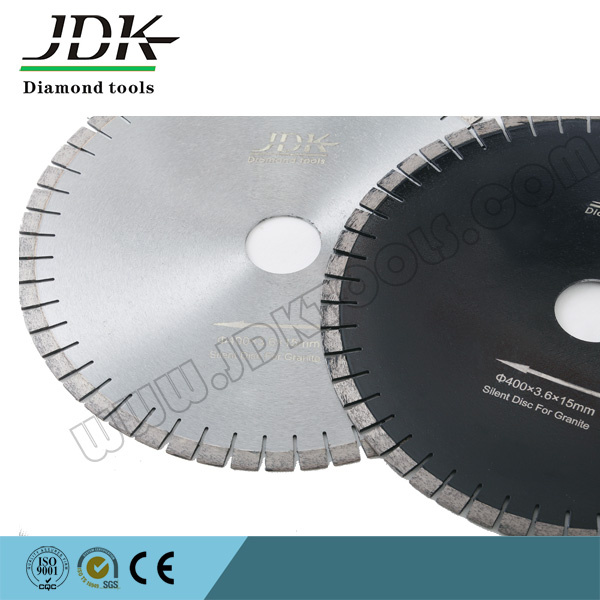

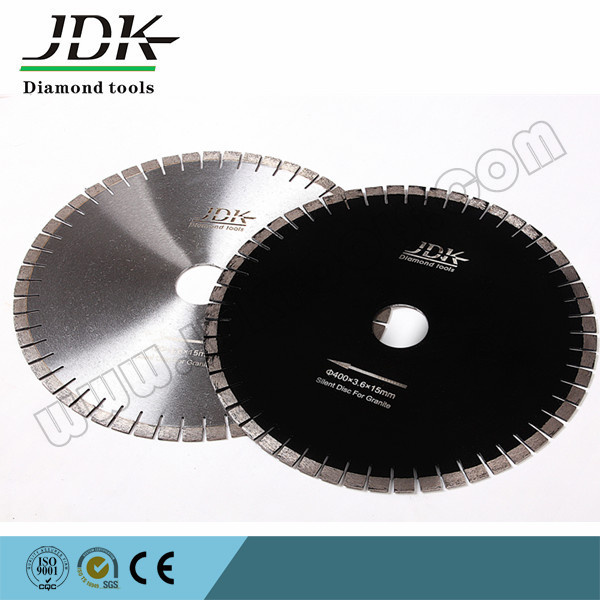

JDK T Brazed Diamond saw blade for Granite cutting Product show :
JDK T Brazed Diamond saw blade for Granite cutting Packing & shipping
Packaging:
Inner package is carton box, outside package are choose according to the transport way. By air used carton packing to reduce the weight and by sea, use wooden cases for waterproof.
Shipment:
For Less than 45kgs, we would suggest ship them by couriers by DHL, FedEx, UPS, EMS and so on. For 45-200kgs, if you need the cargo urgent, we would suggest ship them by air. And for very heavy and bulky cargo, by sea is our best choice.
Our advantage:
1. Manufactory with more than 15 years experience
2. A great quantity of formula special for all kinds of different stone
3. Approved quality with factory competitive price
4. Long lifespan, good sharpness, stable performance and high cutting efficiency
5. Sandwich, groove type segment with shape straight, trapezia, boatshape, K, V, etc
6. Custom-design can be meet upon request, small trial order available any time, sample for testing can be delivery in very short time.
