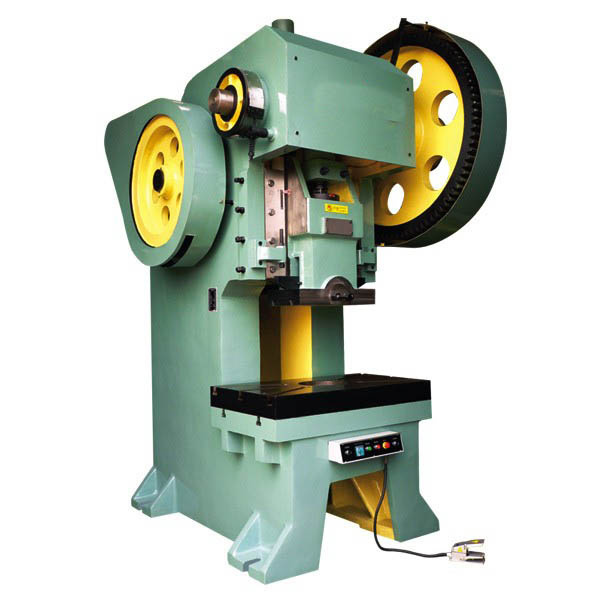

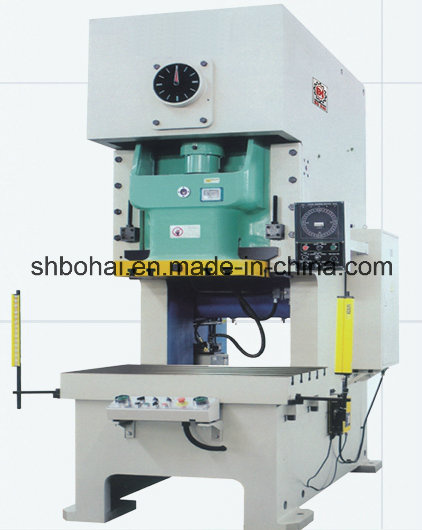

Jh21 Series Open Back Power Press with Dry Clutch and Hyraulic Overload Protector
| Price: |
US $ 1900/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
JH21-63 |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Joint Drive |
| Precision: |
Precision |
Product Description
JH21 SERIES OPEN FIXED PLATE FORM PRESSI. Main Feature Universal high performance presses are widely used in the fields of aeronautics, auto, agriculture machines, electric machines, apparatuses and meters, medical equipments, electrical home appliance and hardware.
1. Welded frame with quality steel which means good rigidity.
2. Square figure long guide with six friction faces makes abrasion resistant and punching precision.
3. Hydraulic overload protector has sensitive response and reliable motion, which can protect the die when overloading
4. Combined pneumatic clutch and brake are made of friction material, which means long service life.
5. Closed gear-driven dipped in lube, which drives stably with low noise.
6. Slide with counter balancer, which will eliminate the clearance and improve the stability and precision.
7. Intermittent auto lubrication makes every point get fine and safe lubrication. Thus, long service life is saved.
8. PLC electric control system is safe and reliable
9. Air cushion, photo guard, auto feeder and speed die changing are optional.

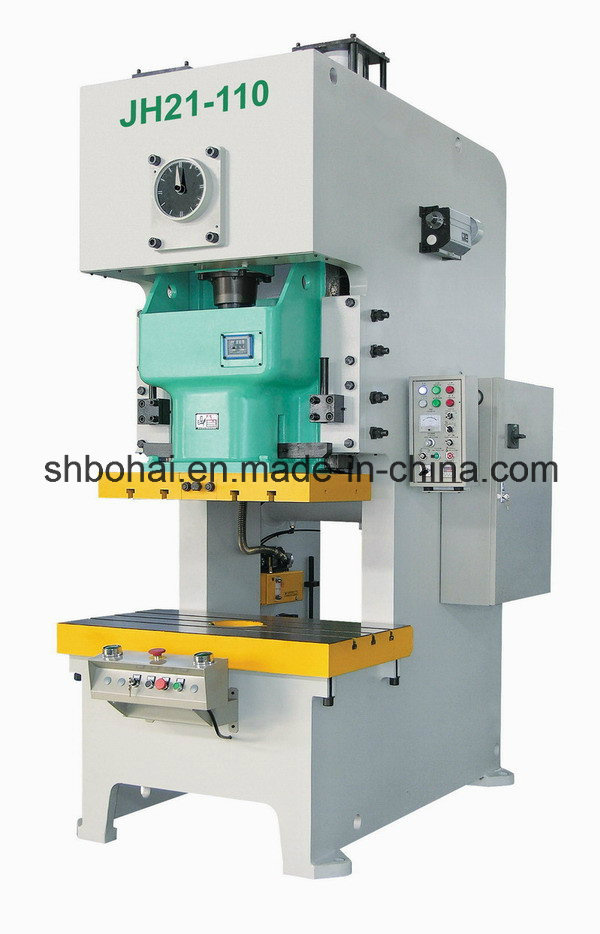

II. Technical Data| ITEM | UNIT | JH21-25 | JH21-45 | JH21-60 | JH21-80 | JH21-125 | JH21-160 | JH21-200 | JH21-250 | JH21-315 | JH21-400 |
| Nominal Capacity | KN | 250 | 450 | 600 | 800 | 1250 | 1600 | 2000 | 2500 | 3150 | 4000 |
| Slide Stroke | mm | 80 | 120 | 140 | 160 | 180 | 200 | 220 | 250 | 250 | 270 |
| Slide Strokes | Fixed | Times/min | 100 | 80 | 70 | 60 | 50 | 45 | 45 | 30 | 30 | 30 |
| Variable(optional) | Times/min | 60-100 | 50-80 | 45-70 | 40-60 | 35-50 | 30-45 | 25-45 | 20-30 | 20-30 | 20-30 |
| Max. Die Height | mm | 250 | 270 | 300 | 320 | 350 | 400 | 450 | 500 | 500 | 550 |
| Die Height Adjustment | mm | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 120 | 120 |
| Throat Depth | mm | 210 | 225 | 270 | 310 | 350 | 400 | 430 | 450 | 450 | 490 |
| Distance Between Uprights | mm | 450 | 515 | 560 | 610 | 670 | 736 | 910 | 980 | 980 | 1050 |
| Slide Bottom Size | FB | mm | 250 | 340 | 400 | 460 | 520 | 580 | 650 | 700 | 700 | 750 |
| LR | mm | 360 | 410 | 480 | 540 | 620 | 700 | 880 | 950 | 950 | 1020 |
| Shank Hole Size | Diameter | mm | 40 | 50 | 50 | 50 | 70 | 70 | 70 | 70 | 70 | 70 |
| Depth | mm | 65 | 60 | 70 | 65 | 90 | 100 | 100 | 130 | 130 | 130 |
| Bolster Size | FB | mm | 400 | 440 | 520 | 600 | 680 | 760 | 840 | 880 | 880 | 950 |
| LR | mm | 720 | 825 | 930 | 950 | 1100 | 1170 | 1390 | 1500 | 1540 | 1700 |
| Thickness | mm | 80 | 110 | 130 | 140 | 155 | 165 | 180 | 190 | 190 | 210 |
| Bed Opening Hole Diameter | mm | 150 | 150 | 150 | 180 | 200 | 220 | 250 | 270 | 270 | 290 |
| Overall Dimensions | FB | mm | 1496 | 1585 | 1540 | 1765 | 2040 | 2305 | 2600 | 2660 | 2720 | 2850 |
| LR | mm | 945 | 1075 | 1200 | 1200 | 1320 | 1420 | 1540 | 1640 | 1680 | 1750 |
| Height | mm | 2120 | 2391 | 2570 | 2725 | 3035 | 3215 | 3800 | 3865 | 3865 | 4150 |
| Motor Power | KW | 3 | 5.5 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 |
III. Our Services 1.) We can send our engineer to your factory and do the training for your workers. You will bear the cost for our engineer's air ticket,visa,accormadation,food and transportations in your country2.) You can send your workers to our factory. We will teach them how to operate the machine with no training charges3.) Actually there is another better way to choose. Every machine leaves our factory with one book of operation manual. You can first read through the manual and get familiar with the machine. Then we can video call and teach you on-line how to operate the machine. Apart from above training course, we also provide 2 year warranty for all the easily broken part of the IV. Company profile BOHAI (Shanghai Bohai Machinery Factory) has been manufacturing sheet metal machinery since 1989. We are a privately owned company with a unique culture. We believe that the only way to create jobs is to manufacture quality. This is echoed in our slogan; We provide comprehensive technical support and can provide expert advice at any stage to ensure we fully understand your requirements and the best option. The Products range includes:WD67Y Series Hydraulic Press BrakeWD67K Series NC Press BrakePSK Series Full CNC Press Brake (Hydraulic Crowning)PPBH Series Full CNC Press Brake (Mechanical Crowning)QC12K Series Hydraulic Swing Beam ShearQC11K Series Hydraulic Guillotine ShearW11 Series Mechanical Roll bending machinePunching Machine(J23,JH21 Series)Hydraulic PressHAVC Duct Machinery V. Way of contact
