| Prod Model: |
JY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
for Making The Shampoo/Lqiud Soap/Hand Soap, etc |
| Capacity: |
500L/1000L/2000L/3000L/5000L/10000L |
| Material: |
SUS316L |
| Structure: |
Vacuum Type/Flat Type |
Product Description

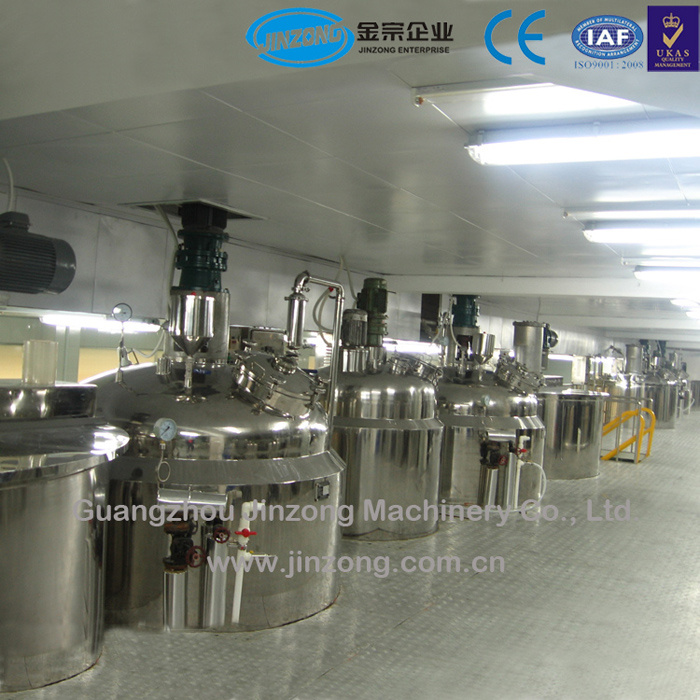

Jinzong Machinery High quality shampoo mixer
*Application:
To produce liquid washing products, like shampoo, liquid soap, bath shower, body lotion, dish washing, hand washing, lubricating oil, fabric softener, liquid cloth cleaner etc.
*Feature:
Our mixer has various types, and we can collocate the production line flexiblely according to customer's production scale and technology, such as to add pretreatment boiler, cooling tank and conveying pump etc, this greatly helps to improve the production efficiency and save energy.
*Shampoo mixer's Advantage:
High speed disperser .might mixing and disperse viscously, solid and liquid etc. various kind of raw material will be dissolve which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production and shorten production period.
1. Main adopts stepless timing device which reduce babble occur under low temperature and high viscosity condition less air bubble will be formed.
2. Finished products can be discharged by valve or match a screw pump.
Technical Parameter
Model | Working Volume (L) | Volume of Pretreatment Boiler (L) | Dimensions (L x W x H) |
500 | 620 | 3 | 2200x1400x2500 |
1000 | 1250 | 4 | 2500x1700x2700 |
2000 | 2400 | 5.5 | 2750x1910x3100 |
3000 | 3600 | 7.5 | 3000x2150x3500 |
5000 | 5800 | 11 | 3200x2400x3950 |
For users with demanding requirements and large output, tow-way sitting process may be adopted in the stirring system of the liquid wash fabrication pan and the production line with the following configurations can be adopted in line with the actual con dition:
1.One fabrication tank for two or three cooling pans (generally called "One Drive Two or One Drive Three")
2.One pre-dissolution tank for several fabrication tanks and cooling tanks
3.One pre-dissolution tank for several fabrication tanks, forced condenser and cooling tank
For the above processes, several storage tanks can be configured behind the cooling tank for storage and containing still; the colling tank can be also beuseddirctly for tem porary storage tanks and be determined as per the specific proces of the user.

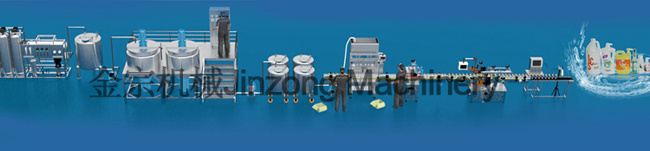

*Semiautomatic or Automatic production line
Our semi-automatic series & Automatic series shampoo Production Line has win the acknolwledge by many big enterprise, such as Guangzhou LangQi, Guangzhou LIBY, Guangzhou Tianqi etc.
Our shampoo Machine is specially designed according to user's production technics and condition, and our company can provide from design, production, installment to raw material supply, which means the complete process of the project.
*Chemical raw material and formula
We can supply chemical material and formula of all kinds of liquid detergent like dish cleaner, windows cleaner, bath shoer, hand washing, shampoo etc. to customer.
Also we manufacture all machine in the liquid detergnet production line: Pure water making machine, mixing tank, filling machine, capping machie, labeling machine and code printer and shrinking machine etc.

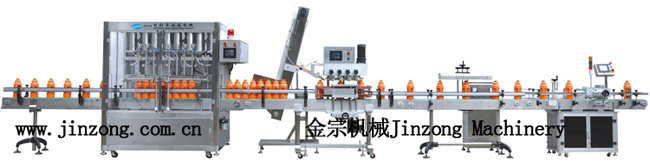

*Packaging equipment
Please let me know your bottles' size and shape, cap's size and shape, label's shape, we will make a complete solution according to your requirements for you!
*Our strength 1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
4.Have a Professional after-sales service engineering team.

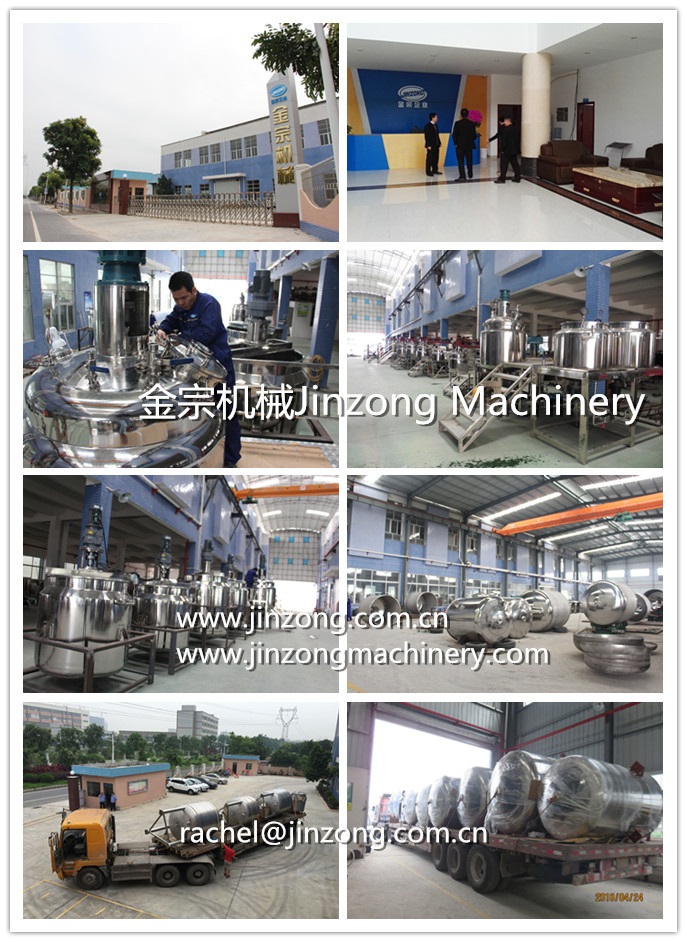

5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year
*About us:
Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, mill etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
Jinzong Machinery Co., Ltd. Specializes in manufacturing of process emulsifiers, reactors, disperser, mills, mixers, blenders, liquid-and-powder dosing systems, production system lines as well as undertaking the project construction EPC General Contractor for related industries. We provide extensive service for industries such as daily cosmetic, coating, paints, resin, adhesives, food, medicine, pesticides, and textile auxiliaries etc. Our products and service are well received by more than 6, 000 customers from over 80 countries around all over the world.
Jinzong Machinery Co., Ltd. is engaged in development R&D, sales and service for single-machine and complete production line., It is a high-tech enterprise in Guangdong Province and it has been devoting itself to product innovation and its annual R & D cost comes up to 3% of the annual turnover. Now it has acquired many invention patent and utility model patent and also has obtained awards in Guangdong Province for several times for innovation and technology transforming to achievements So far, we have formed a full range of products.
In recent years, our company has attracted a large number of excellent R&D talents and technicians, introduced advanced machining equipment and cooperated with colleges, universities and scientific research institutes such as Guangdong University of Technology to research and develop internationally advanced JRGD High-efficiency vacuum emulsifing machine, JRKB Automatic vacuum emulsifying machine, MFE intelligent high-efficiency paint production units, water-based PU resin plant, various reaction kettles, whole-set resin equipment and etc.
Jinzong Machinery Co., Ltd. is engaged in the production and manufacturing of mechanical equipment. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company we have also passed the recheck procedure in 2014. Currently, we have 2 processing bases, they are in Zhaoqing city(covering an area of more than 17000 square meters), Shaoguan city, covering an area of more than 30, 000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year, which giving strong support to undertake business of production system line and project EPC General contracting...Up to now, all core machinery are with CE Certificate.
Jinzong has been a quality conscious organization since the very first day. We understand the value of the money and faith, shown by our clients in our company so we are determined to provide them an excellent quality. In the last 20 years, we have proved it and created a large client base across the world. We follow rigorous quality measures, so that we deliver defect free machines to
Our clients. We have installed latest laboratory and quality testing facilities, which enables us to check our machines for their performance.
We check our machines on following parameters:
A)Durability
B)Efficiency
C)Capability of withstanding high pressure
D)Functionality
By consistently keeping to professional operation concept, Jinzong Machinery will continue to provide you with service quality of a higher level. We are elaborately carving and presenting the best in the aspects of product design, manufacturing and product quality. The 100% customer satisfaction services system is started to provide you with the most considerate and perfect integral project service and build the 'one-stop service' system.
