JIS D Type Trawling Shackle of Rigging Hardware

Prod Model:	5mm-60mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	JIS D Type Trawling Shackle
Surface:	Self Colour
Techology:	Forged
Advantage:	Manufacture and Export Ourselves
Use:	Fishing , Industrial ,Marine Hardware
Material:	Steel
Color:	Any Colour According Customers Request

Product Description

1. Product Description:

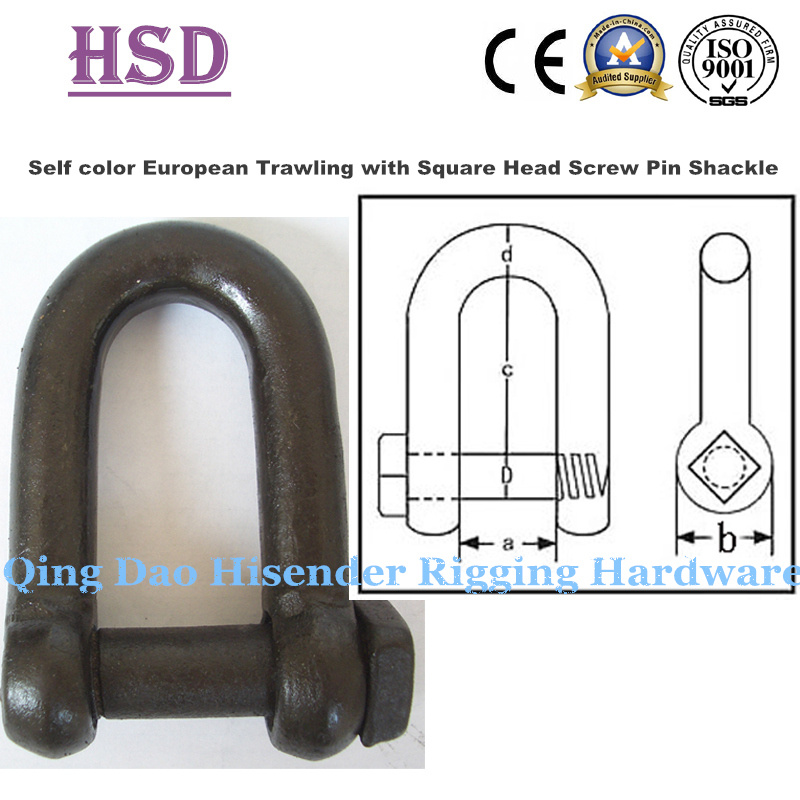

self color European Trawling with Square Head Screw Pin Shackle.

Nominal Size(tons)	SWL(kg)	D (mm)	d (mm)	a (mm)	c (mm)
0.2	200	8	6	12	35
0.3	330	10	8	16	45
0.5	500	12	10	20	50
0.9	930	16	12	24	60
1.4	1450	20	16	32	80
2.1	2100	24	20	36	90
2.7	2700	27	22	40	100
3.3	3300	30	24	45	110
4.1	4400	33	27	50	120
4.9	4900	36	30	58	130
6.8	6800	42	36	64	150
9	9800	48	42	70	170
10.7	10700	52	45	80	190
16	16000	64	52	99	235
21	24000	76	65	100	256



Δ  2.Material: Carbon steel, alloy steel, stainless steel, high strength steel.45# steel /Q235/Alloy Steel.


Δ 3.More Informations :

Surface: Galvanized / self color.

The  shackle mainly comprises a main body and a lateral pin.

The technology of the shackle is free forged, stamping .

The shackle is commonly used in lifting areas and mainly used for adjusting chainsaw to fasten cargoes

and machineries.

Name	Self color European Trawling with Square Head Screw Pin Shackle.
Material	Carbon steel, alloy steel, stainless steel, high strength steel.45# /Q235/Alloy Steel.
Surface	Galvanized (hot DIP and electroplating), painting, self colored, zinc plate
Process	Drop forged, stamping
Original	Qing Dao ,China
Size	3mm-50mm
Standard	Commercial Type
Use as	Chain and Wire Rope Accessories
Function	For Lifting Industry
Packing	Gunny bag, wooden case, plastic drum.

Δ 4.Rigging Hardware- shackle type:

Screw Pin Anchor Shackle G-209

Round Pin Shackle G-213

Screw Pin Chain Shackle G-210

Round PIn Chain Shackle G-215

Bolt Type Anchor Shackle G-2130

Bolt Type Chain Shackle G-2150

Euro Type Large Dee Shackle Same Size Diameter Pin With Body

Euro Type Large Bow Shackle Same Size Diameter Pin With Body

Trawling Shackle With Square Head Screw Pin

Drop Forged Dee Shackle Italy Type

Grade 80 Dee Shackle With Bolt
