| Price: | US $ 0.23-4/Piece |
|---|---|
| Trade Terms: | FOB,CIF |
| Min Order: | 3000/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | JDF8800 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Body Material: | UPVC |
| Core Material: | PVC ,PP |
| Handle Material: | PP |
| Size: | 1/2"-4" |
| Color: | White, Grey or Customized |
| Weight: | 66g/98g/127g/190g/255g/ |
| Nomimal Pressure: | Pn10, Pn16 |
| Temperature Of Media: | Medium Temperature |
| Shape: | Socket or Thread |
| Brand Name: | Js |

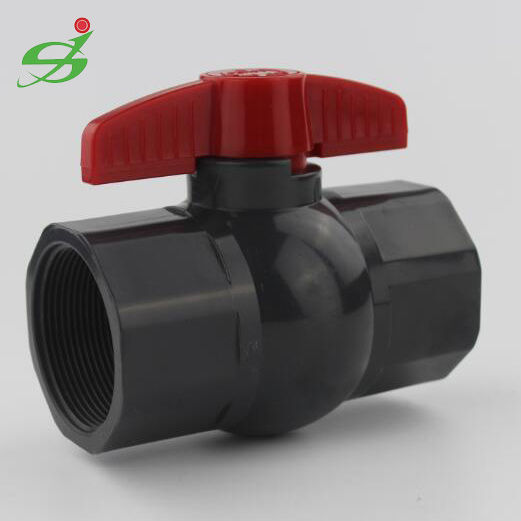

JS High Quality UPVC Ball Valve with Thread
Features:
plastic ball valves are suitable for all plumbing and industrial applications.
Body :U-PVC
Connections:threaded or unthreaded
Handle material:PP,ABS
Sizes:1/2"-6"
Seat Seal:TPE/TPR
Stem O-Ring:EPDM

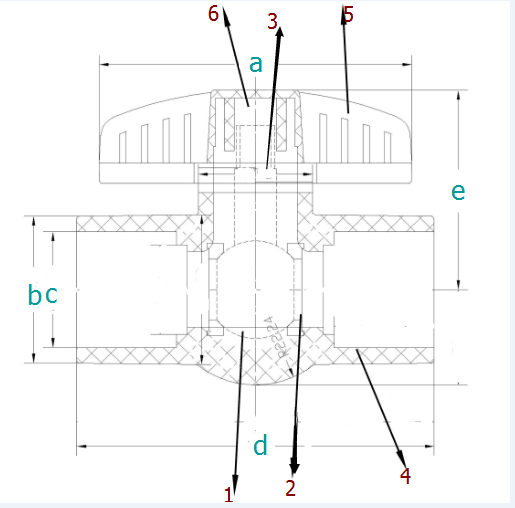

Diagrammatize:

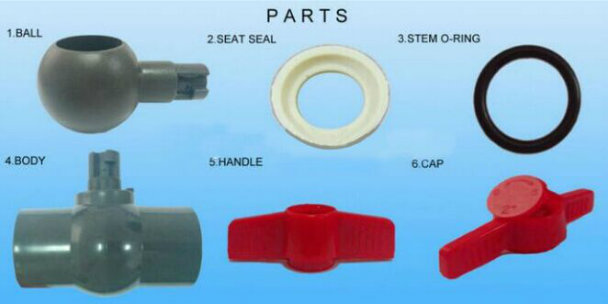

| No. | PART | MATERIAL | QTY |
| 1 | Ball | PVC/PP | 1 |
| 2 | Seat seal | EPDM | 2 |
| 3 | Stem O-Ring | TPE/TPR | 1 |
| 4 | Body | UPVC/CPVC | 1 |
| 5 | Handle | ABS/PP | 1 |
| 6 | CAP | ABS/PP | 1 |
| Item NO. | F8800 |
| Size | 1/2"--6" |
| Connector | socket,thread |
| Color | according to client |
| working pressure | 200 PSI |
| standard | ANSI,DIN,JIS,CNS.BS |
| thread end | NPT , BSPT |
Packing & Detail:
| Packing | Interior Package: poly bag, white box or color box |
| Exterior Package:Standard Export Carton | |
| Payment | L/C or T/T |
| For T/T: 30% deposit,70% balance before shipping | |
| Lead Time | 25 days after receive your 30% deposit of T/T |
| OEM/ODM Service | Accept your any design, including style, color, weight or plating. |
| Departure Port | Ningbo shanhai |
Package Detail:
| Descriptation & photo | size | weight(g) | package(pc/ctn) | ctn size(mm) | G.W/N.W(kgs) | |
UPVC Ball Valve F8800
| 1/2" | 61 | 200 | 47x25x34 | 17/16kgs | |
| 3/4" | 88 | 120 | 47x25x34 | 14.5/1.5kgs | ||
| 1" | 140 | 72 | 47x25x34 | 14.1/13.1kgs | ||
1-1/4" | 248 | 48 | 47x25x34 | 14.6/13.6kgs | ||
| 1-1/2" | 315 | 36 | 47x25x34 | 15.2/14.2kgs | ||
| 2" | 525 | 20 | 47x25x34 | 13/12kgs | ||
| 2-1/2" | 982 | 12 | 64x39x34 | 15/13kgs | ||
| 3" | 1460 | 8 | 67.5x35.5x34 | 14.4/12.4kgs | ||
| 4" | 2720 | 6 | 64x36x36 | 18/16.1kgs |
Other product:
Types of Plastic Ball Valves:
pvc/upvc ball valve
pvc/upvc octagonal ball valve
pvc/upvc flange ball valve
pvc/upvc foot valve
pvc/upvc stop valve
pvc/upvc water tap/faucet/bibcock
pvc/abs/pp faucet, bibcock,tap
choose our reason:
1.high quality&industrial leading price
2.quick order processing & on-time delivery
3.100% QC inspection before shipment
4.innovative & customer-oriented
5.rich experience in exportation for over 8 years
6.best quality & best service with competitive price
7.easy and fast installation, making cost minimized
8.healthy and non-toxic, free of stain
9.Modern technical equipment in combination with proficient manual work.
10.Lightweight, convenient to transport and handle, good for labor-saving.
11.extremely long usage life for at least 5 years
Applications:
1.Cold water supply facilities for public budings
2.chemical and electronic industry pipeline networks, such as pipelines for transporting all kinds of corrosive liquids
3.Drinking water production system pipeline networks, such as pure water and mineral water pipes
4.Air conditioning facality pipelines and swimming pools
5.Compressed gas pipeline networks for industry usage.
