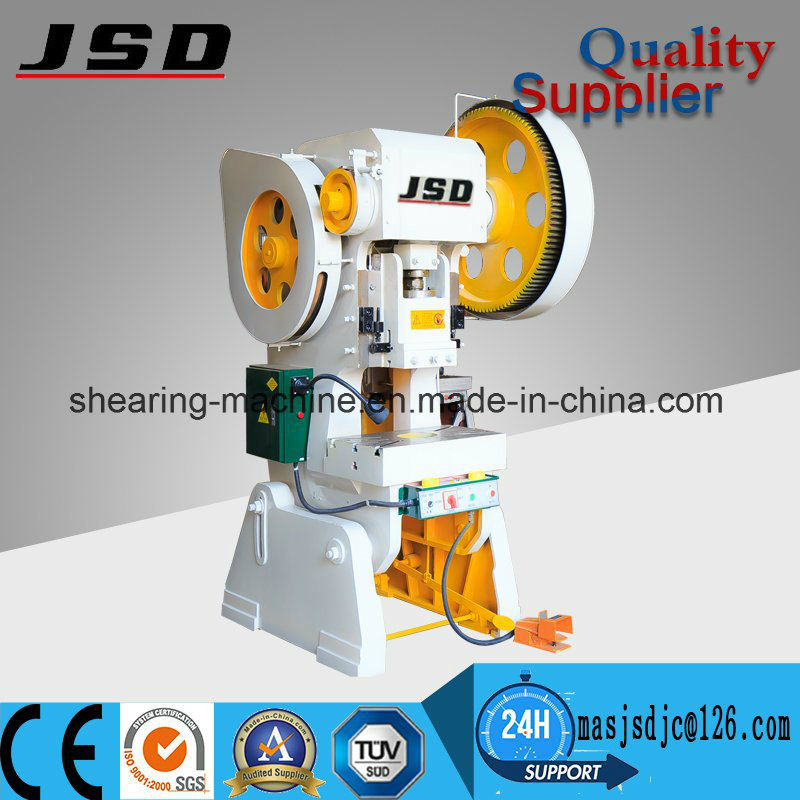

| Prod Model: |
J23 |
| Voltage: |
380V/415V/... |
| Color: |
as Your Require |
| Delivery Detail: |
Normally 15 Workdays |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Manual |
| Power Source: |
Mechanical Drive |
| Precision: |
Normal Precision |
| Certification: |
TUV |
Product Description
Factory Name: Maanshan JiaShiDa Machinery tool Co.,Ltd
Detailed Address:Bowang industrial Zone, Maanshan City, Anhui Province China
Website: http://en.cnc-jsd.com
CellPhone:+8618655586906
Facebook:https://www.facebook.com/rena.xia.7
Linkedin: https://cn.linkedin.com/in/rena-xia-a458a9102 Features:
1.Series High Precision Presses is one of the new generation of plate process and developed by Mananshan JiaShiDa
Machinery Co.,Ltd.,The press is for cutting, punching, blanking, bending and light stretching work.
2.C-Type Steel-welded frame, high rigidity and less deformation Compact,wide body frame eliminating vibration for improved
ide life and machine.
3. Rigid construction guarantees exact die mating,Six-side long rectangle guides of the slide with high moving precision and
high accuracy, extending the service life of the die.
4. Highly advanced, rigidly supported gears, operate in oil bath without any noise saves space, reduces, shaft deflection,
increases gear life.
5. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service

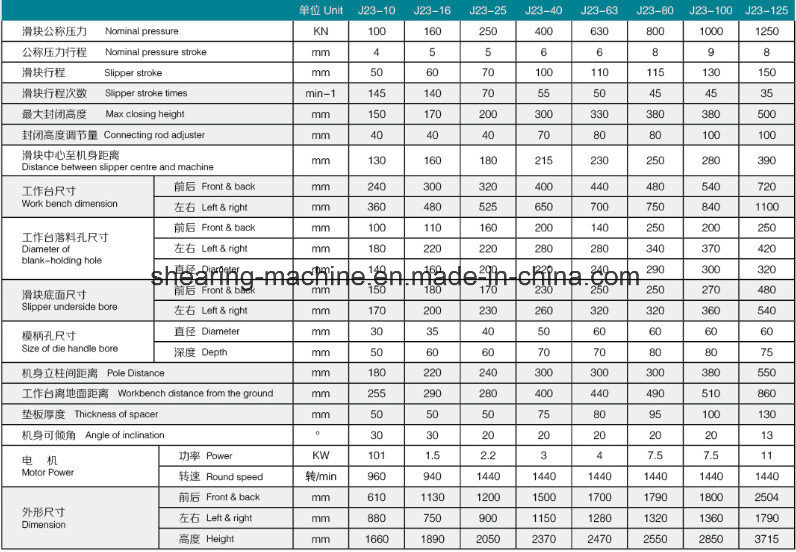

Technical parameter:

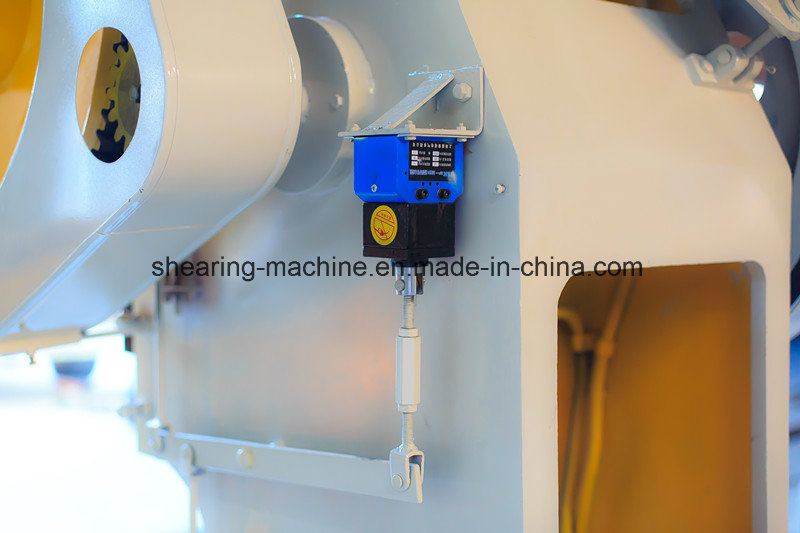

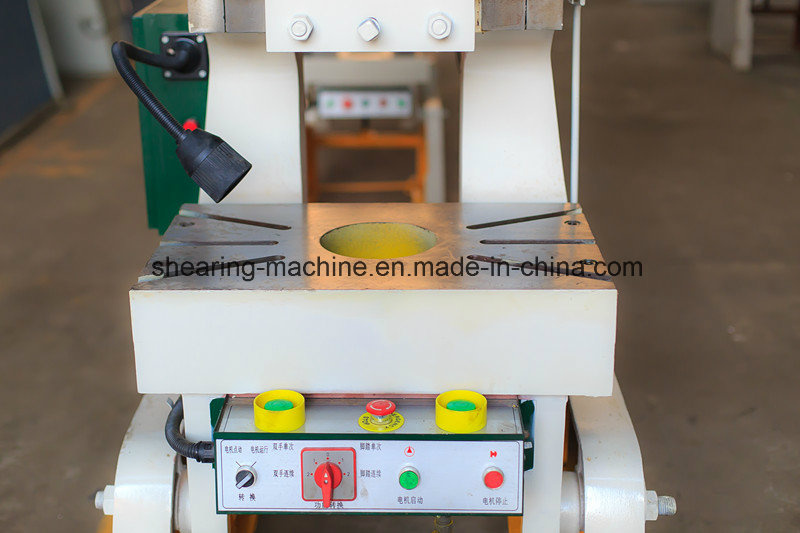

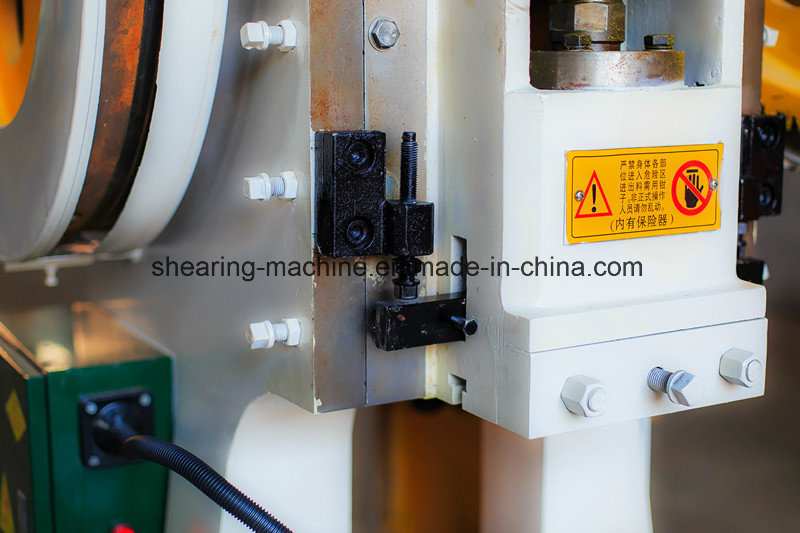

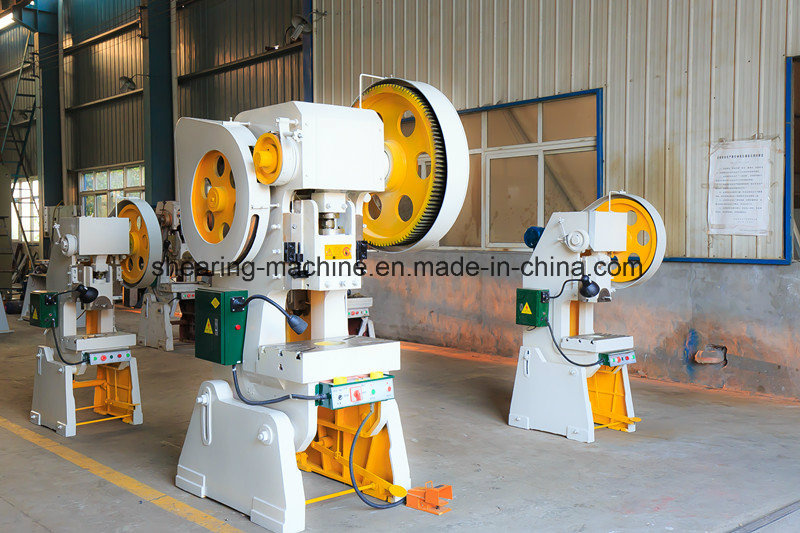

More detail photos:
Maanshan Jiashida Machine Tool Company is specializing in metal sheet fabrication machines. We focus on hydraulic press brake (WC67K NC series and MB8 CNC series), hydraulic shearing machine (QC12K swing beam series and QC11K guillotine series), fiber laser cutting machine, punching machine, hydraulic press machine, ironworker machine, rolling machine.

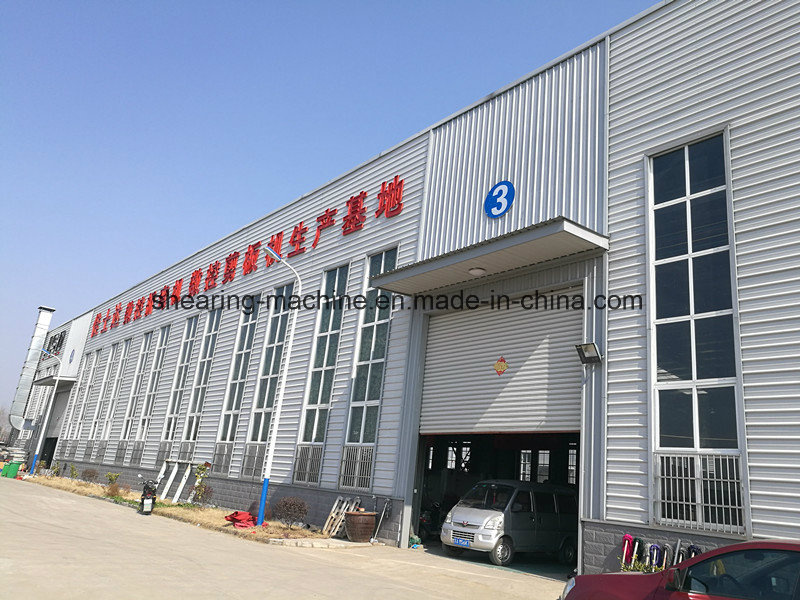

We located in Bowang Industrial Zone, Maanshan City, Anhui, China (about half an hour driving distance to Nanjing Lukou International Airport). We are founded in August 2005. We have more than 98 employees with 8 mechanical engineers, more than 30 salesman and 16 service staff.
1000T/8000mm hydraulic CNC press brake with DA56 system, 40X8000mm hydraulic guillotine shearing machine with E21S control system exported to Vietnam, MB8 tandem CNC press brake 2X2500X5000 with DA58T system exported to German etc. These all big machines we exported to different countries, as we have more than 20 sets of advanced producing equipments and experienced staff. We can also do small economical shears and press brakes like 30T, 40T, 50T with 6 feet or 8 feet. Customization can be your choice!
Built to Last! With your trust, with our mutual benefit, Jiashida Machine will certainly step into world brand!
