Product Description

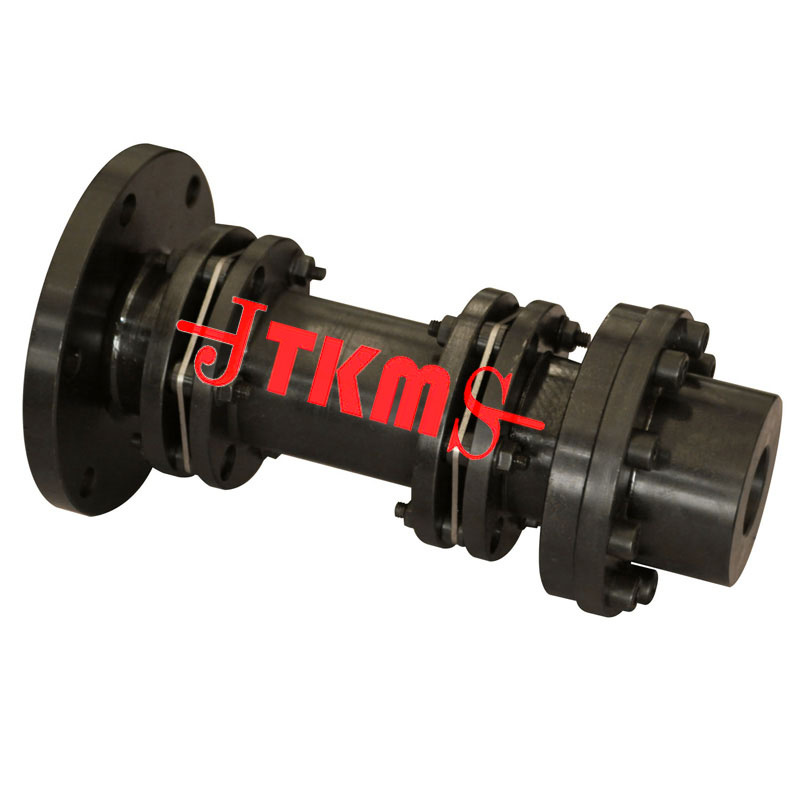

Steel disc-pack coupling in modular system in 14 sizes with diameters from 40 mm to 345 mm; other sizes for all applications on request; hub-hub, hub-spacer-hub, hub-flange, flange-flange and standard attachments can all be combined in each size; maintenance-free; power transmission through flexible spring plates in double cardan arrangement
| Physical and technical parameters |
| - | Torque (T) 55 Nm to 5500 Nm |
| - | Speed (n) 30,000 to 2,000 min-1 |
| - | Stiffness (C/T) approx. 150 to 300, primarily determined by the spacer |
| - | Permissible ambient temperature -40°C to +280°C |
| Manufacturing and material |
| - | Steel hub/flange, machined on all sides |
| - | Banks of springs made out of cold-rolled stainless steel |
TECMEN couplings in the TMG series are used in turbo-compressors, turbines, printing presses, generators, pumps, chillers, mixers, fans, synchronous motors, machine tools and general engineering.
Service:
Download a brief profile of the TMG series, the API 671 standards (TMG couplings are always API 671 compliant), and details of shaft displacement capacity (PDF). For more downloads, please see our service area. If you have any questions, please don't hesitate to get in touch with us.
TECMEN Power Transmission is a manufacturer of power transmission components. The international operating TECMEN Group offers engineering, coupling systems and power transmission solutions worldwide. The professional advice from TECMEN engineers achieves decisive technical, economic /personal service and environment advantages for the customers. The special capability by our engineers is high-tech mechanical engineering. TECMEN offers engineering services based on torsional vibration calculation and analysis for each drive.
