| Prod Model: |
XL-510 |
| Rated Power: |
40W/4ohm |
| Frequency Response: |
55Hz-18kHz |
| Sensitivity: |
75dB |
| Max Spl: |
78dB |
| Rated Input Level: |
Microphone 15 Mv |
| Product Size: |
220*200*350 |
| N.G: |
6.5 Kg |
| Amplification Type: |
Active |
| Speaker Material: |
Wood |
| Usage: |
Karaoke |
| Adjusting Method: |
Touch-Control |
| Sound Channel: |
2.0 |
| Play Frequency: |
Full Range Speaker |
| Structure: |
Desktop Speaker |
| SNR: |
81-90dB |
| Display Screen: |
No |
Product Description
Features:★ use 2.4G digital radio frequency technology, effectively avoid transmission interference, while the use of 1000 sets of no channeling frequency to meet the needs of the same place a lot of use;
★ external integrated 2.4G signal receiver box, to avoid electromagnetic interference inside the speaker, enhance signal stability and sensitivity; with high efficiency, stable and reliable features.
★ two-way microphone input (comes with 6V phantom power);
★ microphone volume, high and low tone adjustment, can be independently controlled;
★ standard wall mounting accessories, lifting simple and convenient.

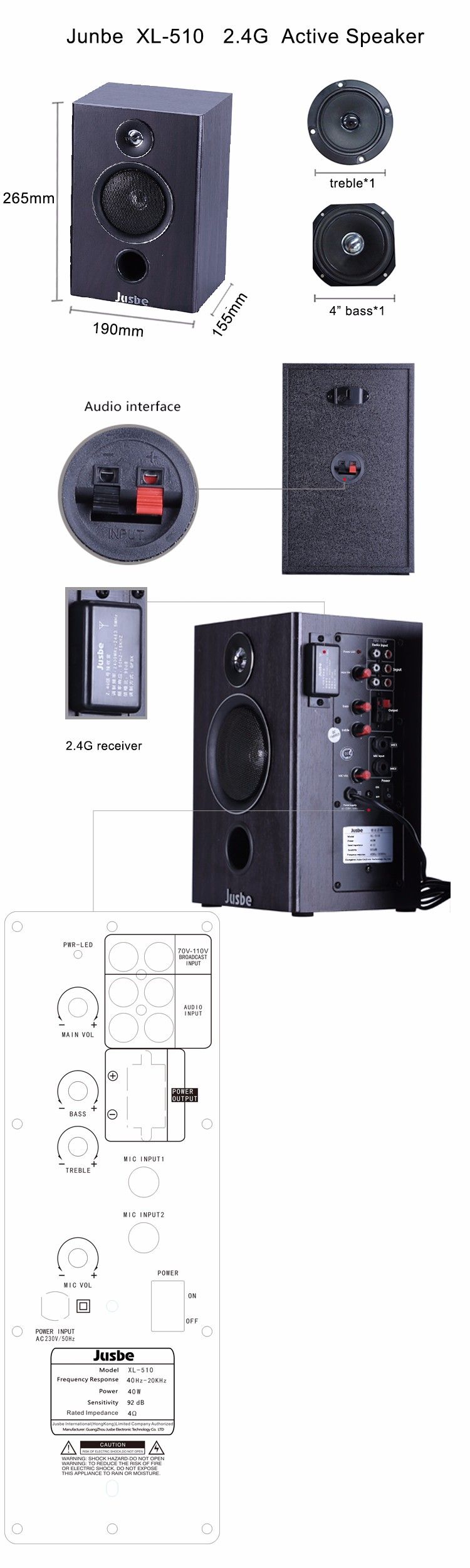

The main technical parameters:
Rated power: 40W;
Rated impedance: 4Ω;
Frequency response: 55Hz-18kHz;
Drive: 4 inch bass × 1, treble × 1;
Input: 2 stereo interface;
1 broadcast interface;
Output: 1 stereo interface;
Sensitivity: 75dB / 1W / 1M;
Box and exterior: high density MDF (black) box;
Installation: wall hanging;
Packaging & Shipping★Product Size: 190 × 155 × 265 (unit: mm).
★Net Weight: 6.5kg / pair.
★Gross Weight: 7 KG
Payment termSmaple:T/T 100% deposit before delivery.
Mass production: T/T 30%deposit in advance
Delivery timeSample:3 days
Mass production:5-7 day,depand on quantity
| Product Name | XL-510 40w/4ohm teaching home audio sound system Monitor 2.0 speaker box with wireless microphone reveiver |
| Model No. | XL-510 |
| Power | 40W/4 |
| Frequency response | 55Hz-18kHz. |
| Driver | 4-inch bass x1, treble driver x1, 1-inch treble*1 |
| Input | two-channel stereo interface, one-channel broadcasting interface |
| line output | 1 channel stereo interface |
| Sensitivity(1W/1m) | 75dB/W(1m) |
| Cabinet exterior | high density fiber board (black) |
| Installation | standard wall rack |
| Cabinet size(mm) | 190 x 155 x 265 /unit |
| G. W | 6.5KG/pair |
FAQ
1.Q: Are you a factory or trading company?
A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.
About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !
3.Q: Can you do OEM and ODM?
A: Yes, both. We can put your idea into products.
We have professional research development team, develop the products according to customer required.
Guangzhou Jusbe Electronics Technology Co. Ltd. was established in 2002. For 14 years, we have been dedicated in the field of Professional audio system industry. As the solution supplier and manufacturer of Audio system, we're using artificial intelligence to change the world step by step: Amplifier, speakers, microphone, line array series, peripheral equipment, mixer...
Our factory covers 10 thousand square meters, including 2 main workshop(professional audio products workshop, teaching audio products workshop) and accessory workshop. In order to provide our clients with high performance products in competitive price, we import ISO9001 Quality Management System, ISO14000 Environment Management System and SRRC System to our factory. What's more, there're nearly 300 marketing staff, 30 branches all over the country.
In order to meet the global trend, our brand Jusbe has been registrated in USA, Hongkong. In the meantime, we have built strategic relationship with 20 excellent global partners.
It's rarely to find such a manufacturing basement of large scale and multiple systems. Relying on 15 major series and more than 1000 products, we're confidence to provide our clients from various area with complete and individual solution. For now, it's proud to say that we have 100 thousand successful cases worldwide and our clients're satisfied with them.
Our products have been applied to many important events or buildings, such as Google experience center, China Telecom, Guangzhou South Railway Station, Hengda Real Estate Group etc.
