| Prod Model: |
20011 |
| International Standard: |
Yonghua |
| Size: |
3/16" to 2" |
| Color: |
Silver and Golden |
| Appearance: |
Galvanized |
| Structure: |
Universal |
| Flexible Or Rigid: |
Rigid |
| Material: |
Carbon Steel |
| Standard: |
Standard |
| Connection: |
Insert |
Product Description

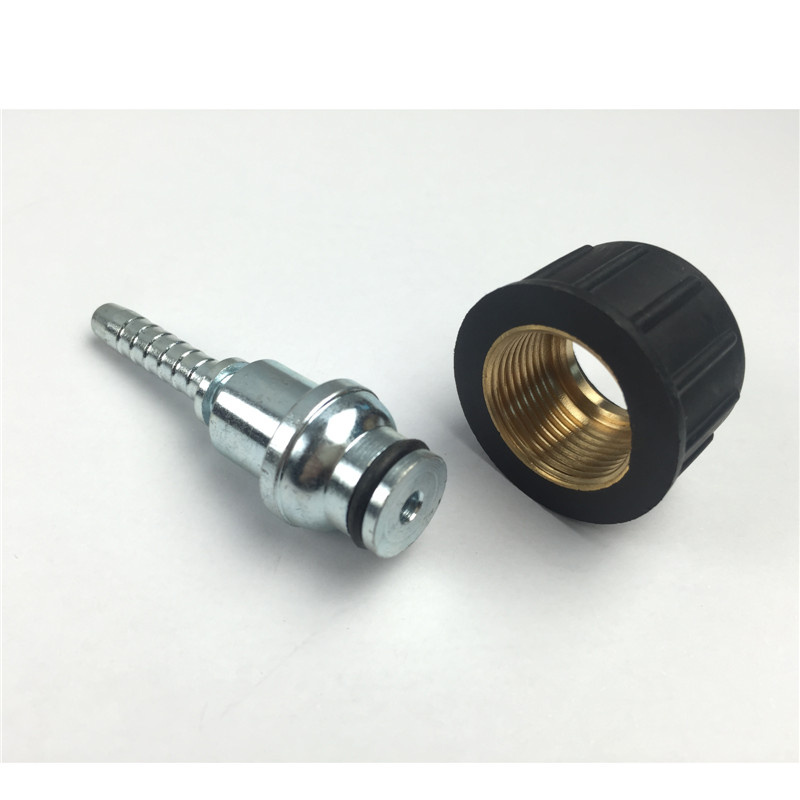

Kacher Terminal O'ring x JIC Hose Fitting for Pressure Washer MachineWe are specialized in hydraulic hose fittings, ferrules, adaptors, couplings, stainless steel fittings & brass fittings
1. Hydraulic Hose Fittings:
1). BSP, JIC, NPT, ORFS, SAE male, female fitting, straight & elbow, nuts, ferrules
2). Metric male, female fitting, straight & elbow, nuts, ferrules
3). Reusable fittings
4). One-piece fittings
2. Hydraulic Adaptors:
1). BSP, JIC, NPT male, female adaptor, 3 ways tee 4 ways tee
2). ORFS, SAE, Metric male, female fitting, straight & elbow, nuts, ferrules
3.Stainless Steel (316SS / 304SS) & Brass & aluminum fittings:
NPT,JIC,BSP etc threaded male and female fittings & adaptors for low & high pressure
The SAE J516 standard for hydraulic fittings specifies that fittings shall be plated with a material that passes a 72-hour salt spray test in accordance with ASTM B117.
Our fitting can stand for at least 96 hours.Specification:
| Part No. | Thread E | Hose Bore | Dimensions | |
| DN | DASH | A | d | D | |
| 20011-22-03ST | M22x1.5 | 5 | 03 | 24.5 | 14 | 34.5 | |
| 20011-22-04ST | M22x1.5 | 6 | 04 | 25 | 14 | 34.5 | |
| 20011-22-05ST | M22x1.5 | 8 | 05 | 25 | 14 | 34.5 | |
| 20011-22-06ST | M22x1.5 | 10 | 06 | 25 | 14 | 34.5 | |

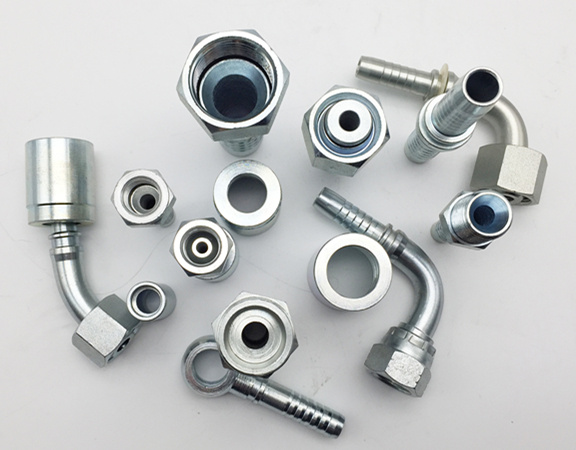

Photo of Products

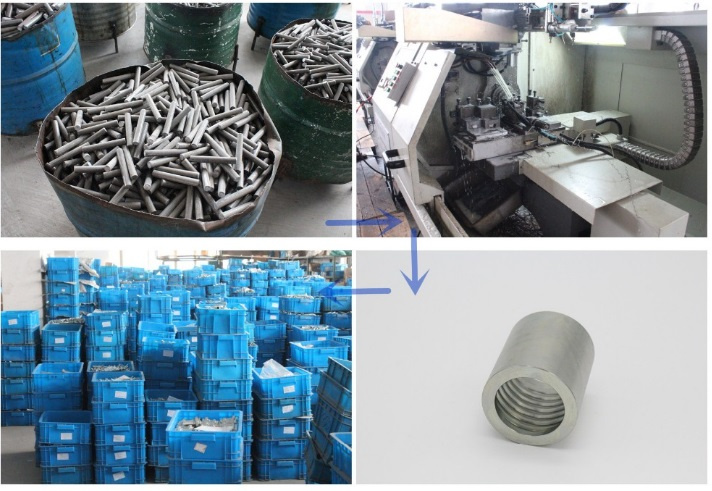

Production FlowMaterial of ferrule: carton steel 20#
Material of fitting: carton steel 45#
All of our machines are CNC machines, sizes are more stable and accurate than instrumentation machine.
Packing of Fittings and FerrulesCarton: 5 layers corrugated carton 24cm X 24cm X 16cm
Wooden Case: 110cm X 80cm X 75cm
Usually 42 corragetd cartons are packed in a wooden case.
FAQQ: Is it stainless steel fitting?
A: It is made of carbon steel, if you need stainless steel one, we also can produce it for you.
Q: Is it standard hydraulic fitting?
A: Yes, all of our hydraulic fittings are standard parts.Each of hydraulic hose can find our hydraulic fittings to fit for.
Q: Can you print model and our brand on the ferrule and fitting?
A: We can print model and your brand on the ferrule, but there is no enough space to print them on the fitting, just logo is ok.
Q: Can you produce fitting according to sample or drawings?
A: Yes, we can produce fitting according to your samples or drawings.
Q: Can you galvanize zinc in golden color?
A: Yes, it can be made in golden color, anyway, we suggest to use siliver zinc plated fitting because it is ROHS compliant.
Other Products we Supply

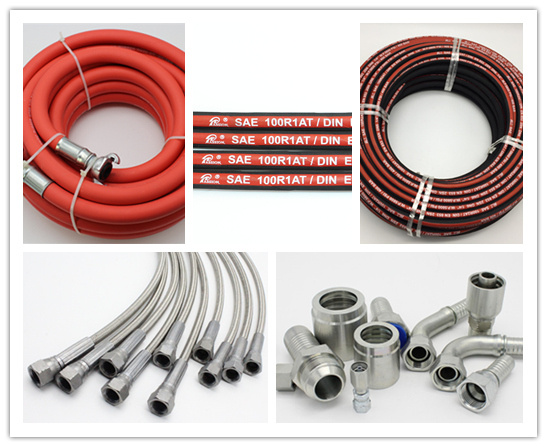

Besides fittings and ferrules, we also produce rubber hoses.
If you'll need, please contact us.
How to Contact Us?
Hangzhou Paishun Rubber and Plastic Co., Ltd was established in 2007, is a professional rubber hose manufacturer.
The factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.
We produce mainly the industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.
Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipments. We now use a series of tensile testing machine, vulcanization testing device, aging testing chest, pressure testing machines to ensure the effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials till the end step.
Thus, we wish our products can satisfy in maximum our customers, and help them to gain more and more market share.
