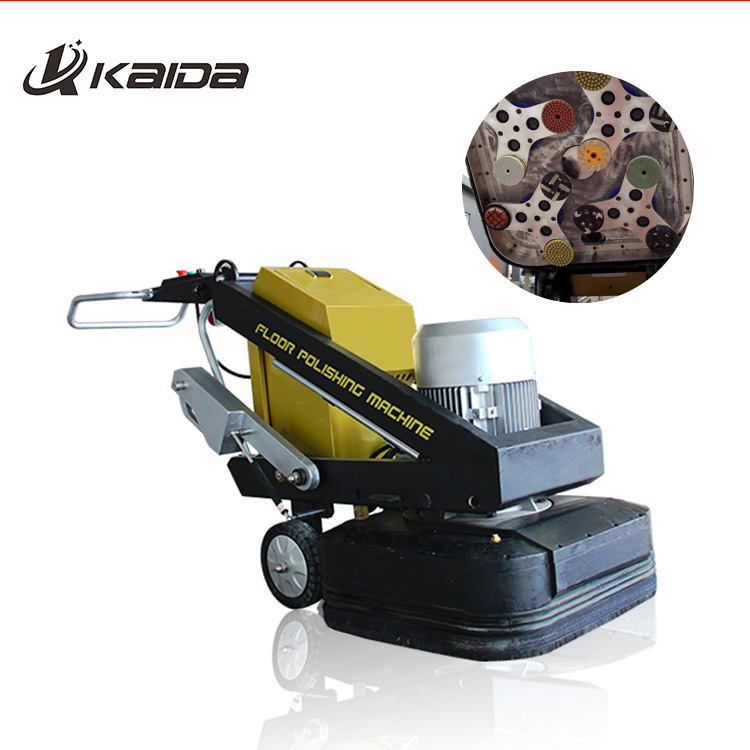

Kaida Gd-700 15kw Diamond Tool with Floor Grinding Polishing Machine
| Price: |
US $ 3000-6150/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Motor: |
15HP(11kw) |
| Inverter: |
15kw |
| Hz: |
50Hz |
| Voltage: |
380V-420V |
| Current: |
22A |
| Weight: |
438kg |
| Work Area: |
700mm |
| Rotating Speed: |
300-1500rpm |
| Type: |
Disc Grinder |
| Power Source: |
Hydraulic |
| Material: |
Steel |
| Working Style: |
High-speed universal |
| Disc Diameter: |
310mm |
Product Description
kaida 20hp concrete grinder planetary
Operation instructions Applications
1.Suitable for dry or wet polishing and grinding
2.concrete surface repair and leveling
3.Self-leveling cement leveling and Polishing
4.Epoxy floor polishing and renovation
5.Natural stone and terrazzo polishing
6.Polyester adhesives, coatings and mortar bottom
7.Different floors surface results and achieves a beautiful surface, excellent quality and wear resistance
Pre operating preparation
1 Use power supply with ground contact (three-phase four line).
2 The cable must not broken or with open wires.
3 To adjust the height of the operating handle, so as to make the best state of manpower, bang pull the handle, lift the whole base, support the foot to the ground, and then let go.
4 The disc is flexible, check whether the fastening bolts loose, and check whether the gap is uniform.
5 Bottom of the diamond head or resin grinding piece is tight button.
Machine operation
1 Connect the power supply, check whether the indicator light is on, and the display screen has no abnormal display.
2 Spin start red emergency stop button.
3 Turn on the black boot switch.
4 Rotate the speed knob slowly to the required construction speed and the normal grinding state.
5 When you need to stop working, rotate the Start button to the stop position. If you are in an emergency, press the red brake button immediately and the machine will stop working immediately.
6 Regardless of the start and stop work, the operator must hand to protect the machine, and keep the machine at a constant speed, not in the thick ground grinding, so as to avoid damage to the grinding piece, the machine rapid warming, seriously charred floor.
7 Grinding end, downtime unplug power plug, unplug the plug when not strong pull, should be removed from the card, and hand down the socket, gently pull the plug.
8 Adjust the height of the handle position, Use your foot to support the bottom part of the machine, holding the handle backward pull machine, tilt the machine, support point of the smooth landing, testing wear and tear, timely replacement, for the next section of construction.
Tianjin Kaida Technology Co., Ltd. manufactures floor grinding machines, laser leveling machines, solidifying agent and grinding plates. In the first three years of the operations, 20 Kaida technicians have been dedicated to the design and manufacture of floor products, testing the quality, safety and operation of the products . The company has registered KAIDA and CFS trademarks which have associated with top notch quality and impecable service delivery.
The kaida team has always strived to produce uniquely designed and high-quality products which have consistently gained recognition and received great reviews from consumers worldwide.
The companys philosophy is to serve intently, provide quality and constant innovation . We have sucessfuly completed more than 1000 floor related projects in China, and we warmly welcome all our global customers to test and buy our products.
FAQ
1.What is about your service?
*Your inquiry will be replied in 24 hours.
*Eight years Gold supplier continuously in the Alibaba. And there is more industrial technology experience for 25 years with our manufactures.
* To offer free spare parts and service within 14 month of warranty.
* Technology Support Provide operation video for training.
* Professional after-sales service team.
* Give reasonable offers with the best quality.
2. What is your advantages?
* Competitive price: It can meet your budget and best-selling business very well.
* OEM Accepted: We can produce as customized design.
* Good Service: We treat clients as friends and provide problem solving anytime you need.
* Good Quality: We have strict quality control system. Good reputation in the market.
* Fast & Delivery: We have big discount from forwarder (Long-term Contract).
* Door To Door Service.
3. Can you customize the machine for the customer?
Yes. We can, we also provide OEM for customers; If you need customized service, please contact with us.
4. What is the MOQ?
We would like to provide 1 set for you test.
Tianjin Kaida Science And Technology Co., Ltd. To produce floor grinding machine, laser leveling machine, curing agent, grinding-based production-oriented enterprises. In the three years prior to the company's establishment, 20 Kaida technicians have devoted themselves to designing and manufacturing flooring products and testing the stability and ease of use of the products in three years. In March 2017 formally listed. Companies registered KAIDA trademark and CFS trademark...Kaida people take the high-quality product quality and unique design concepts as a guide, the product and service got the high reputation in market.
The company's sales philosophy is intentions of service, quality certification, market test. We do more than 1, 000 floor projects in China, welcome to visit foreign visitors.
