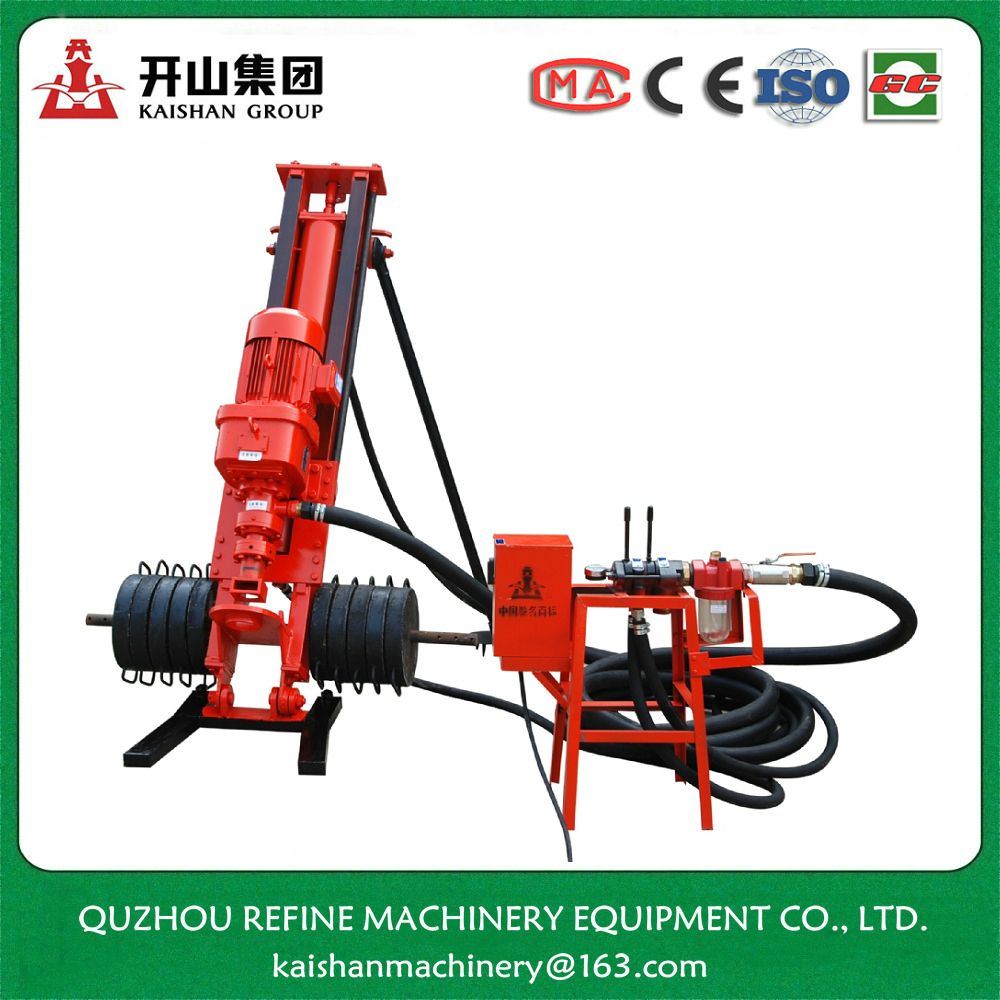

| Prod Model: |
KQD145B |
| Drilling Dia.: |
>90-130mm |
| Drilling Depth: |
>50m |
| Rotation Speed: |
0-60Rpm |
| Working Pressure: |
0.7-1.4MPa |
| Drill Rod Dia.* Length: |
76mm*1000mm |
| Air Consumption: |
>12m3/min |
| Engine Power: |
7.5kw/10HP Electric Motor |
| Recommended Air Compressor: |
LGY-13/8 |
| Dimension: |
2300*700*750mm |
| Weight: |
600kg |
| Usage: |
Quarry |
| Power Type: |
Electric |
| Type: |
Rotary Drilling Rig |
| Condition: |
New |

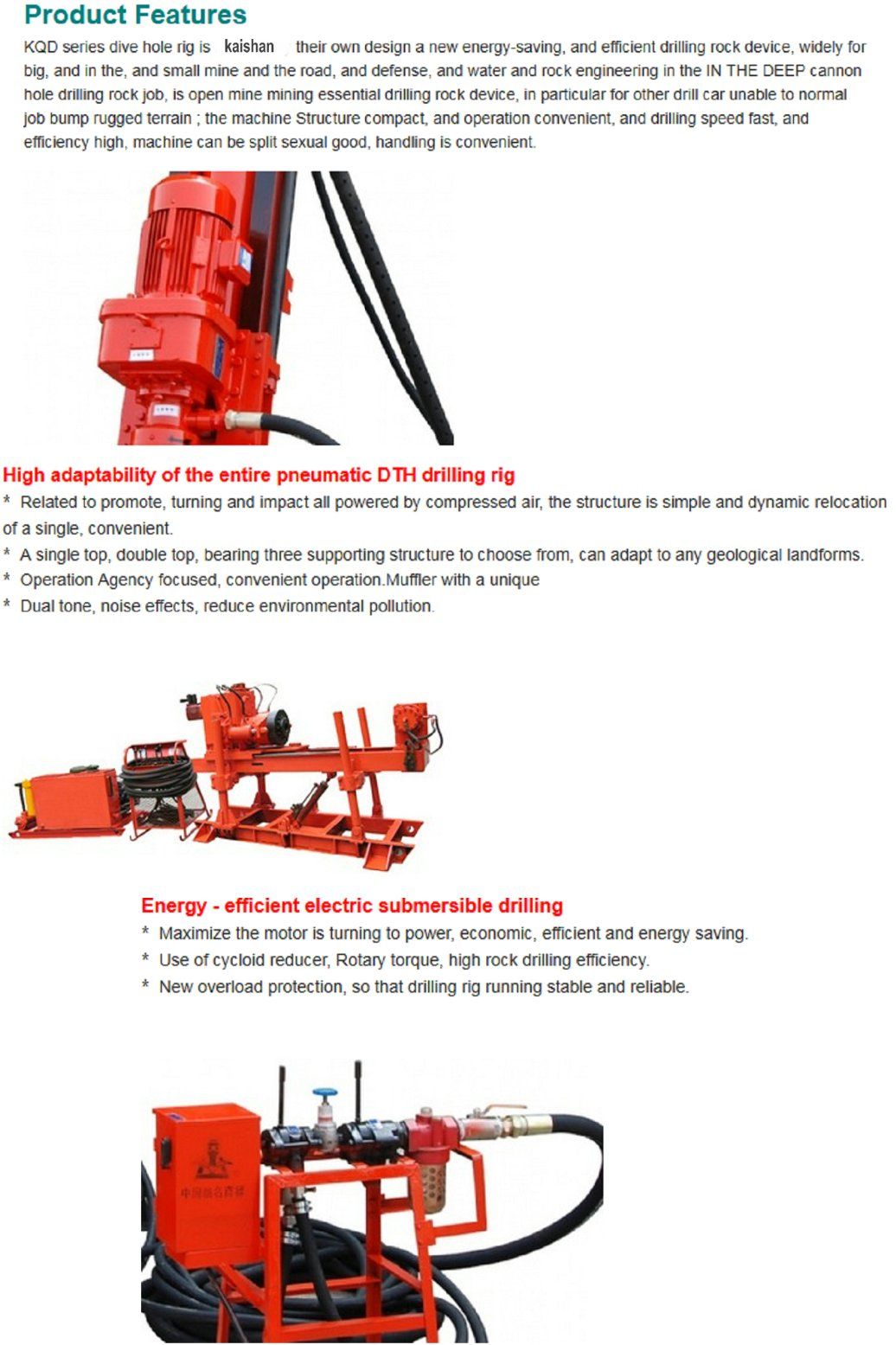

Product Description
Product Description
Instruction:The Ultimate combination of performance and economy.Kaishan DTH system delivers the highest-possible drilling performance at low running cost. Kaishan DTH used in various heavy industry. It is used to drill blasting holes like small to medium mining projects, national defense projects, road construction and ect. Our down-the hole drill is ideal equipment for down-hole blasting.Advantages1.Safe and stable traveling system
Low gravity, great ground clearance, make cars easily make drill through rugged road.The advanced automatic balance system, not only makes drilling stable, also greatly reduced the impact of the car, and ensure the safe driving.
2.Centralized operating system of Mobile Drilling Rig Drill carriage designed with advanced hydraulic system and completely functional gas circuit system.
3.Powerful feeding and rotating system of Mobile Drilling Rig Promote reducer drives adopt turbine and worm, which have a big push- pull effort and can reliaze self-locking.
4.Adjustable boom Adopt adjustable boom, the dip angle of hole and Level hole height can adjust by control the oil tank stretch out and draw back.Details Technical Parameter for DTH rock drill rig | Model | KQD145B |
| Drilling Hole Dia. | 90-130MM |
| Drilling Depth | >50M |
| Rotation Speed | 0-60rpm |
| Working Pressure | 0.7-1.4Mpa |
| Drill Rod Dia.*Length | 76*1000mm |
| Air Consumption | >12m3/min |
| Max. Push Power | 12000N |
| Driven Power | 7.5kw motor |
| Recommended Air Compressor | LGY-13/8 |
Parameters of Kaishan KQD other down the hole hammer drill rig:
| KQ Series DTH Rock Drill Rig Specification |
| Model | KQD70 | KQD100 | KQD120 | KQD70 | KQY90 | KSZ100 |
| Drilling Hole Dia. | 60-80MM | 80-100MM | 80-120MM | 60-80MM | 80-100MM | 80-100MM |
| Drilling Depth | >15M | >20M | >20M | >15M | >20M | >20M |
| Rotation Speed | 0-125rpm | 0-62/0-84rpm | 0-62/0-78rpm | 0-125rpm | 0-75rpm | 0-93rpm |
| Working Pressure | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7/0.7-1.0Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa | 0.5-0.7Mpa |
| Drill Rod Dia.*Length | 40*1000mm | 60*1000mm | 60*1000mm | 40*1000mm | 60*1000mm | 60*1000mm |
| Air Consumption | >3.5m3/min | >7m3/min | >9m3/min | >3.5m3/min | >7m3/min | >12m3/min |
| Max. Push Power | 4000N | 9600N | 9600N | 4000N | 15000N | 9600N |
| Driven Power | 3kw motor | 4kw motor | 5.5kw motor | 3kw motor | 12-13kw motor | / |
| Recommended Air Compressor | LGJY-4.5/6 | LGY-7.5/8 | LGY-10/8 | LGJY-4.5/6 | LGCY-7.5/7 | LGCY-7.5/7 |
| KQ Series DTH Rock Drill Rig Specification |
| Model | KQD145B | KQD150B | KQD155B | KQD165B | KQD165Z |
| Drilling Hole Dia. | 90-130MM | 90-130MM | 90-130MM | 90-150MM | 90-160MM |
| Drilling Depth | >50M | >50M | >50M | >50M | 80M |
| Rotation Speed | 0-60rpm | 0-60rpm | 0-60rpm | 0-60rpm | 0-60rpm |
| Working Pressure | 0.7-1.4Mpa | 0.7-1.4Mpa | 0.7-1.4Mpa | 0.7-1.4Mpa | 0.7-1.4Mpa |
| Drill Rod Dia.*Length | 76*1000mm | 76*1500mm | 76*1500mm | 76*1500mm | 76*1500mm 89*1500mm |
| Air Consumption | >12m3/min | >12m3/min | >12m3/min | >12m3/min | 13.2-16.8m3/min |
| Max. Push Power | 12000N | 12000N | 12000N | 12000N | 16000N |
| Driven Power | 7.5kw motor | 7.5kw motor | 7.5kw motor | 11kw motor | 8.8kw motor |
| Recommended Air Compressor | LGY-13/8 | LGY-13/8 | LGY-13/8 | LGY-16/13 LGY-18/7 | LGY-16/13 LGY-18/7 |
Main Elements of DTH drill rig show:
Matched Hammer's specification for DTH Drill. | Part name | QCZ90 |
| Dirll hole dia. | 90-100mm |
| Suitable drill rod | Φ50 Φ 60 |
| Capacity | 7m3/min |
| Working pressure | 5-7bar |
| Outside dia. | 80mm |
| Length | 855mm |
| Weight | 22kg |
Matching Drill rod : Ø 90-130mm
Matching Drill Bit: Low wind pressure drill bit (80-100mm)
Matched Portable Screw Air COmpressor
| Model | LGY-13/8 or LGCY-13/10 |
| Capacity (m³/min) | 13m3/min |
| Working Pressure (Mpa) | 0.8-1.0 Mpa |
| Weight (kg) | |
| Dimension (mm) | |

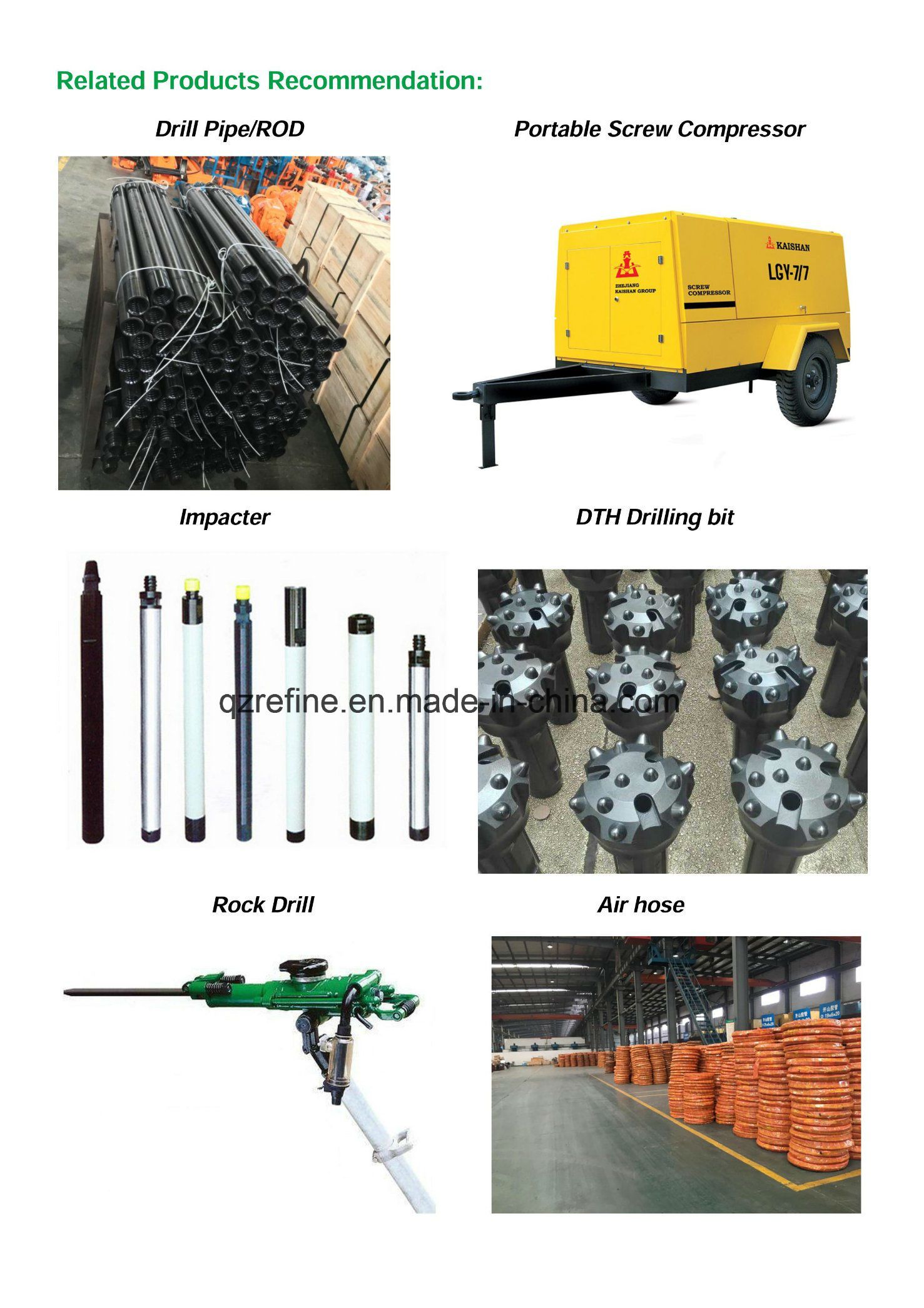

You may also interested in below accessories for Down The Hole Drill rig.

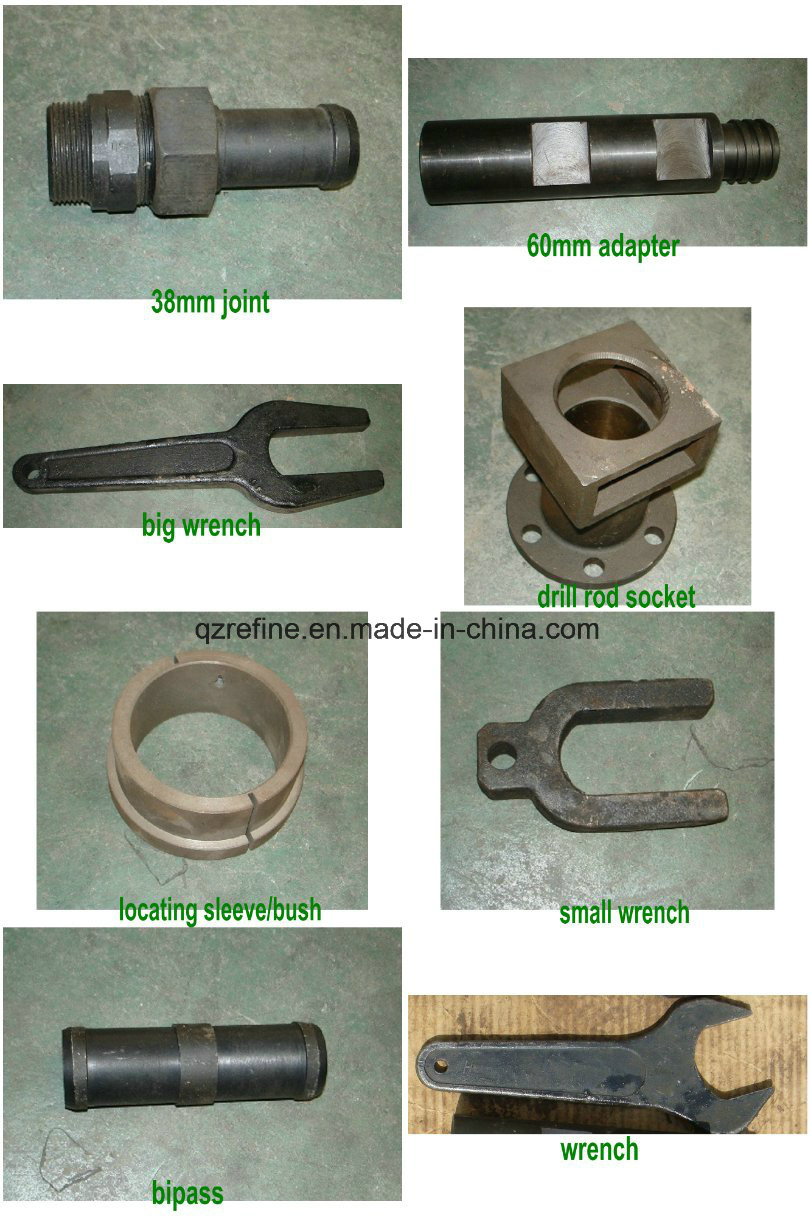

The Spare parts Kit for DTH Drilling Rig

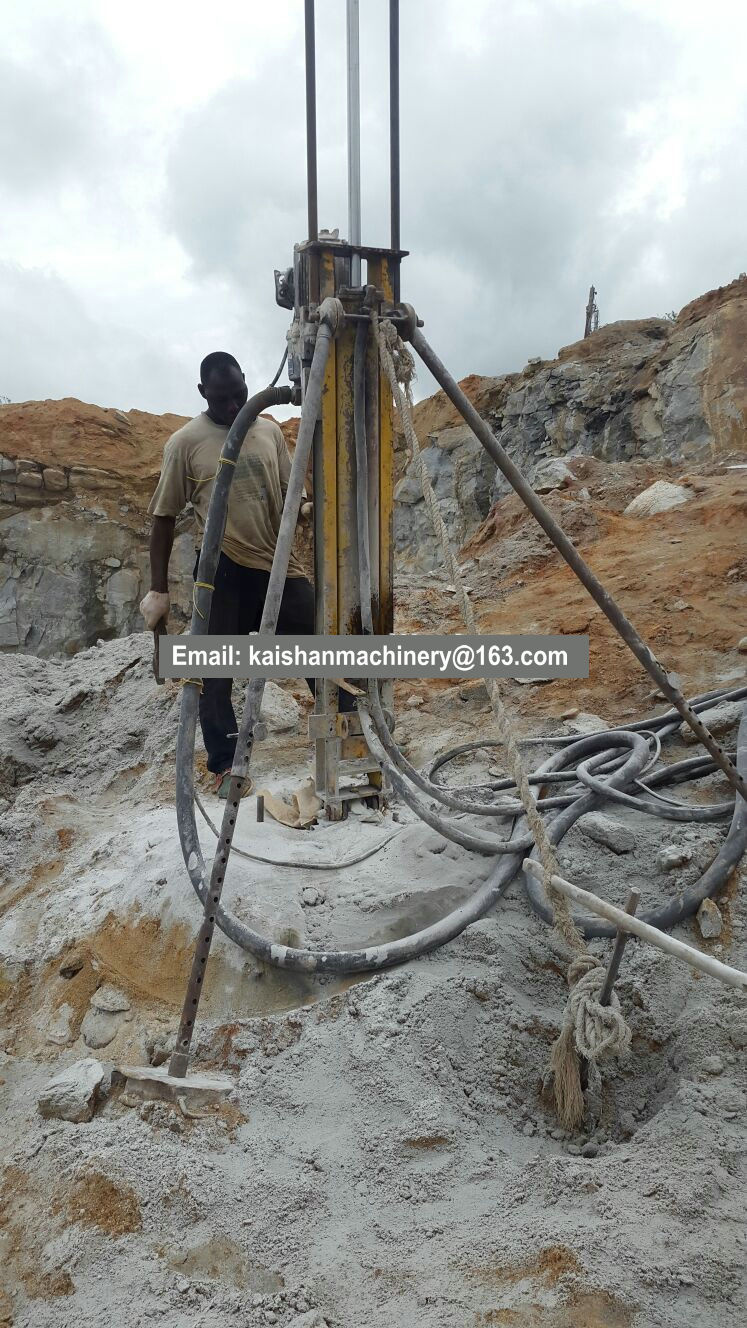

DTH Drilling Rig Applicated in our client's project:
