| Prod Model: |
ROC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |

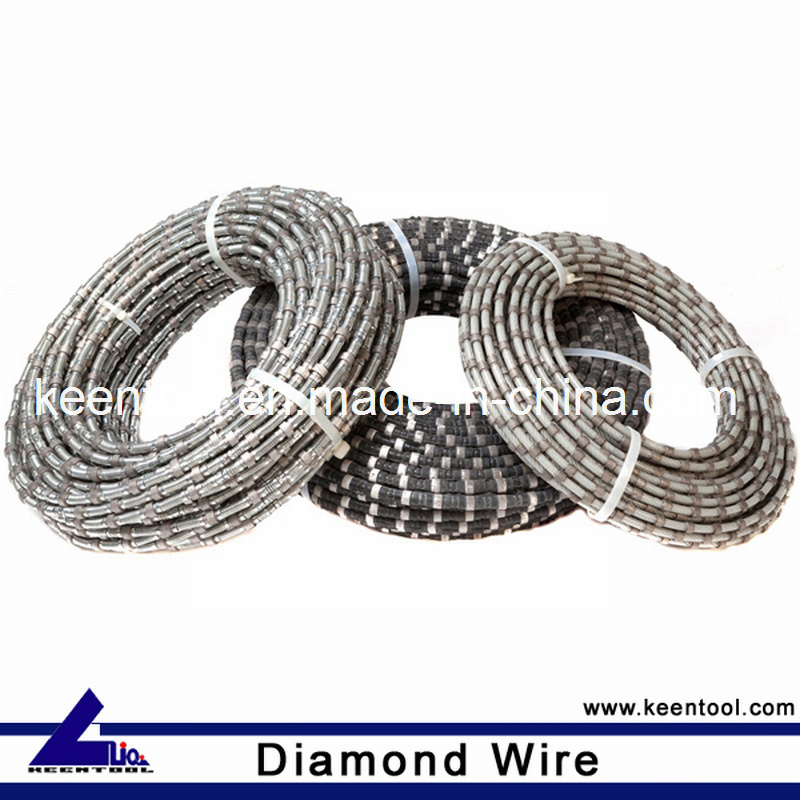

Mine Cable Saw |
| Diameter: |
11.5mm |
| Beads: |
Sintered Beads |
| No. Of Beads: |
40 /37/33/26PCS |
| Coating: |
Rubber,Spring and Plastic |
| Use: |
Wet Cutting |
| Length Of Wire: |
50m/Roll |
| Weight: |
9-10/1718.5kgs |
| Applcation: |
Mine Cutting |
| Certificaiton: |
SGS |
| Usage: |
Stone Cutting |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Sinter Beads with Rubber Injection |
| Saw Blade External Diameter: |
11.5 Mm |
Product Description
We, Keen Diamond Tool Co is a specialized manufacturer of diamond tools for stone and construction work with 20 years experience, but we mainly concentrate on equipments and diamond rope saw since 2004. We monthly produce around 8000meters wire saw and 15sets of quarry wire saw at present, and 80% of our present products are for export to USA, European, Brazil, Africa and Middle East.
We produce the mine cable saw with procedures as follows:
The mine cable saw is widely recognized as the good solution for granite quarry and processing work, due to it's relatively low comprehensive cost and high output offered. Diamond wire with vulcanised rubber is with exceptional advantages for quarrying of hard materials like granite, sandstone and slate etc, for the reasons as below:
1. Vulcanised rubber adheres to the beads and cable tightly, which protects the cable against from action of pastes, in particular when takes up small radii of curvature (beginning and end of quarry cuts)
2. Good flexibility which reduces the risk of irregular wear of diamond beads.
3. Higher safety for the operator, as good protection of internal cable from break.
Spring mine cable saw with advantages of good flexibility, low request for temperature, easy assembling, easy replacing and repairment, low cost, can be considered as the most simple and versatile of instruments for quarrying Marble, Limestone, Travertine etc.
When place order of quarry diamond rope saw, please kindly inform:
1. The power and technical parameters of wire saw machine
2. The hardness and chemical information of granite material, if possible
3. The usual dimension of cutting bench, especially the working height
4. Expected cutting performance in both speed and life
5. Special requirement if any
|
Spring Diamond Wire for Marble Quarry |
|
Specification of Beads(mm) |
Model |
Coating |
Beads No.
(Pcs/Meter) |
Hardness of Marble |
Cutting speed
(M2 /Hour) |
Cutting life
( M2/Meter) |
Φ11.0mm
Φ10.5mm |
MDW-KT-QS |
Spring |
26 |
SOFT |
16-25 |
55-75 |
|
MEDIUM |
12-16 |
45-65 |
|
HARD |
7-10 |
30-45 |
Φ11.0mm
Φ10.5mm |
MDW-KT-QR |
Rubber |
37 |
SOFT |
12-20 |
55-75 |
|
MEDIUM |
8-14 |
45-65 |
|
HARD |
5-8 |
30-45 |
|
Diamond wire for granite quarry |
|
Specification of beads(mm) |
Model |
Coating |
Beads No.
(Pcs/M) |
Hardness of Granite |
Cutting speed
( Sqm/Hr ) |
Cutting life
(Sqm/Mtr ) |
Φ11.5mm
Φ11.0mm |
GDW-KT-Q |
Rubber |
40 |
Soft |
8-12 |
28-40 |
|
Medium |
6-8 |
18-25 |
|
Hard |
3-5 |
8-15 |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
