| Prod Model: |
12m-106mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Techology: |
Drop Forged, Casting |
| Type: |
Kenter Shackle |
| Advantage: |
Manufacture & Export Ourselves |
| Supply Certificate: |
CCS, SGS, ISO, CE |
| Usage: |
Using for Connecting Link Chains in Ships |
| Material: |
20mn2, Alloy Steel , Cm490 |
| Surface Treatment: |
Self Colour, Galvanized or Painted Colours |
| Chain Size: |
According Customer Request |
| Structure: |
Single Link or Match up with Anchor Chains |
| Color: |
Self Colours or According Customer Request Painted |
Product Description
Detail Description:

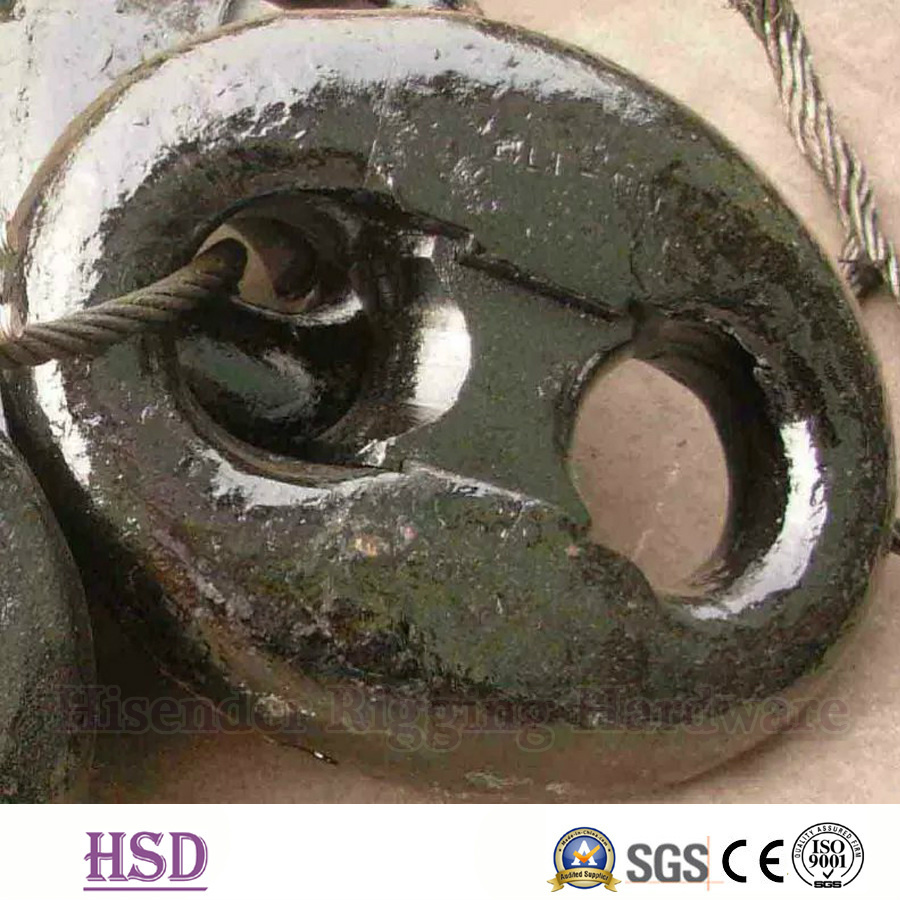

The kenter shackle comprises of two separate halves which are joined together with a centre chock and secure taper pin, which locks to the halves together. Kenters are used to join together majority of chains and typically in the marine industry they are used to join together anchor and mooring chains.
Orign: China
FOB: Qingdao
Production time: 15-45 days
Main export market: US, Australia, European countries, India.
Certificate : CE, ISO,SGS
iameter (mm) | Proof Test Load (KN) | Breaking Test Load (KN) | Proof Test Load (KN) | Breaking Test Load (KN) |
|
| U2 | U3 |
| 17.5 | 127 | 179 | 179 | 256 |
| 19 | 150 | 211 | 211 | 301 |
| 20.5 | 175 | 244 | 244 | 349 |
| 22 | 200 | 280 | 280 | 401 |
| 24 | 237 | 332 | 332 | 476 |
| 26 | 278 | 389 | 389 | 556 |
| 28 | 321 | 449 | 449 | 642 |
| 30 | 368 | 514 | 514 | 735 |
| 32 | 417 | 583 | 583 | 833 |
| 34 | 468 | 655 | 655 | 937 |
| 36 | 523 | 732 | 732 | 1050 |
| 38 | 581 | 812 | 812 | 1160 |
| 40 | 640 | 896 | 896 | 1280 |
| 42 | 703 | 981 | 981 | 1400 |
| 44 | 769 | 1080 | 1080 | 1540 |
| 46 | 837 | 1170 | 1170 | 1680 |
| 48 | 908 | 1270 | 1270 | 1810 |
We are professional Manufacturer & Exporter of kinds of kenter shackles and many other marine hardware products.
We have in this line more than 10 years.
Material : Alloy steel
Quenched & Tempered
Sincerely hope to establish long and stable business cooperations with all of you.
Free samples can post you for check and test.
Give us a chance ,we will do it much better than expect !
Qingdao Hisender Rigging Hardware Co., Ltd. is a large enterprise focused on the supply of rigging hardware, located in Shan Dong Province and has manufacturing capability.
We are professional manufacturer & exporter of rigging hardware (steel wire rope accessories and chain fittings)such as shackles, wire rope clips, thimbles, turnbuckle, hooks, links, nuts, load binder, chain and wire rope. Also we have good experience and capability to develop new products according to customer's drawings or samples, including foreged, punched and casting products.
Manufacturing Capability
We have facilities using the latest advanced technology and professional equipment sourced from Switzerland, Germany and America, so we could also develop new products according to the customers'drawings and samples. We use the latest in-process controls and inspect all the products to guarantee the high-quality of the products.
Development Prospect
We have exported our products all over the word including European, America, Japan, Korea, Australia, the Middle East and Southeast Asia. Our basic business guide line is honest, quality and reliability. Welcome to visit our company and factory in the near future. We are always trying the best to supply you the most competitive price, the best quality and service.
Sales
Our products are popular in the world Market.
We mainly export: European countries, USA, Japan, Korea, Australia, Singapore, Africa, Canada, Middle East and southeast of Asia.
We sincrely hope to establish pleasure cooperations with customers all over the world.
Free samples can post for check and test if needed.
Give us a chance, we will do it better!
