| Prod Model: |
KTL-50B/60B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Packing Machine Ktl-50A |
| Automatic Class: |
Automatic |
| Application: |
Cleaning, Detergent |
| Material: |
Grain, Powder, Liqiud, PA |
| Metering Capacity: |
5-50g |
| Speed: |
30-60 Bags/Min |
| Bags Size: |
(30-160)*(50-140) mm(L*W) |
| Accuracy: |
+/-1% |
| Power Source: |
1.6kw 220 V±10% 50 Hz |
| Achine Weight: |
250kg |
| Type: |
Weighing-type Filling Machine |
| Automatic Grade: |
Automatic |
| Material Type: |
Powder |
| Filling Valve Head: |
Single-Head |
| Feed Cylinder Structure: |
Multi-Room Feeding |
| Dosing Device: |
Capacity Cup |
| Filling Principle: |
Pressure |
| Packaging Container Lifting Structure: |
Pneumatic Lifting |
| Structure: |
Rotary |
| Packaging Type: |
Bag |
| Packaging Material: |
Plastic |

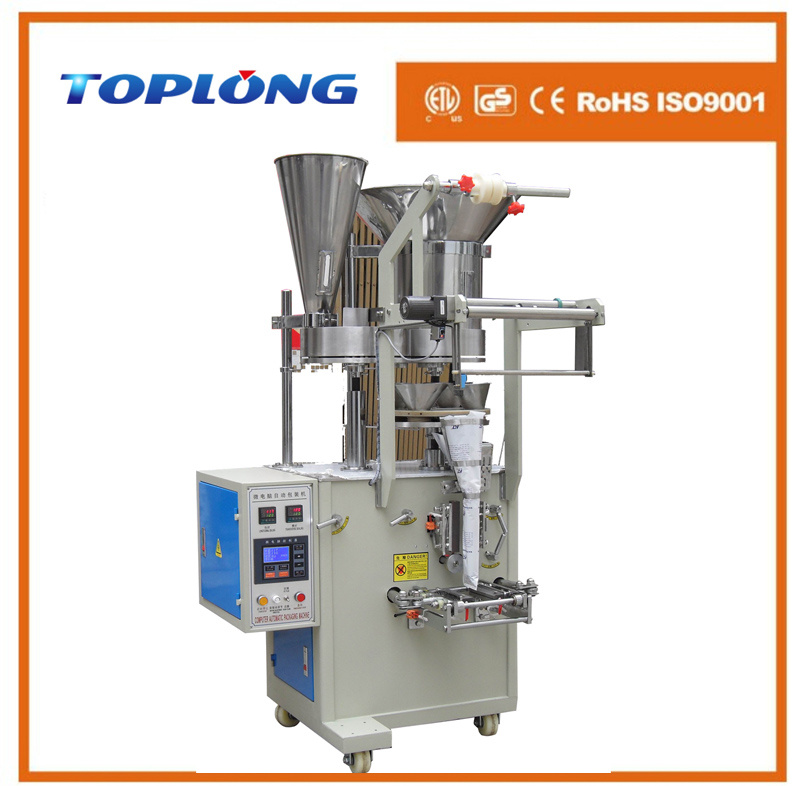

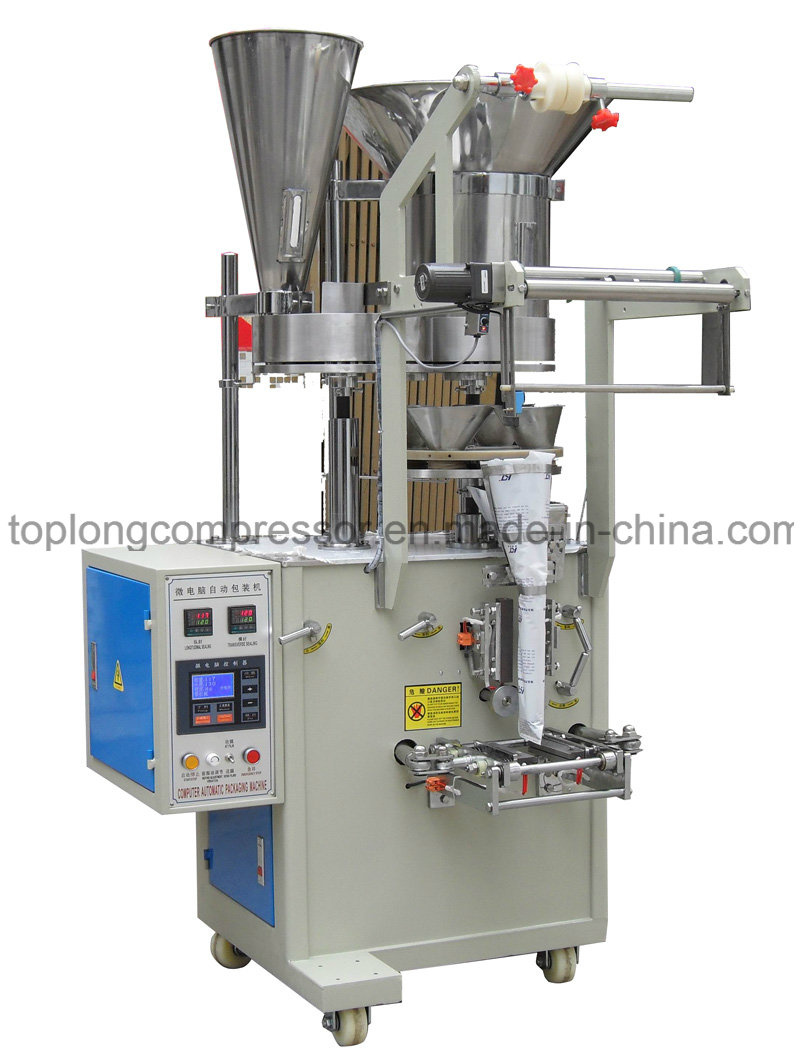

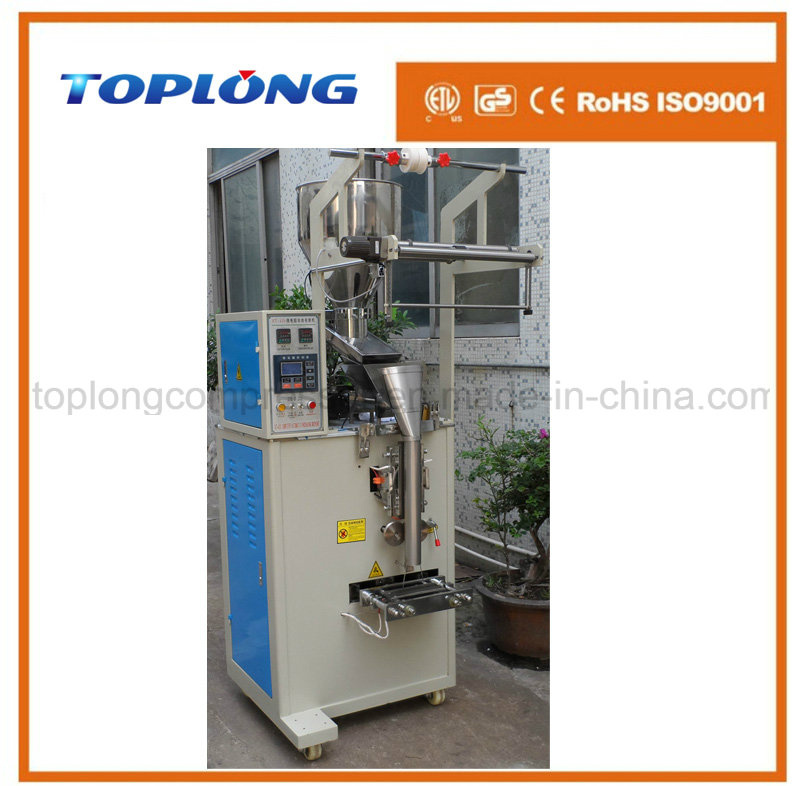

Product Description
This machine is originally created 3-step laying-off system for the bad floating goods such as soymilk powder,sesame powder &lotus root powder ,etc,Make sure the laying-off more average & weighting more precise
This kind of packing machine is very popular in packing powder and granule, such as cornmeal, black sesame powder, sugar, gourmet powder, spice, seeds, small cookies and tea leaf, detergent and all kinds of medicinal granules, etc. It can be automatically finished the processing of the bags making, weight measuring, filling, sealing and plitting.
Features:
Computer controlled, automatic-detecting and positioning the packing bag, save the packing film.
The thermos bottle is made of stainless steel, hygienic and easily cleaning.
Freely blanking, the finished state is more beautiful in appearance.
Easily adjusting the blanking weight, temperature and packing speed
Pinch roll film delivery structure, the film with a bit of statics also can be used.
Hot-pressing series No. Or production date, or equipped with foll coder according to the customer's requirement.
| Model | KTL-50B |
| Packing size(mm) | L30-200,W50-140 |
| Packing type | BACKSIDE SEAL |
| Measuring arrange | 5-100g |
| Packing speed | 30-60bags/min |
| Machine dimension | L860*W680*H1750mm |
| Total power | 1.6KW |
| Machine weight | 250KG |
| Model | KTL-60B |
| Packing size(mm) | L50-250,W50-200 |
| Packing type | Backside seal |
| Measuring arrange | 100-500g |
| Packing speed | 20-50bags/min |
| Machine dimension | L1000*W6700*H2100mm |
| Total power | 2.4KW |
| Machine weight | 400KG |
