| Prod Model: |
KMP 1530 |
| Plasma Power: |
Huayuan 60A-200A/Imported Us Powermax 60A-200A |
| Control System: |
Beijing Start Plasma Control System |
| Working Table: |
Serrate Working Platform |
| Power Supply: |
AC380/50Hz |
| Weight: |
900/1200 (Net/ Gross) |
Product Description
Best Quality CNC Plasma Metal Cutting Machine
Plasma Cutter With High Speed
The Application of this CNC Plasma cutting machine:# It is suitable for low carbon steel, copper, iron, aluminum and galvanized sheet,
titanium sheet and other metal sheet.
# It is widely used for processing sheets of machinery and electronic products,
advertising signs, crafts, iron garden, car manufacture, boat building , electrical
accessories, board cutting.
The Specifications Of our Plasma cutter:# Serrate platform working table:1300*2500mm or 1500*6000mm
# 100A Huayuan plasma power supply (America original, world most famous brand, specialized for plasma cutting equipment, strong power and long lifetime)
# Beijing START control system (domestic most famous brand, plasma specialized, can support various formats)
# Untouched following system (can adjust the distance between material and torque, ensure he accuracy)
# Taiwan Hiwin Linear square rail guide (high level grinding, fast speed, low noise and fantastic accuracy)
# Genuine FASTCAM plasma software (original, can support various formats)
# Cutting Torch (high quality, long lifetime)
# Arc voltage height controller (can ensure the machine fantastic accuracy, no vibration in operation)
# Gear-wheel transmission (C-level grinding, world famous brand, to ensure the machine high accuracy)
# Heavy duty steel frame (8mm welded steel, with aging treatment and high temperature quenching treatment, no vibration, great stability and long lifetime)
#Leadshine stepper motor and drivers (domestic famous brand, lose no step, can ensure the machine high efficiency and accuracy)
Technical parameters of our plasma cutting machine:Model Parameter | Industrial plasma cutting machine |
Model | KMP-1325 | KMP-1530 | KMP-2030 |
Working size | 1300*2500mm | 1500*3000mm | 2000*3000mm |
Three axes Repeat positioning accuracy | ±0.05mm |
Process precision | ±0.3mm |
Transmission system | X,Y Taiwan Hiwin high-precision,zero clearance increased linear guide+ rack Z the arc voltage control |
Max. cutting speed | 15000mm/min |
Working voltage | AC220/380V 60HZ |
Control system | Beijing START plasma cutting system Standard high sensitivity arc voltage device |
Software support | FASTCAM,AutoCAD, |
Instruction format | G code |
Drive system | Stepper motor (Optional Taiwan AC servo motor) |

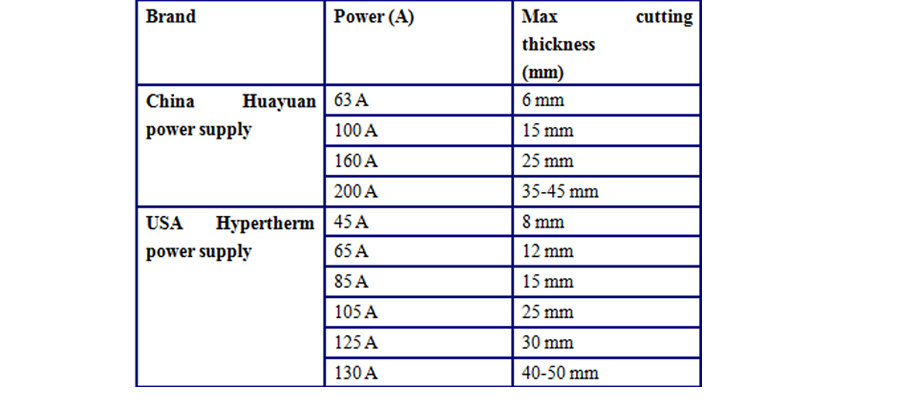

Plasma power | Domestic Huayuan 60A-200A Imported US Hypertherm 60A-200A |
Power cutting ability | Domestic Huayuan 0.5-25mm US Powermax series 0.5-30mm |
Working pressure | 0.65-0.7Mpa |

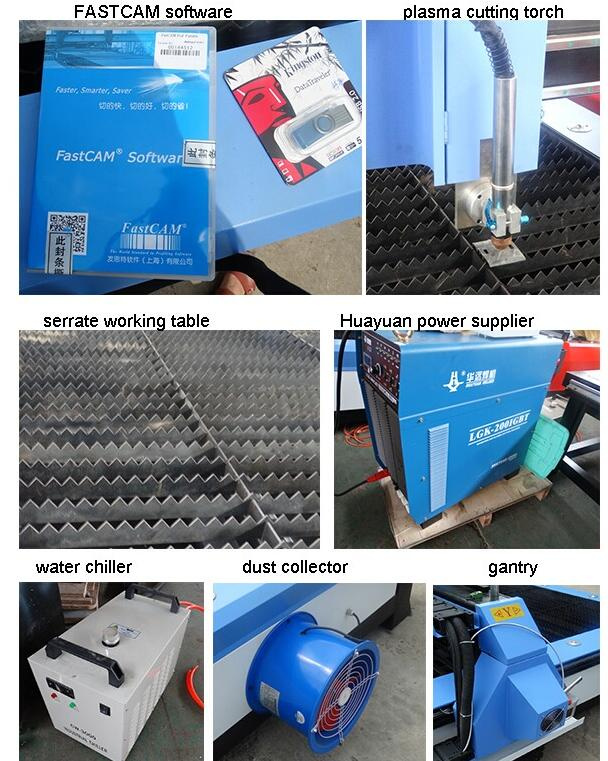

The spare parts of Our Plasma Cutting Machine:

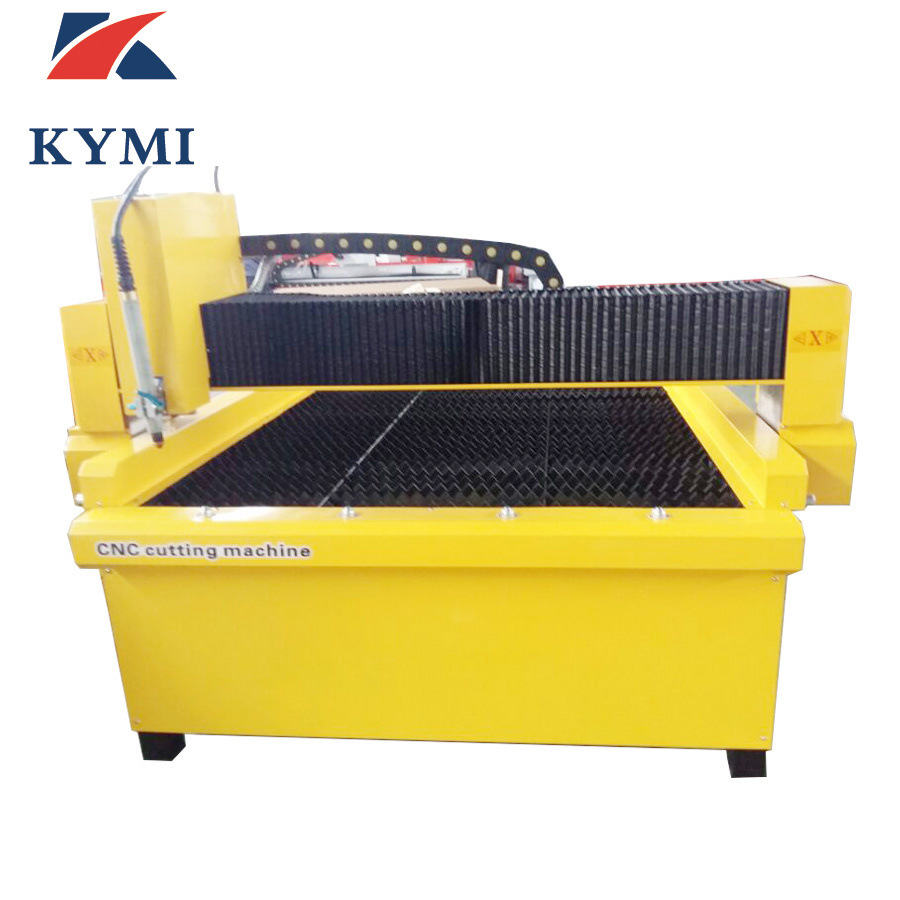

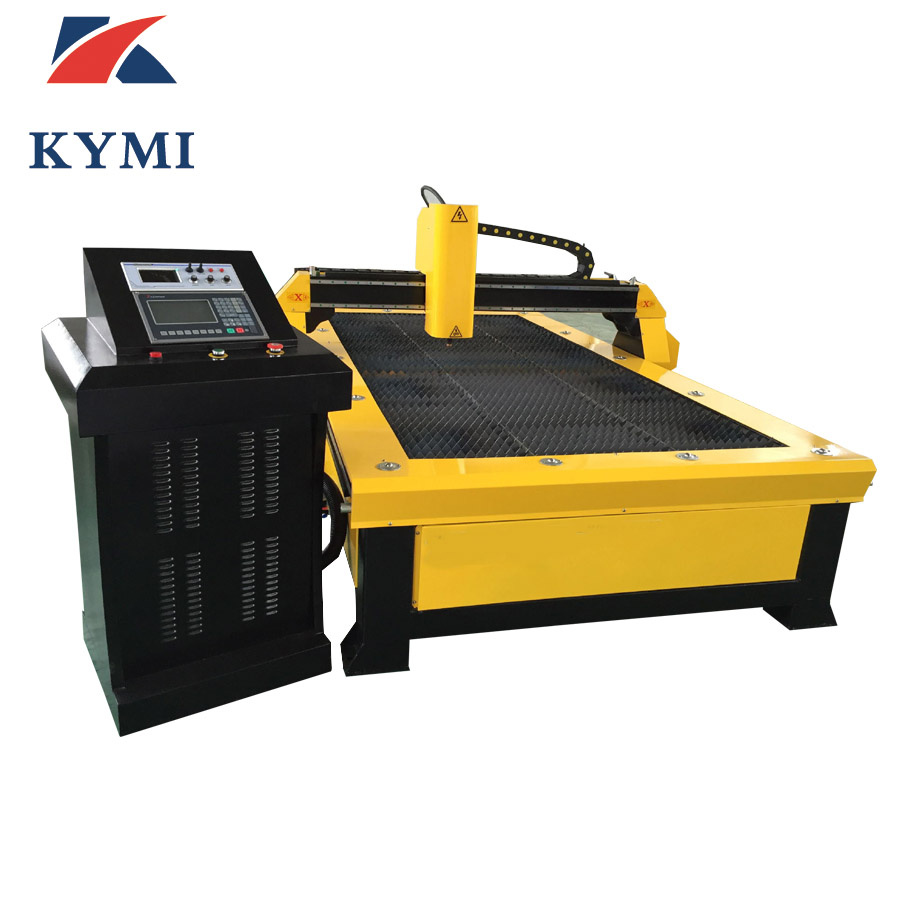

The Samples of our Machine:
After service of cnc plasma cutting machine:1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed
free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
RFQ:1.How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference,
or you could tell us your work piece, our technician will recommend the most suitable machine for you.
Furthermore, we can make a sample in advance for you to check if your drawing is provided.
2. If the machine problems, how do you provide service?
First of all, we will immediately begin to give you solve the problem, if need to staff in the past to help solve,
our stone carving machine after-sales staff will arrive within 3 working days (according to the distance).
3.How do you do what stone carving tools, how to get enough.
CNC engraving need cutting tools, we generally do not directly provide,
we will call you from A partner, ordering tool directly by you. We try not to do, in order to reduce misunderstanding
4.If the machine has problems, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone.
Our after-sales staff can come to your workshop if the problem still can not be fixed.
5.How long does it take to machine a square meters relief?
Engraving machine working efficiency and the complexity of the design, processing depth, material processing and ease.
So bad time estimates, carved in our company sample page with related practical sampling data for your reference.
