L-808d 18 Inch Subwoofer Box Design Line Array Speaker

Name: L-808d 18 Inch Subwoofer Box Design Line Array Speaker
Brand: tool-buy.com
SKU: 814379465
Availability: InStock
Rating: 4.4 (110 reviews)

Price:	US $ 563-583/Piece
Min Order:	8/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Guangzhou Jusbe Electronic Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	L-808D
Rated Power:	500W
Max Power:	2000W
Resistance:	4ohms
Max Spl:	132dB
Woofer Unit:	12 Inch X 2
Frequency Response:	45Hz-2000Hz
Connector:	Speakon Nl4×1 Pin1+/2+POS.Pin1-/2-Neg
Surface Treatment:	Gold Sand Paint
Suspension Hardware:	20*M8 Suspension Po
N.W.:	42kg/Piece
Noise:	<95dB
Hi-Fi:	Not Hi-Fi
Operation Mode:	Touch Control
Speaker System:	2.0 Channel
Speaker Material:	Wood
Application:	Stage
Certification:	FCC
THD:	<0.005%
Monitor:	No

Product Description

Product Description

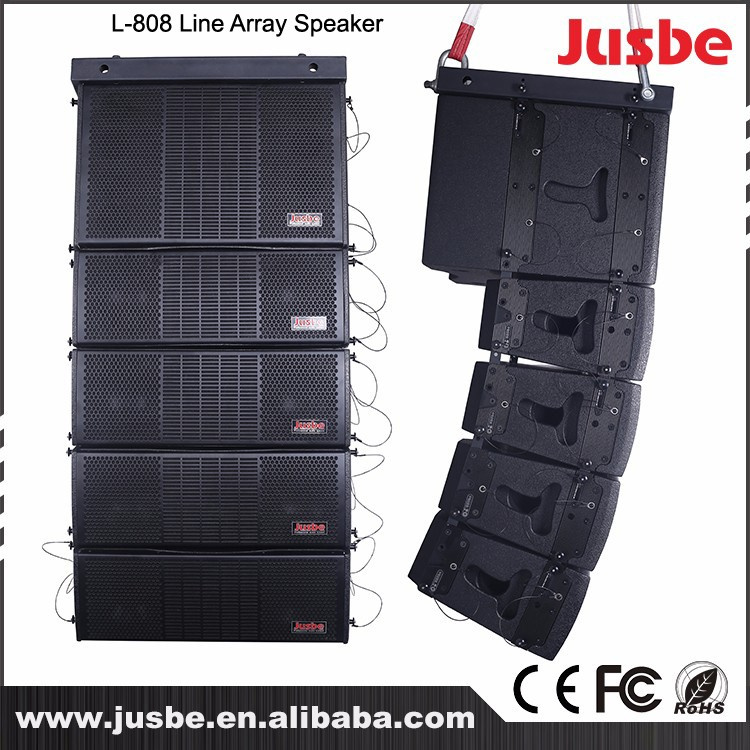

L-808 Most popular high power efficiency line array speaker sound system subwoofer stage

Specification:
L-808 Line Array Feature
♣. Configurate high quality unit, patent linear horn, beautiful sound, accurate projection.
♣. High precision linear array speaker system, which has a large dynamic capacity. It can restore spectrum signal in specified range faithfully when use phase correction and patent linear horn.
♣. Application: stadium, small/medium performance system, concert hall, performance & art concert,

Product Name	L-808d 18 Inch Subwoofer Box Design line array Speaker
Item No.	L-808	L-810	L-812	L-832
Raterd Power	400W	HF200W LF400W	200W	HF200W MI300W LF400W
Max Input Power	1600W	HF800W LF1600W	1600W	HF800W MI1200W LF1600W
Impedance	8Ω	16Ω	8Ω	16Ω
Frequency Response	60Hz-18KHz	55Hz-18KHz	55Hz-19KHz	45Hz-19KHz
System Type	Two-frequency	Two-frequency	Two-frequency	Three-frequency
Tweeter Unit	1.75'' tweeter * 1	1.75'' tweeter * 2	1.75'' tweeter * 2	1.75'' tweeter * 2
Woofer Unit	8 inch woofer* 2	10 inch woofer* 2	12 inch woofer* 2	6.5" mid2 12"woofer 2
SPL	120dB	128dB	135dB	131dB
Sensitivity(1W/1m)	96dB/W(1m)	101dB/W(1m)	101dB/W(1m)	102dB/W(1m)
Connector	4 PIN PA-com Jack*2
Material	15mm plywood	18mm plywood	15mm plywood	18mm plywood
Surface treatment	Gold sand paint
Color	Black
Product Size(mm/pc )	250H780W407D	370H900W520D	355H1000W550D	460H1070W580D
Net Weight(pc)	20KG	50KG	48KG	60KG

Program

Packaging & Shipping

FAQ

1.Q: Are you a factory or trading company?

A: We are a manufacturer (with our own factory) since 2000. We are a leading manufacturer, exporter and supply chain service provider on professional audio system.

2.Q:Where is your factory located? How can I visit there?

A: Our factory is located in Nancun District, Guangzhou City, Guangdong Province, China.

About 30mins by car fromGuangzhou South Railway Station, We welcome customers from all over the world !

3.Q: Can you do OEM and ODM?

A: Yes, both. We can put your idea into products.

We have professional research development team, develop the products according to customer required.

Guangzhou Jusbe Electronics Technology Co. Ltd. was established in 2002. For 14 years, we have been dedicated in the field of Professional audio system industry. As the solution supplier and manufacturer of Audio system, we're using artificial intelligence to change the world step by step: Amplifier, speakers, microphone, line array series, peripheral equipment, mixer...

Our factory covers 10 thousand square meters, including 2 main workshop(professional audio products workshop, teaching audio products workshop) and accessory workshop. In order to provide our clients with high performance products in competitive price, we import ISO9001 Quality Management System, ISO14000 Environment Management System and SRRC System to our factory. What's more, there're nearly 300 marketing staff, 30 branches all over the country.

In order to meet the global trend, our brand Jusbe has been registrated in USA, Hongkong. In the meantime, we have built strategic relationship with 20 excellent global partners.

It's rarely to find such a manufacturing basement of large scale and multiple systems. Relying on 15 major series and more than 1000 products, we're confidence to provide our clients from various area with complete and individual solution. For now, it's proud to say that we have 100 thousand successful cases worldwide and our clients're satisfied with them.

Our products have been applied to many important events or buildings, such as Google experience center, China Telecom, Guangzhou South Railway Station, Hengda Real Estate Group etc.
