| Prod Model: |
CY-H550 |
| Power Supply: |
1050W |
| PC Control: |
RS232 Port with Software |
| Net Weight: |
5.3kg |
| Size: |
360 mm L X 215 mm W X 112 mm H |
| Type: |
Coating Production Line |
| Coating: |
Vacuum Coating |
| Substrate: |
Steel |
Product Description

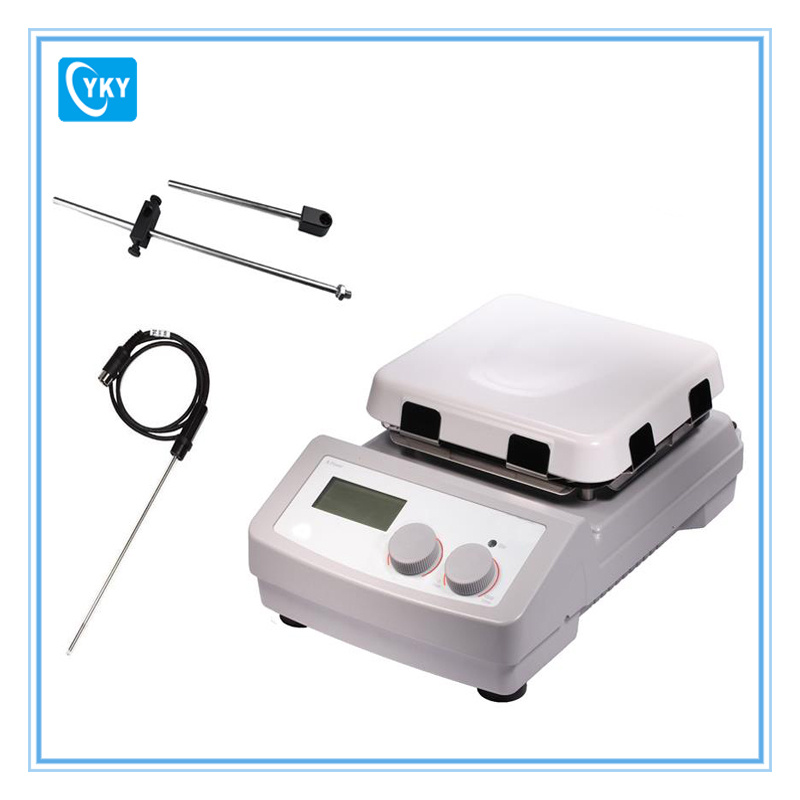

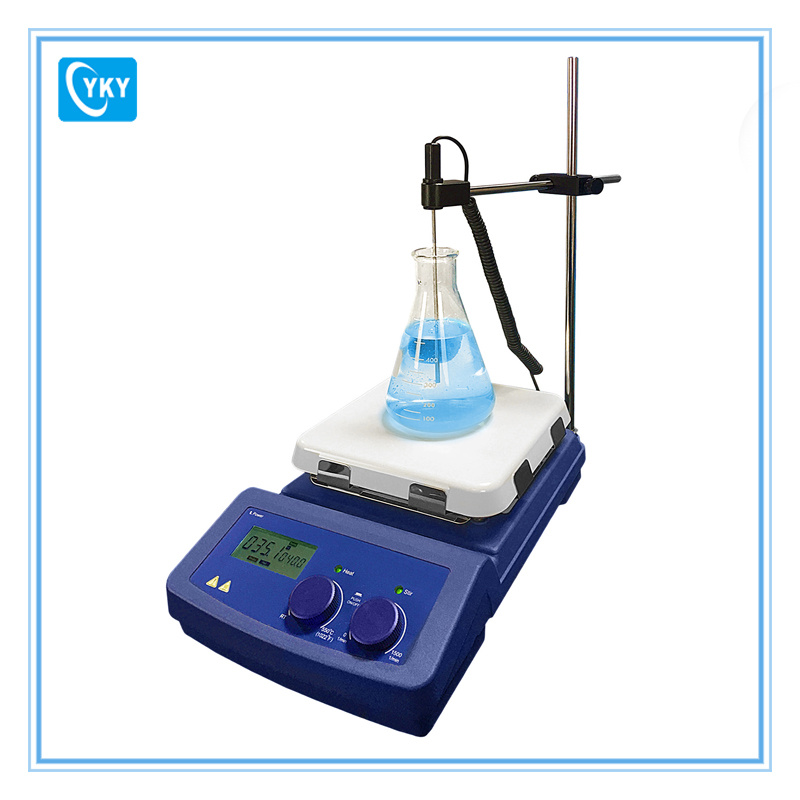

CY-H550 is a CE certified stirring hot plate with the programmable stirring operation, digital display, and the external temperature probe PT-1000. The maximum temperature of the heating surface is 550°C.
SPECIFICATIONS:
Features
| - Easy-to-read LCD display for setting stirring speed and heating surface temperature
- Glass Ceramic heating surface (550 °C max temperature) with over-temperature protection
- Brushless DC motor for maintenance free, long equipment life
- HOT TOP warning with prominent display when heating surface is above 50 °C (122 °F)
- External temperature probe (PT1000, 0 - 400 °C) and its supporting fixture are included for measuring liquid temperature
- One magnetic stirring bar is included for uniform stirring / mixing
|
| Input Power | - AC 110V, 50 / 60 Hz
- For 220V version, a 1500W transformer will be included with extra cost.
- Total Power: 1050 W; Heating Power: 1000 W
|
Heating Surface
| - Size: 7" x 7" (176 mm x 176 mm)
- Material: Glass Ceramic
- Heating temperature: 550 °C max with over-temperature protection
- Temperature accuracy by PT-1000: 0.2°C
- Temperature display resolution: 0.1 °C
- External temperature probe (PT1000, 0 - 400 °C) and its supporting fixture are included for measuring liquid temperature
|
| Stirring & Mixing | - Stirring speed: 100 - 1500 rpm
- Stirring capacity: 20 L (water)
- Stirring Volume: Dia. 10 mm x 80 mm Height
- One magnetic stirring bar is included for uniform stirring/ mixing
- Note: No beaker is included with the purchase
|
| PC Control | - RS 232 Port with software
|
| Size | - 360 mm L x 215 mm W x 112 mm H
|
| Net Weight | |
| Compliance | |
| Warranty | - One year limited warranty with lifetime support
|
Pictures of Products
Packing&Shipping:
PLY WOOD BOX as below picture show. or as customer request.
Shipping and transportation
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
Our Services:
Payment
T/T, L/C, WEST UNION, PAYPAL, ESCROW AND ETC
Warranty
Main product is 12month, except wearing parts.
Wearing parts as below:
Quartz tube, vacuum flange, tube blockage, O-ring, protective gloves, crucible furnace hook, PTFE tube,
stainless steel fittings, stainless steel bellows, adapter, hex wrench
Company Information:

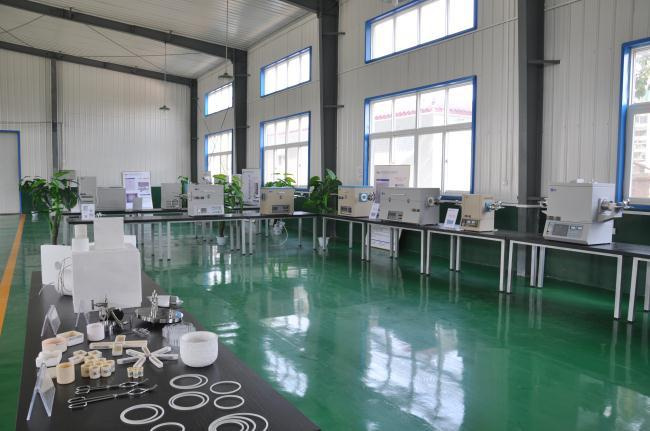

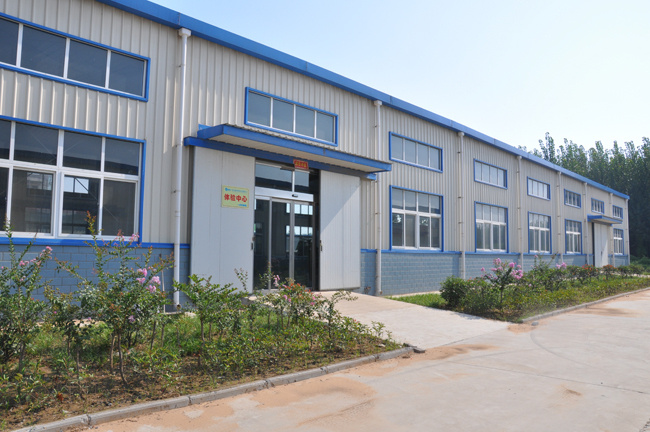

Factory show
