| Prod Model: |
MC-ES300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tissue Processor: |
Nominal Supply Voltage |
| Linear Automatic Tissue Processor: |
Maximum Power Draw |
| Fast Tissue Processor: |
Working Temperature |
| Sample Arm Moves Up And Down: |
1centigrade |
| Reservoir: |
1centigrade |
| Capacity: |
3.1 L |
| Dimensions: |
(W*D*H) 560×530×350mm |
| Weight: |
30kg |
| Classification: |
Physiological Functions of Diagnosis and Monitoring Equipment |
| Certification: |
ISO13485 |
| Type: |
Tissue |
| Group: |
All |
Product Description
laboratory stool, laboratory equipment, laboratory tools

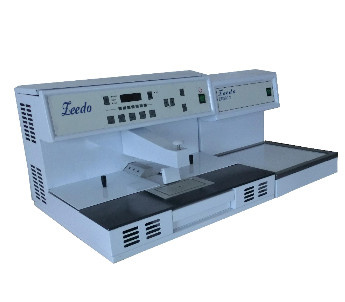

Model: MC-ES300
Decription of the laboratory stool
The Embedding center is composed of two modules, main console and Cryo Console. It is independent design, can put the position left-to-right or right-to-left, to meet different habits of customers. The large working surface allows user processing many samples at the same time. The temperature and work start time can be settable through the control panel.
Characteristics:
Main Console of the Fast Tissue Processor:
© The ergonomic large working surface allows processing many samples at same time.
© The large cold spot Peltier is designed to orient even small and big samples (Mega Cassettes).
© Work start time and day can be programmed automatically.
© The tissue embedding cassettes and base molds trays are removable and can be set at different temperatures.
Cryo Console of the laboratory stool:
© It is composed of a compressor cooled work surface held to chill the paraffin blocks rapidly.
© The Teflon coated surface allows a minimum ice formation and easy cleaning.
© Temperature is adjustable from ambient to-13centigrade.
© It can be used as a stand alone unit near the microtome station.
Technical data of the laboratory stool
Main Console:
© Nominal supply voltage: 220V/50HZ or 110V/60HZ
© Maximum power draw: 1000VA
© Working temperature: From ambient 90 centigrade
© Increments: 1centigrade
© Capacity: Paraffin reservoir: 3.1 L
Cassetes/molds tray: 1.4L
© Dimensions: (W*D*H) 560×530×350mm
© Weight: 30kg
Cryo Console of the laboratory stool:
© Nominal supply voltage: 220V/50HZor110V/60HZ
© Maximum power draw: 110VA
© Working temperature: From ambient to -20 centigrade
© Increments 1 centigrade
© Dimensions: (W*D*H) 340mm * 540mm * 410mm
© Weight: 24kg
