Large Torque Motor Frequency Inverter AC Drives for Heavy Machine
| Price: |
US $ 86/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
S2800E |
| Item Name: |
Large Torque Motor Frequency Inverter |
| Three Phase: |
AC 380V/47-63Hz |
| Single Phase: |
AC 220V/47-63Hz |
| Relay Output: |
1 Set |
| Coupling Output: |
1 Set |
| Output Frequency Range: |
0-600Hz |
| Multi-Speed Function: |
8 Speeds |
| Carrier Frequency: |
0.5-15Hz |
| Pid Function: |
Built in Pid |
| Control Mode: |
Sensorless Vector Control;V/F Control |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Voltage Of Power Supply: |
220V/380V/660V |
| Function: |
Heavy Loading Machines |
| Brand: |
Machtric |
Product Description

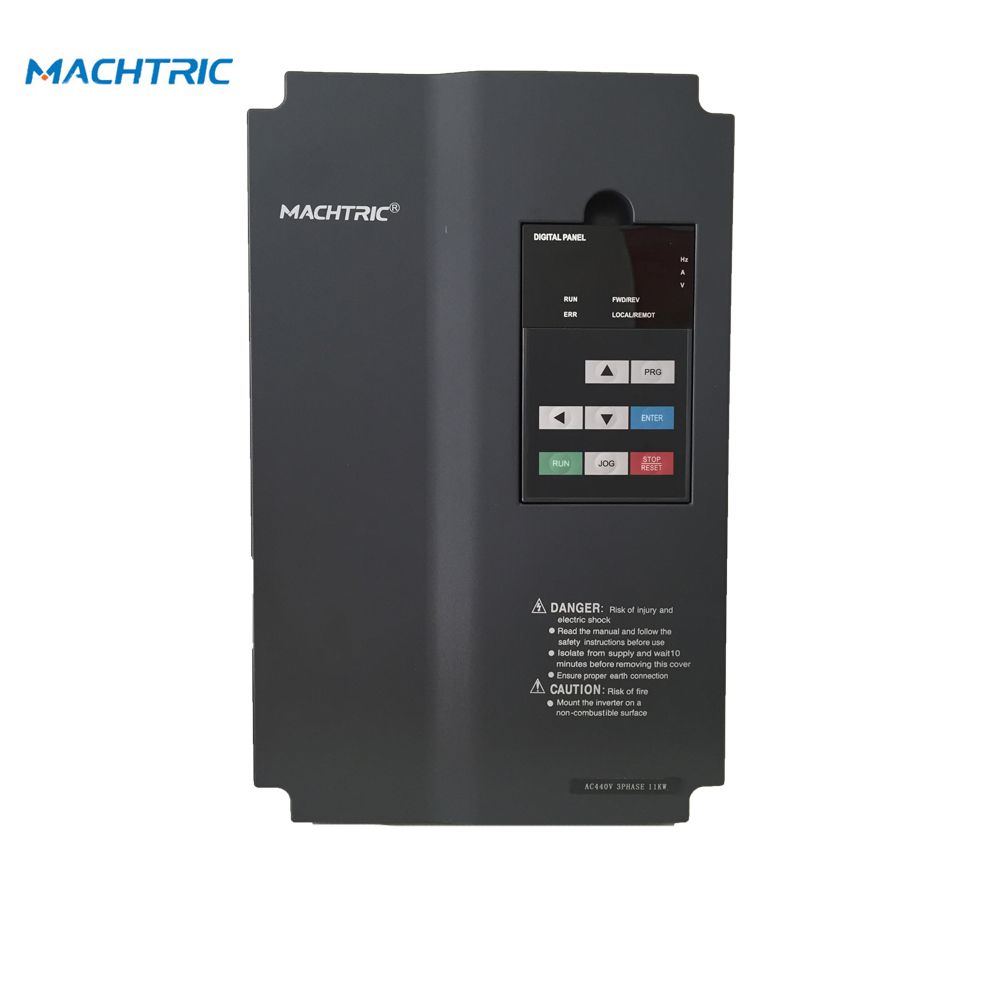

Large Torque Motor Frequency Inverter AC Drives for Heavy Machine
1.Product Features:1)Excellent Quality and Perfect Performance,got very good feedback from our customers.
2)Open Loop Control
3)Can be 220V/380V/660V
4)Widely used in heavy loading machine 2.Target Market Of S2800E Series Inverter:| Paper Machinery | Screw output Device |
| Drawing Equipment | Dyeing Plant |
| Injection plastic equipment | Air conditioning systerm |
| Machine tool equipment | Boiler systerm |
| Chemical fiber equipment | Water Supply,Oil transportation installation.Etc |
| Textile equipment | |
3.Product Specification:| Model | S2800 E |
| Input | Rated Voltage& Frequency | Single phase AC 220V/47~63Hz
Three-phase AC 380V/47~63Hz |
| Voltage Allowable Range | 220/380 ±15% |
| Output | Output Voltage Range | 1~rated input voltage |
| Output Frequency Range | 0~600Hz |
Technical
| Control Mode | Sensorless Vector Control, V/F control |
| Overload Capacity | 150% rated current in 60s; 180% rated current in 10s |
| Start Torque | 0.5Hz/150% with vector senserless control |
| Adjustment Ratio | 1:100 with vector senserless control |
| Speed Control Accuracy | Maximum speed ±0.5% with vector senserless control |
| Carrier Frequency | 0.5~15Hz |
| Programmable Digital Input | 4 terminals |
| Programmable Analog Input | FIV:0~10V, FIC:0~10V or 0~20mA |
| Coupling Output | 1 set |
| Relay Output | 1 set |
| Analog Output | 1 set-option of 4~20mA/ 0~10V |
| Function | Frequency Setting | Digital, Analog, Series communication, Multi-Speed, PID, etc |
| PID Function | Built in |
| Multi-speed Function | 8 speeds |
| Adjustable frequency | Stable frequency |
| Off Power | Keep running in power off instantly |
| Jog Key Function | Multi-function setting by Users |
| Voltage Adjustment | Auto maintain output voltage stable in changing of power |
| Failure Protection | 25 types of failure protection: over current, over voltage, low voltage,
over heat, short phase, over load, etc, |

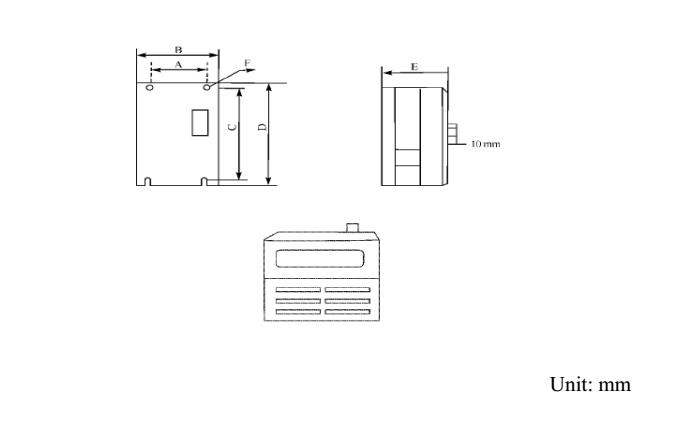

4.Inverter Outline Dimension Drawings:

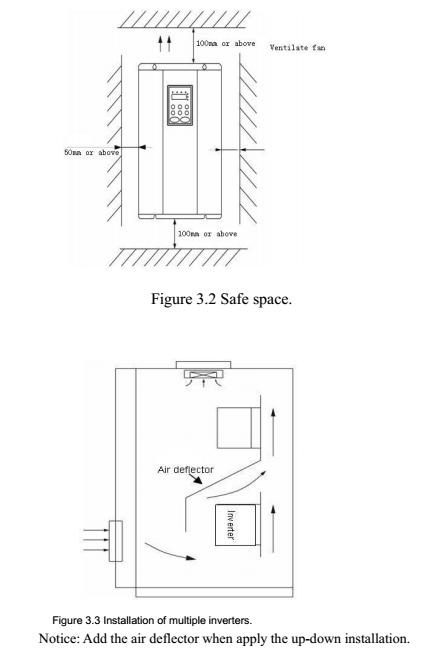

5.Installation Space:

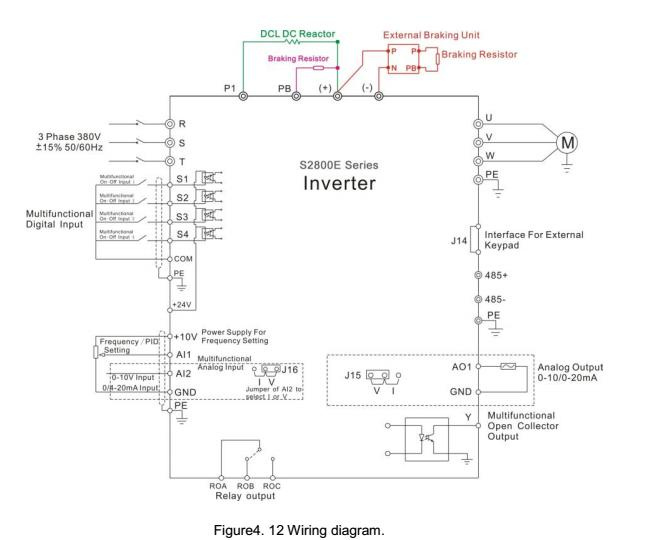

6.Typical Wiring Diagram:
