Prod Model:	ST-FC3015-500CEM
Laser Power:	500W
Laser Type:	Fiber Laser
Laser Lifetime:	100, 000 Hours
Gas Control Method:	Automatic by SMC Proportion Valve
Max. Cutting Thickness:	6mm(Depend on The Actual Materials)
Effective Cutting Size:	1500*3000mm
Laser Cutting Head:	Swiss Brand Raytools
Gantry Structure:	Aluminium Casting
Machine Weight:	3000kg
Machine Power Supply:	380V, 50Hz/Three Phase

Product Description

Laser CNC cutter/CNC laser cutting/CNC laser cutting machine for metal

1, Machine's main features

Machine consists of machine host, computer control systems, fiber laser cutting head, chillers, auxiliary decency components.

Machine gantry structure, using Japan YASKAWA servo motors drive rack and pinion feed, high precision and fast speed, dual-drive gear and rack transmission instead of the traditional ball screw transmission which makes the machine empty moving speed up to 40-50meters/Min.

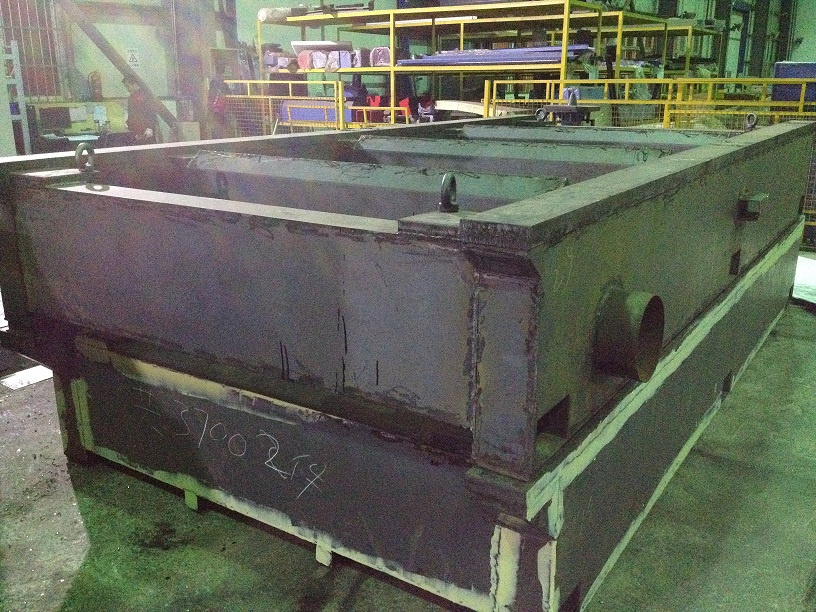

Bed gantry, machine welded structure, aging treatment after annealing, roughing, finishing, can completely eliminate stress welding and machining, rigid, high precision, can be maintained long-term use not deformed( at least 20 years).

X, Y axes are imported Japan YASKAWA high precision servo motors, high speed, high torque, and high inertia, stable and durable. Ensure the machine's high speed, high precision and acceleration.

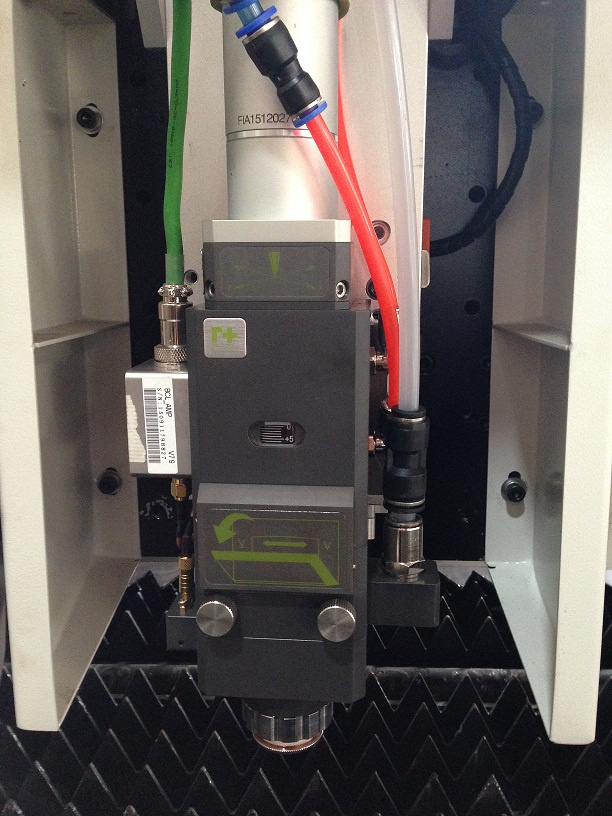

Special cutting software, integration of a number of laser cutting control specific modules, powerful, good man-machine interface, easy operation. The cutting head selection of Swiss brand high quality Ray Tools brand fiber laser cutting head as well as dedicated capacitive sensing, high precision sensor, responsive, performance of the most stable and reliable.

Control systems; Use of computer-controlled electric table translation is complete work piece cutting and so on. Cutting can be done in any graphic editor and sports plane.

Machine main parts adopt the Europe, Japan and Taiwan famous brand, its China's price but European machine quality.

2, Machine main technical advantage

2.1 Machine tool

ST-FC3015 series bed with gantry design, machine welded structure, beams constructed of cast aluminum after annealing aging treatment, and then roughing, finishing, can completely eliminate stress welding and machining, rigidity, precision high, can be maintained long-term use at least 20 years not deformed.

Machine Beam gantry with the overall Aluminium casting parts which can reduce weight beams, to ensure good stability, high-speed operation can meet the machine.

Machine weighing 4 tons, variable analysis technique using structural dynamic design principle and finite element method designed machine base has excellent static and dynamic performance.

ST-FC3015 machine's technical parameters
Floor area	About 4650 * 2520mm (excluding loading and unloading area)
Allow material Maximum cutting area	1500*3000mm
Machine Gross weight	4000KG
Power supply requirements	380V/ 50Hz	Total power	20KW
Environmental requirements	Temperature range: 10-35 ºC Humidity range: 40-85% 1, 000 meters above sea level, the use of environment non-flammable, explosive, magnetic, strong earthquakes
Equipment moving system parameters
Cutting speed, acceleration	0-50m/min 0-3000mm/s2
Air-way speed, acceleration	0-50m/min
Positioning accuracy	<0.03mm/m

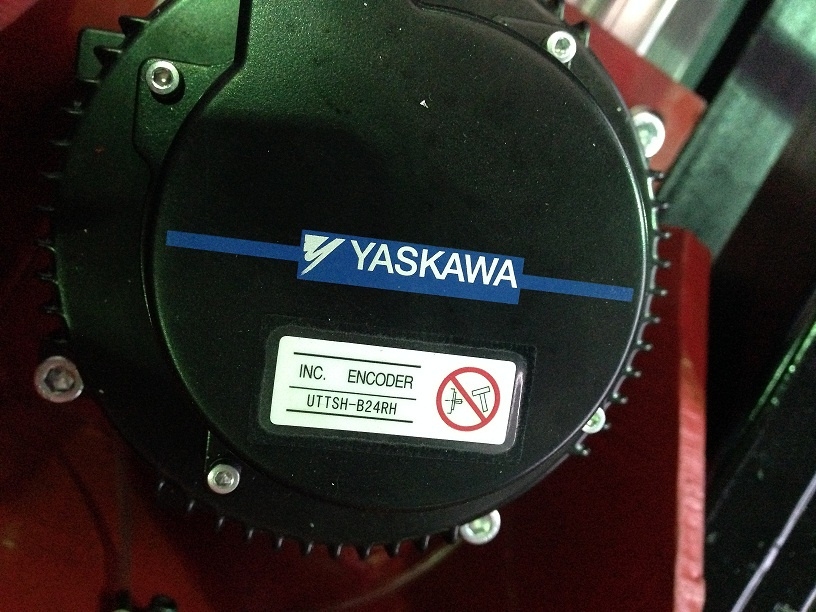

Drive System	Adopt Japan YASKAWA servo motors drive
Transmission	All use high precision helical rack and pinion
Feedback and transport control systems	Dedicated transport and control system
Ventilation system	Fixed lower ventilation
Workbench Type	Rack Workbench

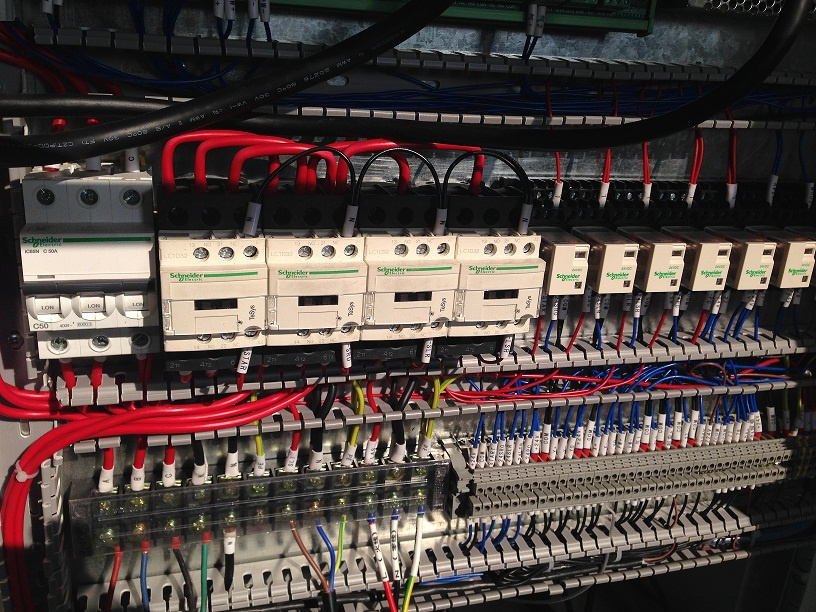

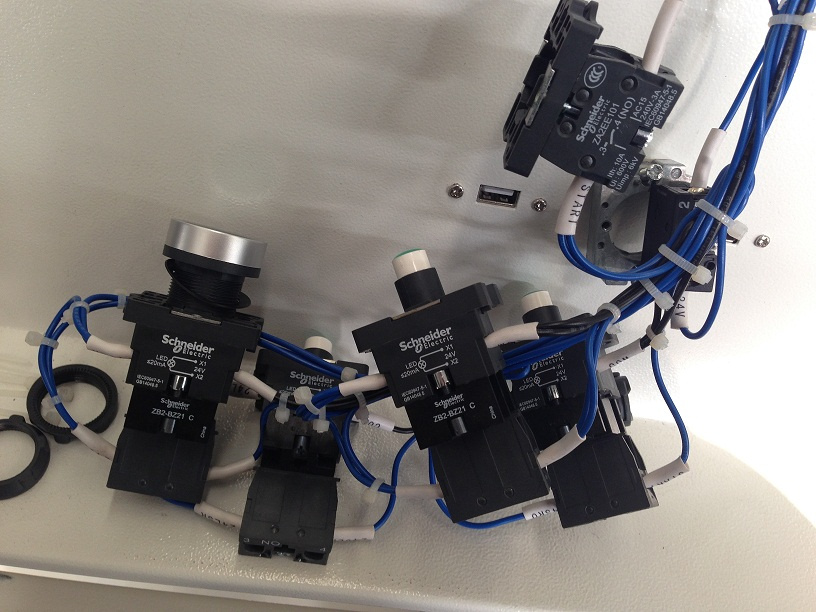

Circuit and protection system	Standard Design

3, Our fibe laser cutting machine main laser cutting functions

ST-FL Series Laser Cutting macine main function
No.	Function	Description
1	Height Follow-Up	Torch Move Up And Down According To Plate Height
2	Power Control	Laser Power Control According To Slope
3	Reverse Function	Reverse To Execute NC Program
4	Breakpoint Return	Return To Breakpoint After Recovery
5	Multi Piercing	Pulse, Blasting, Progress, High-Speed
6	Lead Line	Set Lead Line Parameter

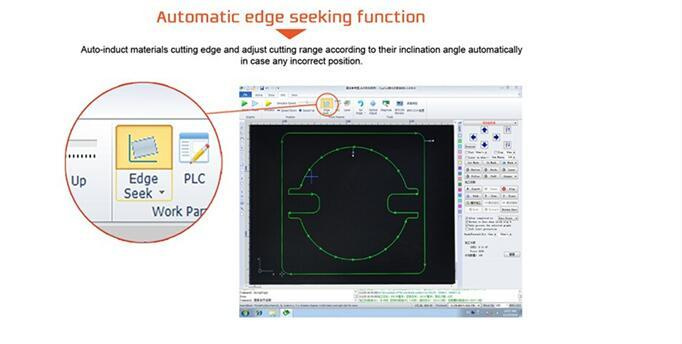

7	Auto Edge-Finding	Find Cutting Piece Coordinate Automatically
8	Leapforg Function	Leapforg To Improve Cutting Efficiency
9	Common Line	Common Line To Improve Cutting Efficiency
10	Marking Function	Mark Any Shape On Plate

4, Laser cutting thickness and speed for reference ( based on the laser power 800W, other laser power the data will be little difference)

Material	Thickness (mm)	Recommend Cutting Speed(mm/min)	Max Cutting Speed(mm/min)	Power (W)	Cutting Gas	Gas Pressure (kPa)	Focus (mm)	Nozzle Model	Defocusing (mm)
SS	1	10000	12000	700	N2	8	0	1.5	0.7
SS	1.5	5000	5500	700	N2	8			0.7
SS	2	2500	3000	700	N2	9	-1	1.5	0.7
SS	3	1500	1800	700	N2	9	-2	2	0.7
SS	4	1200	1400	700	N2	9	-2	2	0.7
SS	5	600	680	700	N2	10	-3	2	0.7
MS	0.5	9000	10000	700	O2	1	2	1.2	0.7
MS	1	8000	9000	700	O2	1	2	1.2	0.7
MS	1.5	6200	7000	700	O2	1.4	2	1.2	0.7
MS	2	3500	4000	700	O2	1.4	2	1.2	0.7
MS	3	3000	3600	700	O2	1.2	2	1.2	0.7
MS	4	1800	2000	700	O2	1.2	2	1.2	0.7
MS	5	1500	1800	700	O2	0.6	2	1.2	0.7
MS	6	1100	1200	700	O2	0.8	2	1.5	0.7
MS	8	900	1000	700	O2	0.6	2	1.5	0.7
MS	10	700	800	700	O2	0.7	2.5	1.5	0.7

5, Machine Rough Consumption costs ( based on laser power 800W machine, the other laser power the data will be little difference)

A> Total Power Consumption

Machine Part	Power (kW)	Power Consumption (kW/Hour)	Note
Laser Generator	5.8	<=21	Due to the power price is different in every country, so I can only give power consumption, couldn't give total price cost
CNC Table	5.8
Cooling Unit	5
Extraction Filter	4.4

B> Gas Consumption

Gas	Consumption (Minute/Bottle)	Note	Note
O2	60	Calculated based on 1mm MS Plate	Due to the gas price is different in every country, so I can only give gas consumption, couldn't give total price cost
N2	15	Calculated based on 1mm SS Plate

C> Consumables parts

Consumables	Life(Hour)	Unit Price (USD/Piece)	Total Cost (USD/Hour)	Note
Protective Mirror	>=240	43	0.18	If working environment is good, then consumables' Life will be longer
Nozzle	>=600	21.4	0.04
Ceramic Ring	>=1500	108	0.07
Total			0.29 USD/Hour

Total Consumption

Item	Power Consumption	Gas Consumption (USD/Hour)	Consumables	Note
O2	<=21 kW/Hour	60 (Minute/Bottle)	0.29 USD/Hour	Calculated based on 1mm MS Plate
N2	<=21kW/Hour	15 (Minute/Bottle)	0.29 USD/Hour	Calculated based on 1mm SS Plate

6, Laser cutting software(automatic nesting software) introduction

"Laser cutting design software" is set for flat cutting design software, whose main goal is to provide image processing, parameter settings, the custom cutting process editor, simulation, and idling sorting and processing
It supports the following data input mode

6.1) After time support DXF, PLT and other graphical data formats accepted international standard G code Mater Cam, Type3, Wentai software generated DXF import graphics, text outlines AutoCAD direct extraction system transferred graphic image data, you can edit the layout (like zoom, rotate, align, copy, combination, smooth, merging operation) of the imported data to automatically check the legality, such as: Closed, overlapping, self-intersecting, distance between the detection of graphics, the cutting type (female cut, Yang cut), and external relations, interference relationship, automatic calculation of introducing cutting patterns, export line.

6.2) Process according to need, can be freely modified start position and graphics processing direction, while the system dynamically adjust the introduction of lead position, file import always automatically optimize the processing sequence, but also can be manually adjusted to reduce the processing time and improve processing efficiency select the graphic output, support anywhere in the processing of local data, particularly useful for feeding, while you can use the crop function, a graphics processing locally unique breakpoint, the process can go forward along the track, rewind, flexibility encountered each process case, according to the graphic processing, raw material size, automatic nesting:
