| Prod Model: |
HQ600D |
| Table Tilting: |
0-85degree |
| Blade Rotate: |
0-90degree |
| Size (Lxwxh): |
5.9X3.5X2.6m |
| Cutting Thick: |
180mm |
| Power: |
by Electric |
| Usage Field: |
Stone Marble Granite |
| Type: |
Laser Cutting Machine |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description

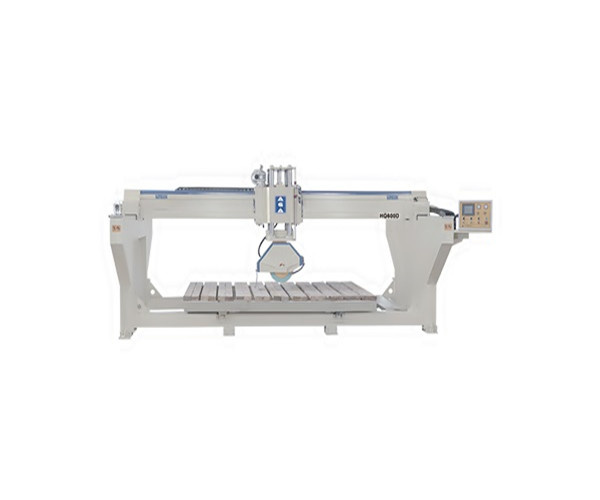

Automatic Bridge Saw with Turn 90 Degree Table Rotation (HQ600D):
1. ISO, CE Certification.
2. Good services and warranty.
3. High power and easily operation.
Basic Info:
Bridge saw of mono structure with Four Pistons. A strong bridge saw cutting granite, marble and diversified stones. It is able to cut 3200 mm length and 2000 mm width and 180 mm thick (126"×78"×7"). The laser guide and sensors provide high accuracy for the machining tolerance. The blade travels along the bridge and is able to turn 90 degree automatically to make square cut. The table tilts 0 - 85 degree hydraulic for easy load of the material. This saw is computer control and able to program for up to 999 repeat cuts automatically and also capable of manual operation. The mechanical body is made of very strong cast iron for stability and long lifetime. All the functions are achieved from the control panel that make it very user friendly. The machine head is with four strong pistons which brings very stable performance. Wireless remote control is included for easy operation. Blade tilts 45 degree for miter cuts is optional.
Specification
| Blade size | 400-600 mm 16"-24" |
| Cut length | 3200 mm 126" |
| Cut width | 2000 mm 78" |
| Cut thick | 180 mm 7" |
| Blade rotate | 0 - 90° |
| Table tilt | 0 - 85° |
| Spindle motor | 15 Kw 20 HP |
| Size (L×W×H) | 5.9×3.5×2.6 m |
| Weight | 6,200 Kg |
About US:
AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable. the products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. the equipments have been successfully exported to world stone market in usa, canada, europe, mid east, egypt, india, etc.
*Our team is always available to answer to your questions and requests about buying stone and concrete splitting machinery. Before and after the purchase, AGA offers precision, power and personalized support, no matter where in the world the requirement is found.
*Please feel free to call or email us for any questions you may have.
