Laser Marking Machine Price Semiconductor Metal Part Cutter Electronic Elements
| Price: |
US $ 3750-5700/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
3HE-MF20W/30W |
| Machine Model: |
3he-Mf20W/30W |
| Laser Power: |
20W |
| Repeat Frequency: |
20-200kHz |
| Max.Line Speed: |
9000mm/S |
| Min.Line Width: |
0.02mm |
| Min.Character: |
0.1mm |
| Power Consume: |
0.8kw |
| Cooling Way: |
Air-Cooling |
| Power Demand: |
220V+(-)10%/50Hz |
| Marking Range: |
≤300mm*300mm(Customizable) |
Product Description
| Model type | 3HE-MF20 | 3HE-MF30 | 3HE-MF50 |
| Laser power | 20W | 30W | 50W |
| Length of laser weave | 1064nm | 1064nm | 1064nm |
| Marking scope(mm) | 150x150 | 175*175-200x200 | 150*150-300*300 |
| Mark depth | 0.4mm | 0.6mm | 1.0mm |
| Repeat frequency | 20-200KHz | 20-200KHz | 20-200KHz |
| Min line width | 0.02mm | 0.02mm | 0.02mm |
| Min character | 0.1mm | 0.1mm | 0.1mm |
| Repeat precision | ±0.002mm | ±0.002mm | ±0.002mm |
| Power consume | 0.8KW | 0.8KW | 1kw |
| Power supply | 220V(±10%)/50Hz | 220V(±10%)/50Hz | 220V(±10%)/50Hz |
| Operating temperature | 10-35°C | 10-35°C | 10-35°C |
the laser 30w,50w for deep marking, engraving and cutting on all kinds of metals)Introduction Fiber laser marking machine uses optical fiber laser to output laser and realizes marking function through high speed scanning galvanometer system. The optical fiber laser marker
features high electro optic conversion efficiency, air cooling, small size, high quality output
beam, high reliability, long service life and energy saving.

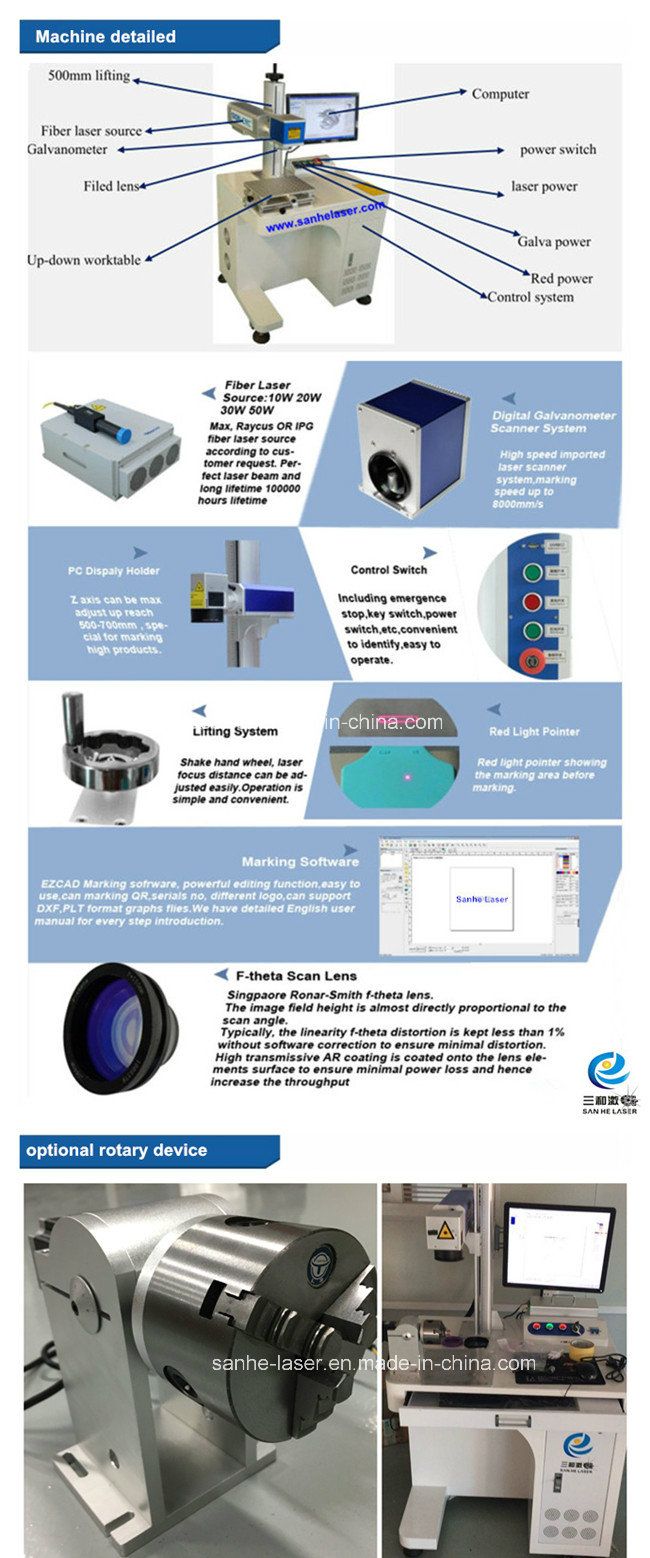

Configuration parametersNO. | Name | Origin | Remark | QTY |
1 | Laser Source | China | 20W ,China Raycus/China Max.long working life,high reliable and good quality beam | 1 |
2 | Scanner | China | Beijing SUNY .Double red light high speed digital scanner, marking effect more perfect,faster speed,high reliability | 1 |
3 | Field lens | Singapore | Wavelength high quality optical component | 1 |
4 | Computer | China | Inteligent integrated industrial personal computer | 1 |
5 | Machine structure | China | Precision machined components | 1 |
6 | Laser control card | China | EZ CAD.The most perfessional static marking software | 1 |
ApplicationThis kind of machine widely used in mobile phone shells , rings , bracelets , watches , mugs , glasses , watches , key , instrumentation , sanitary ware , home appliances , electronic components , integrated circuits , the cell phone button , luggage buckles , cutlery , water faucet , stainless steel products , car accessories , call phone chargers , cables and wires , and medical device industries .Main Features1.Laser power output is stable , and light spot quality is good .
2.Quick marking and cutting speed at 2-3 times that of conventional machines .
3.There is no restriction in operation systems . It is convenient in operation , with fully closed light paths , so it is stable , reliable and free in maintenance with ultra-long service life up to more than 100000 hours .
4.No pollution , no noise , and consumable materials , with power consumption at 5%-10% of consumption by traditional machines .

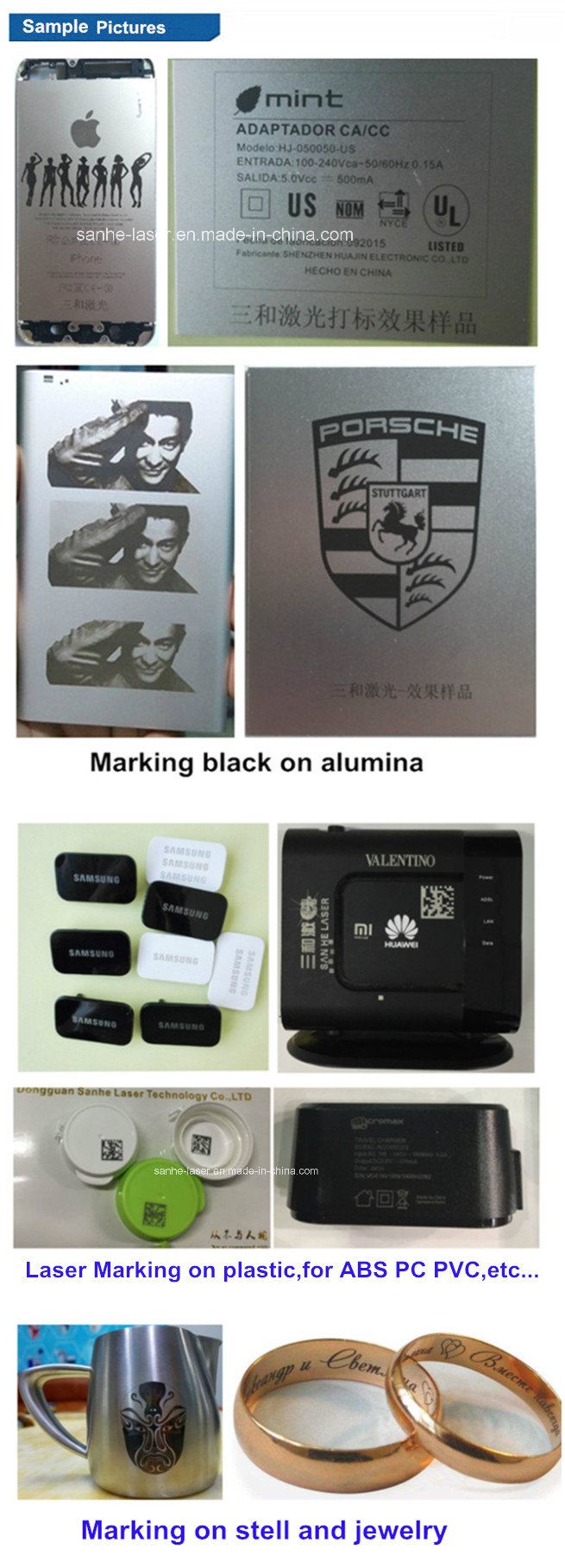

5.ultra high accuracy and fineness , with there solution up to 2540dpi .Applicative Materials| Material | Marking/Engraving |
| Iron | √ |
| Stainless Stell | √ |
| Copper/Brass | √ |
| Gold Jewelry | √ |
| Sliver Jewelry | √ |
| Plastic/PP ABS | √ |
| Aluminum | √ |
PAYMENT1. The TT, Western Union, LC, Cash payment is available.
2. We have the machine in stock. Due to the voltage and mold difference, we need around 7-15 days to send out the machine. We will notice you if there is the special circumstance.DELIVERY TIME1. We can send out the machine within 7-15days after received the first payment.
2. The machine will be ship to you by sea shipping or plane. Please tell us your sea port or air port name so that we could quote you the freight.
3. You can also buy the insurance for the transportation.
4. We can also provide you door to door service, including custom clearance and tracking transportation in your country.WARRANTY1. All our machine have 1 year free warranty, during the warranty time, all the broken parts(not caused by man factor) can be changed free.
2. We can send our engineer go over sea for adjusting the machine and training your worker in your plant.
3. We have 24 hours hot line and email to help you to resolve the problem within 3 hours. FAQQ1.When the machine can't work well, what should I do?A:1. The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon.
2. All our machines have two years' warranty, If there is any problems of machine parts under "normal use", new machine parts will be sent by air for free.
3. Please rest assured that operation CD and manual will be offered along with machine, ensuring you can operate the machine easily.Q2.Are you factory or trading company?A:We are factory with 8 years experience has branch or offices in Thailand,Vietnam,Malaysia,Tianjin, Zhejiang, Jiangsu, Shanghai, Chongqing and Dalian. Also equipment with a comprehensive network of marketing channels for domestic and foreign customers with complete and quick sale service. Q3.Where is your facotry located in? How can I visit there?A: Our factory is located in 3/F, Building B, Lianyi Industrial Park, Wentang Middle Road, Dongcheng District, Dongguan, Guangdong, China.We can pick you up from Shenzhen airport to our factory,You are warmly welcome to visit us!!!Q4.How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality controlling from the very beginning to the end.
1).All raw material we used are environmental-friendly;
2).Skillful workers care every details in handling the producing and packing processes;
3).Quality Control Department specially responsible for quality checking in each process.
and we have CE, ISO9001,SGS certification.
Q5.What is the delivery time?
A:We have standard models in stock,will delivery within 5-7 working days.
For un-standard models, we will delivery within 10-15 working days.
Q6.How long can I expect to get the sample?A: We ensure that the samples could be done within 1-2 days once we receive the sample from your side.Q7: How can I get Machine's spare parts?A:There are two methods. Spare Parts ordered together with the machine, this is the safest way to transport the parts.
The other way is you can inform us when you need to replace the consumables, we will send them to you within 24 working hours. We aim high for the satisfication of the clients, Contract usMiss Carol-Sanhe LaserPhone number:+86 18924354299
