| Prod Model: |
SY-DCB-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter(mm): |
300-800 |
| Segment Size(mm): |
40X3.2X10~40X5.5X10 |
| Welding: |
Laser or Silver Welding |
| Inner Hole: |
16/22.23/25.4/50/60 |
| Type: |
Dimond Saw Blade for Reinforce Concrete |
| Cutting Material: |
Concrete,Brick,Asphalt,Sanstone,etc. |
| Advantage: |
High Quality & Factory Price |
| Support: |
OEM & ODM |
| Supplier: |
Quanzhou Sunny Superhard Tools Co.,Ltd. |
| Manufacturing Experience: |
23years |
Product Description

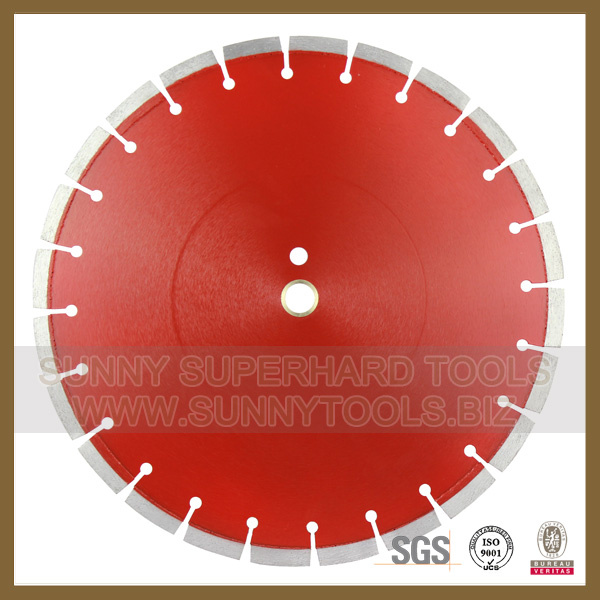

Laser Segment Diamond Saw Blade for Reinforce Concrete
Brief description:
1. Adopt laser or silver welding techniques which bring fast and safety cutting
2. Used for cuting Asphalt, Reinforced Concrete, Concrete and Firebrick etc
3. It can be widely applied.
.
Technical Data:
The specificatiion of Sunny Diamond concrete saw blade are as follow for your reference:
| Diameter | Segment Height (mm) | Bore (mm) |
| 105mm(4") | 8/10 | Standard Height: 8mm | 20.00mm
22.23mm(7/8")
25.40mm(1") |
| 115mm(4.5") | 8/10 |
| 125mm(5") | 8/10 |
| 150mm(6") | 8/10 |
| 180mm(7") | 8/10 |
| 200mm(8") | 8/10 |
| 230mm(9") | 8/10 |
| Other Specifications Are Available Upon Request |
DIA.OF BLADE |
HOLE |
Seg Size |
TEETH NO. |
(mm) |
(mm) |
(mm) |
(pcs) |
300 |
25.4
50
60 |
40x3.2x10 |
21 |
350 |
40x3.2x10 |
24 |
400 |
40x3.6x10 |
28 |
450 |
40x3.8x10 |
32 |
500 |
40x4.0x10 |
36 |
600 |
40x4.5x10 |
42 |
750 |
40x5.0x10 |
46 |
800 |
40x5.5x10 |
50 |
Other Specifications Are Available Upon Request |
Sunny is an ISO, BV and SGS certified company, have 21 years manufacturing experience in diamond tools.
Our Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration rollers, Fickerts, Frankfurt, Cup wheel, Profiling wheel, Polishing pad, Brush etc)
Drilling Tools (Finger bit, Core drill etc)
Welcome to visit our company website: http://www.sunnytools.biz
Looking forward to hearing from you.
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
