| Prod Model: |
HQ400/600/700 |
| Table Tilting: |
0-85 Degree |
| Table Size(L*W): |
3200*2000mm |
| Max Cut Thick: |
230mm |
| Dimention (L*W*H): |
6*5*3.5m |
| Payment: |
T/T |
| Spindle Mortor: |
15/18.5kw |
| Type: |
CNC Cutting Machine |
| Usage: |
Marble |
| Application: |
Stone Industry |
| Source Voltage: |
380V |
| Automation: |
Automatic |
Product Description

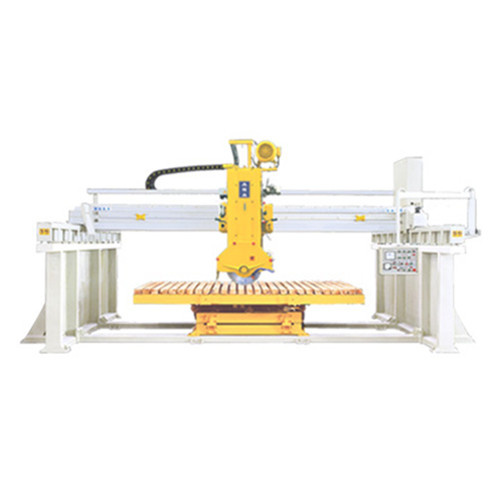

Automatic Stone Bridge Cutter with Blade Tilting 45 Degree
Product No.:HQ400-600-700v
1. High power and easily operation.
2. Good services and warranty.
3. ISO, CE Certification.
Working Video: HQ400600 http://youtu.be/9HcXYJilfO0
HQ700 http://youtu.be/MciWoGjgob0
Details:
Basic info:The bridge saw works by industiral computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel.
It is able to cut 3.2 m length and 2 m width with laser guide sensor for cutting guide.
The table tilts up to 85° for easy load of big slabs and also turns 90/360 degree to change the cutting direction.Features:1. Long bridge structure for cutting big slab.
2. Titling table for easy load of big slab.
3. Automatic cut by program on PLC system.
4. Precise movements on X, Y, Z axis ensuring cutting accuracy +/-0.2mm
5. Electric parts from Japan for stability and long service time.
6. Main parts made of cast iron for heavy duty work and stable performance.Specification:| Model | 400 | 600 | 700 |
| Blade Size | Φ300-Φ450 mm | Φ300-Φ600 mm | Φ300 - Φ700 mm |
| Blade Tilting | N/A | N/A | 0°- 45° |
| Table Size (L×W) | 3200×2000 mm 126"×79" |
| Table Rotation | 0°- 90° / 360° | 0°- 360° |
| Table Tilt | 0°- 85° |
| Max. Cut size | 3200×2000 mm 126"×79" |
| Spindle Motor | 15 Kw 20HP | 15 Kw 20HP | 18.5 Kw 25HP |
| Size (L×W×H) | 6×4.8×2.9 m | 6×4.8×3 m | 6×5.7×3.5 m |
| Weight | 6,300 Kg | 6,500 Kg | 7,500 Kg |
Company Introduction:AGA has been devoting to making machinery for processing and fabrication of marble granite and providing reliable service. The products include bridge saw,block cutter,polishing machine as well as equipments for other construction stones.The equipments have been successfully exported to world stone market in U.S.A.,Canada, Europe, Mid East, Egypt, India,etc.
Product of AGA:
Stone cutting machine, multi blades block cutter, automatic bridge cutting machine, bridge saw, edge cutting machine, edge polishing machine, profile cutting machine, arm polisher machine, splitting machine, pressing machine, stone crusher.
